Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

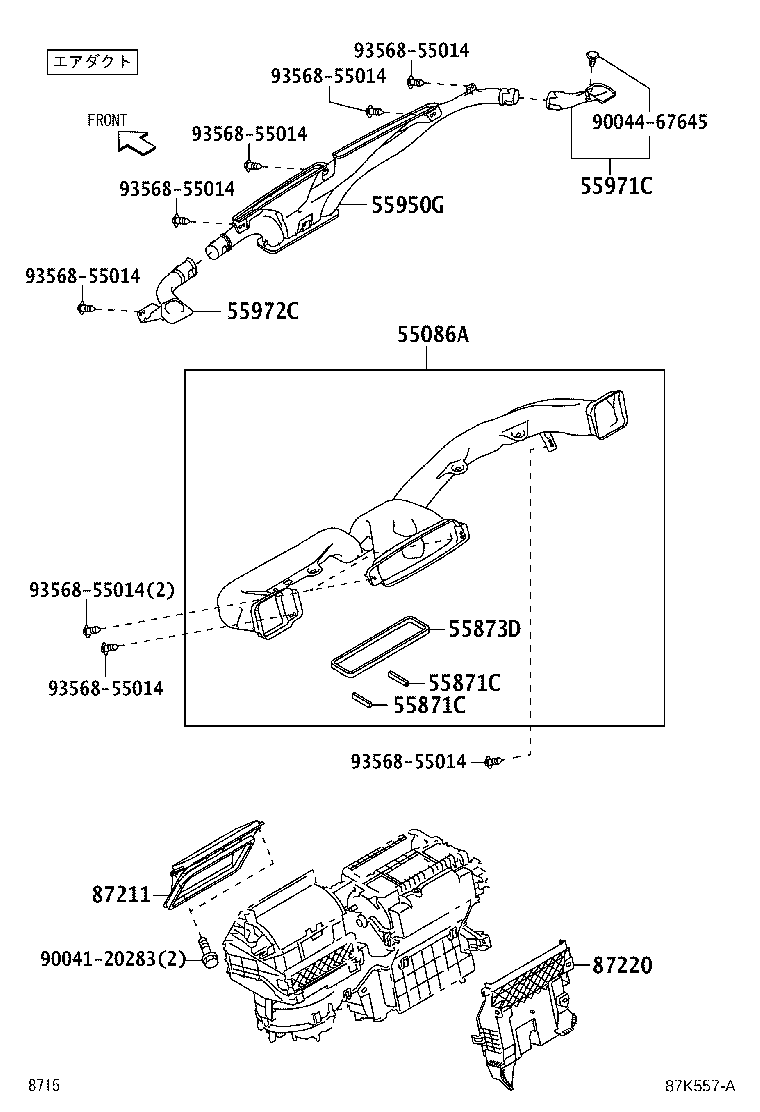

Figure 87K750A 87K750A 2021-12 → — Figure 87K557A 87K557A 2021-12 → — Figure 87K560A 87K560A 2021-12 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871C Seal, Air Duct
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55906D Cable Sub-assy, Heater Control, NO.2
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
81942A Sheet, Heater Control Name, NO.1
87211 Duct, Air, NO.1
87220 Duct Assy, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
