Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

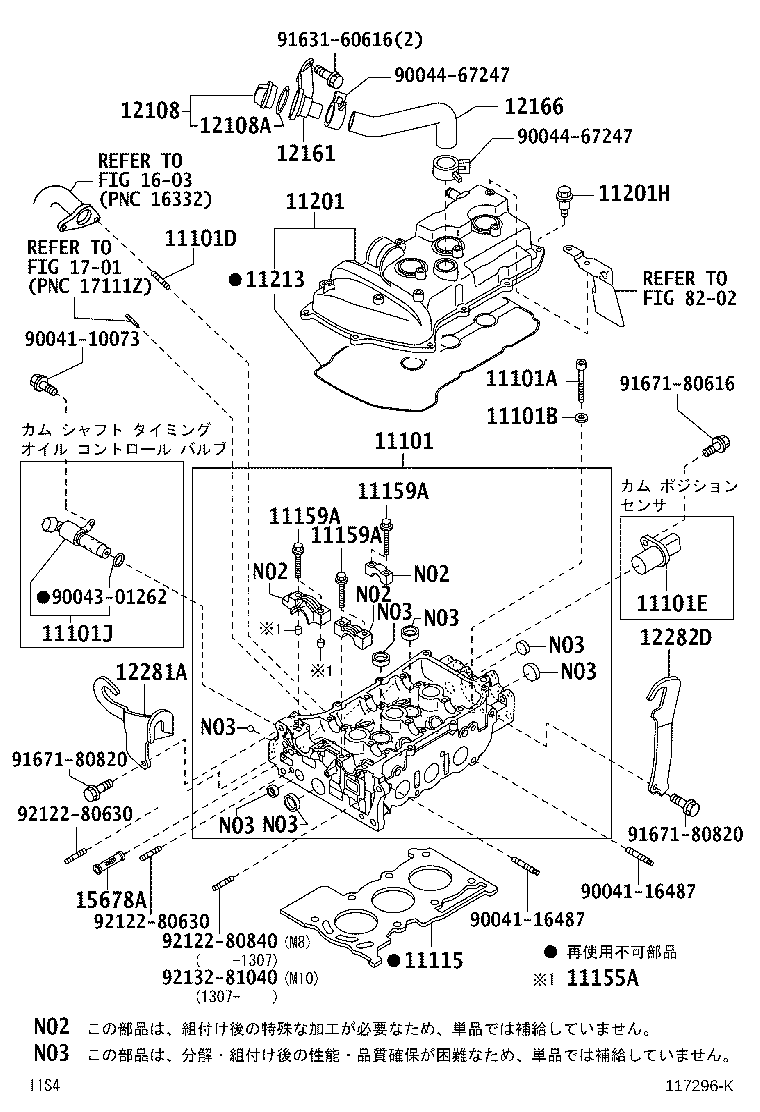

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-B2071 |
Head Sub-assy, Cylinder
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥65,000 | |
| 11101-B2072 |
Head Sub-assy, Cylinder
2013-07 → 2014-07
ended
|
KFVE S201,211 | ¥65,000 | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90041-09258 |
Bolt(FOR CYLINDER HEAD SET)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥370 | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90042-01637 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥110 | |
| 11101D — Bolt, Stud(FOR WATER OUTLET) | ||||
| 90041-26001 |
Bolt, Stud(FOR WATER OUTLET)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥110 | |
| 11101E — Sensor, Cam Position | ||||
| 19311-B2011 |
Sensor, Cam Position
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥3,710 | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-B2030 |
Valve Assy, Camshaft Timing Oil Control
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥7,600 | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-B2033 |
Gasket, Cylinder Head
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥5,900 | |
| 11115-B2034 |
Gasket, Cylinder Head
2013-07 → 2014-09
ended
|
KFVE S201,211 | ¥3,820 | |
| 11155A — Pin, Ring W/Head | ||||
| 90042-53010 |
Pin, Ring W/Head
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥170 | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90041-19911 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥170 | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-B2110 |
Cover Sub-assy, Cylinder Head
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥7,800 | |
| 11201-B2111 |
Cover Sub-assy, Cylinder Head
2013-07 → 2014-07
ended
|
KFVE S201,211 | ¥9,000 | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 91551-80620 |
Bolt(FOR CYLINDER HEAD COVER)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥60 | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-B2050 |
Gasket, Cylinder Head Cover
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥1,650 | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-97201 |
Cap Sub-assy, Oil Filler
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥890 | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-87206 |
Gasket(FOR OIL FILLER CAP)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥170 | |
| 12161 — Tube, Oil Filler | ||||
| 12161-97501 |
Tube, Oil Filler
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥870 | |
| 12166 — Hose, Oil Filler | ||||
| 12166-97201 |
Hose, Oil Filler
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥1,650 | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-B2020 |
Hanger, Engine, NO.1
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥2,270 | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-B2040 |
Hanger, Engine, NO.2
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥2,050 | |
| 15678A — Filter, Oil Control Valve | ||||
| 15678-B2010 |
Filter, Oil Control Valve
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
