Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

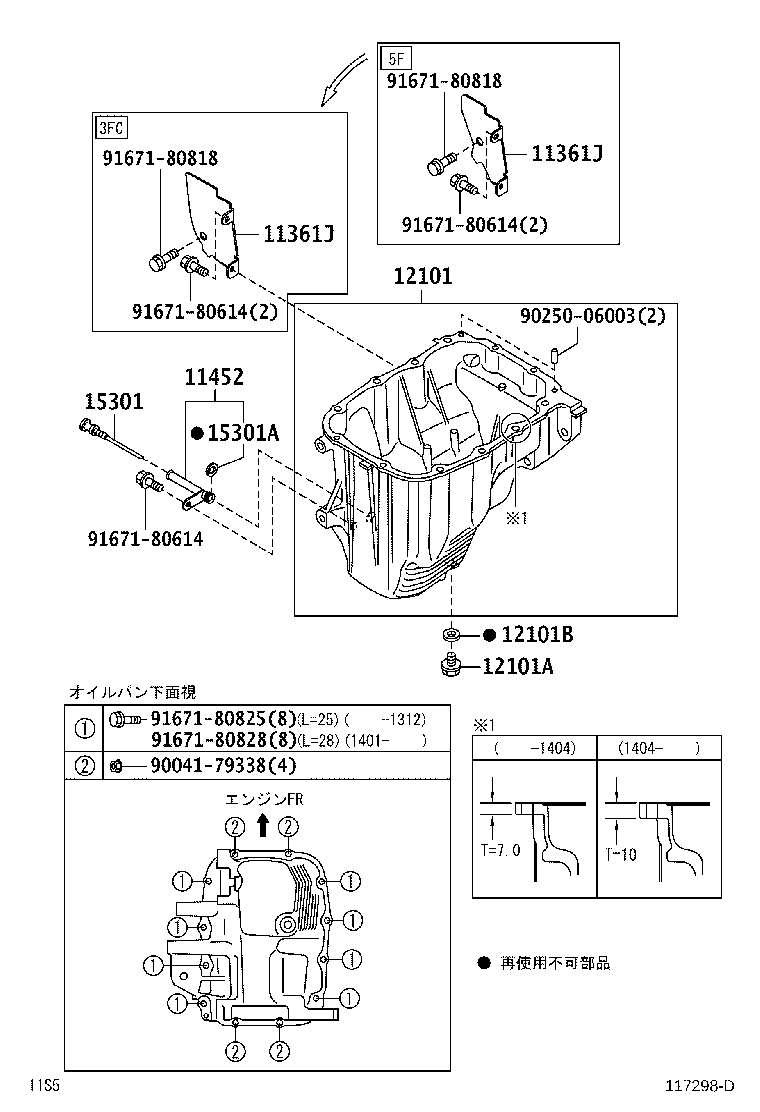

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11361J — Cover, Flywheel Housing Under | ||||
| 11361-B2010 |
Cover, Flywheel Housing Under
2011-12 → 2014-09
ended
|
KFVE S201,211 ATM | ¥920 | |
| 11361-B2020 |
Cover, Flywheel Housing Under
2011-12 → 2014-09
ended
|
KFVE S201,211 MTM | ¥560 | |
| 11452 — Guide, Oil Level Gage | ||||
| 11409-B2030 |
Guide, Oil Level Gage
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥1,200 | |
| 12101 — Pan Sub-assy, Oil | ||||
| 12101-B2031 note |
Pan Sub-assy, Oil
2011-12 → 2014-04
ended
|
KFVE S201,211 | ¥14,800 | |
| 12101-B2032 note |
Pan Sub-assy, Oil
2014-04 → 2014-07
ended
|
KFVE S201,211 | ¥17,200 | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90043-41087 |
Plug(FOR OIL PAN DRAIN)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥260 | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
Gasket(FOR OIL PAN DRAIN PLUG)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥170 | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-B2040 note |
Gage Sub-assy, Oil Level
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥1,090 | |
| 15301A — Ring, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19009 |
Ring, O(FOR OIL LEVEL GAGE)
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
