Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

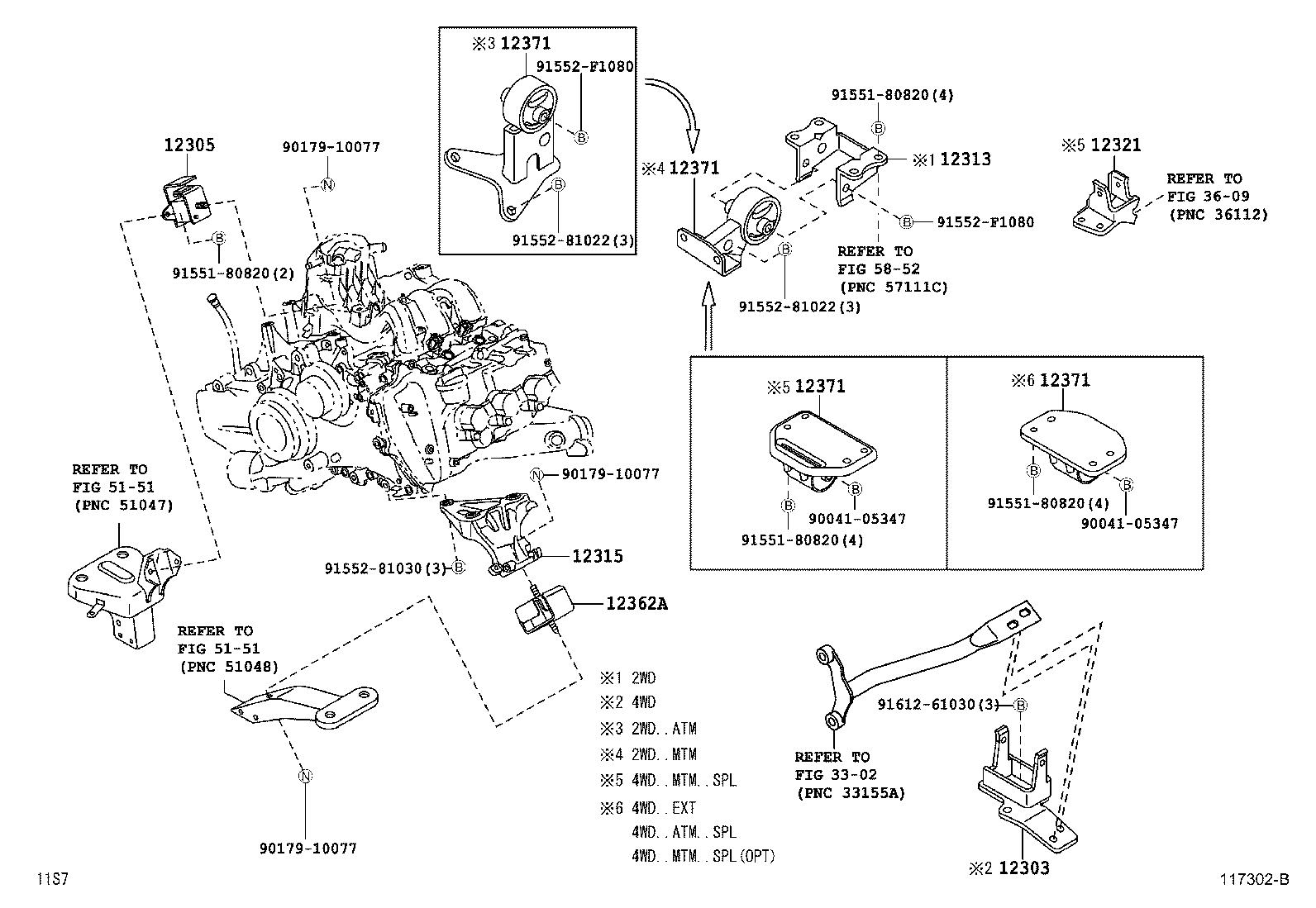

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

14 parts on this figure

Part number	Description	Fitment	Price
12303 — Bracket Sub-assy, Engine Mounting, Rear
12321-B5030	Bracket Sub-assy, Engine Mounting, Rear 2011-12 → 2014-07 ended	KFVE S211 ATM;KFVE S211 +2	¥5,200
12321-B5030 note	Bracket Sub-assy, Engine Mounting, Rear 2011-12 → 2014-07 ended	KFVE S211 MTM SPL	¥5,200
12321-B5030 note	Bracket Sub-assy, Engine Mounting, Rear 2011-12 → 2014-07 ended	KFVE S211 MTM SPL	¥5,200
12305 — Insulator Sub-assy, Engine Mounting, RH
12361-B2010	Insulator Sub-assy, Engine Mounting, RH 2011-12 → —	KFVE S201,211	¥4,480
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-97501	Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) 2011-12 → —	KFVE S201	¥3,610
12315 — Bracket, Engine Mounting, Front NO.1 LH
12315-B2080	Bracket, Engine Mounting, Front NO.1 LH 2011-12 → —	KFVE S201,211	¥4,430
12321 — Bracket, Engine Mounting, Rear, NO.1
12321-B5040	Bracket, Engine Mounting, Rear, NO.1 2011-12 → 2014-07 ended	KFVE S211 MTM SPL	¥2,990
12362A — Insulator, Engine Mounting, Front LH
12362-B2070	Insulator, Engine Mounting, Front LH 2011-12 → 2013-04 ended	KFVE S201,211	¥3,970
12362-B2071	Insulator, Engine Mounting, Front LH 2013-05 → —	KFVE S201,211	¥4,790
12371 — Insulator, Engine Mounting, Rear NO.1
12371-B5010	Insulator, Engine Mounting, Rear NO.1 2011-12 → —	KFVE S201 MTM	¥7,400
12371-B5020	Insulator, Engine Mounting, Rear NO.1 2011-12 → —	KFVE S201 ATM	¥7,100
12371-B5030	Insulator, Engine Mounting, Rear NO.1 2011-12 → —	KFVE S211 MTM SPL	¥5,900
12371-B5040	Insulator, Engine Mounting, Rear NO.1 2011-12 → —	KFVE S211 ATM;KFVE S211 +2	¥5,100
12371-B5040 note	Insulator, Engine Mounting, Rear NO.1 2011-12 → —	KFVE S211 MTM SPL	¥5,100

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
