Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

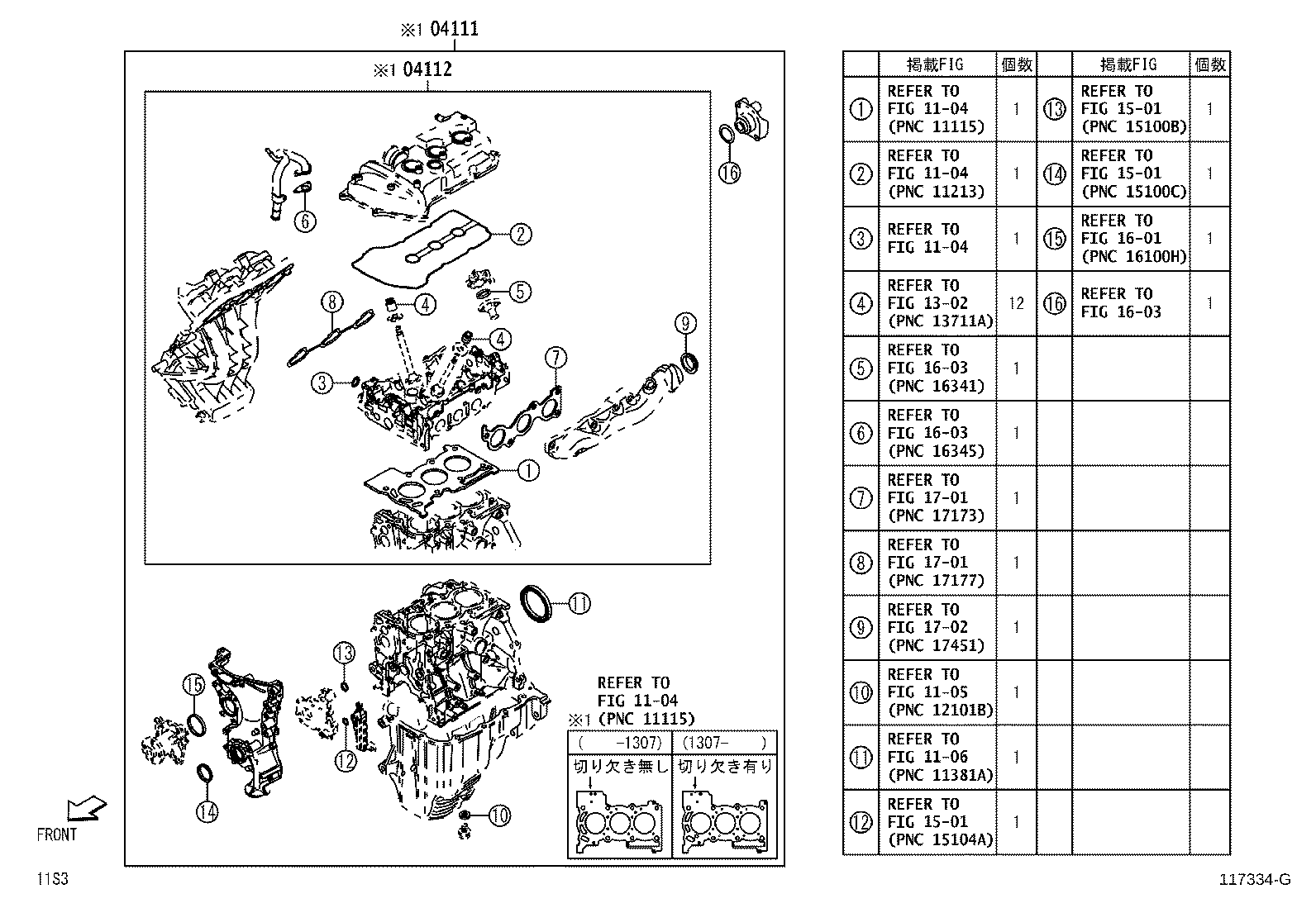

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04111 — Gasket Kit, Engine Overhaul | ||||
| 04111-B5114 |
Gasket Kit, Engine Overhaul
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥14,900 | |
| 04111-B5121 |
Gasket Kit, Engine Overhaul
2013-07 → —
|
KFVE S201,211 | ¥15,500 | |
| 04112 — Gasket Kit, Engine Valve Grind | ||||
| 04112-B5011 |
Gasket Kit, Engine Valve Grind
2013-07 → —
|
KFVE S201,211 | ¥12,800 | |
| 04112-B5114 |
Gasket Kit, Engine Valve Grind
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥14,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
