Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

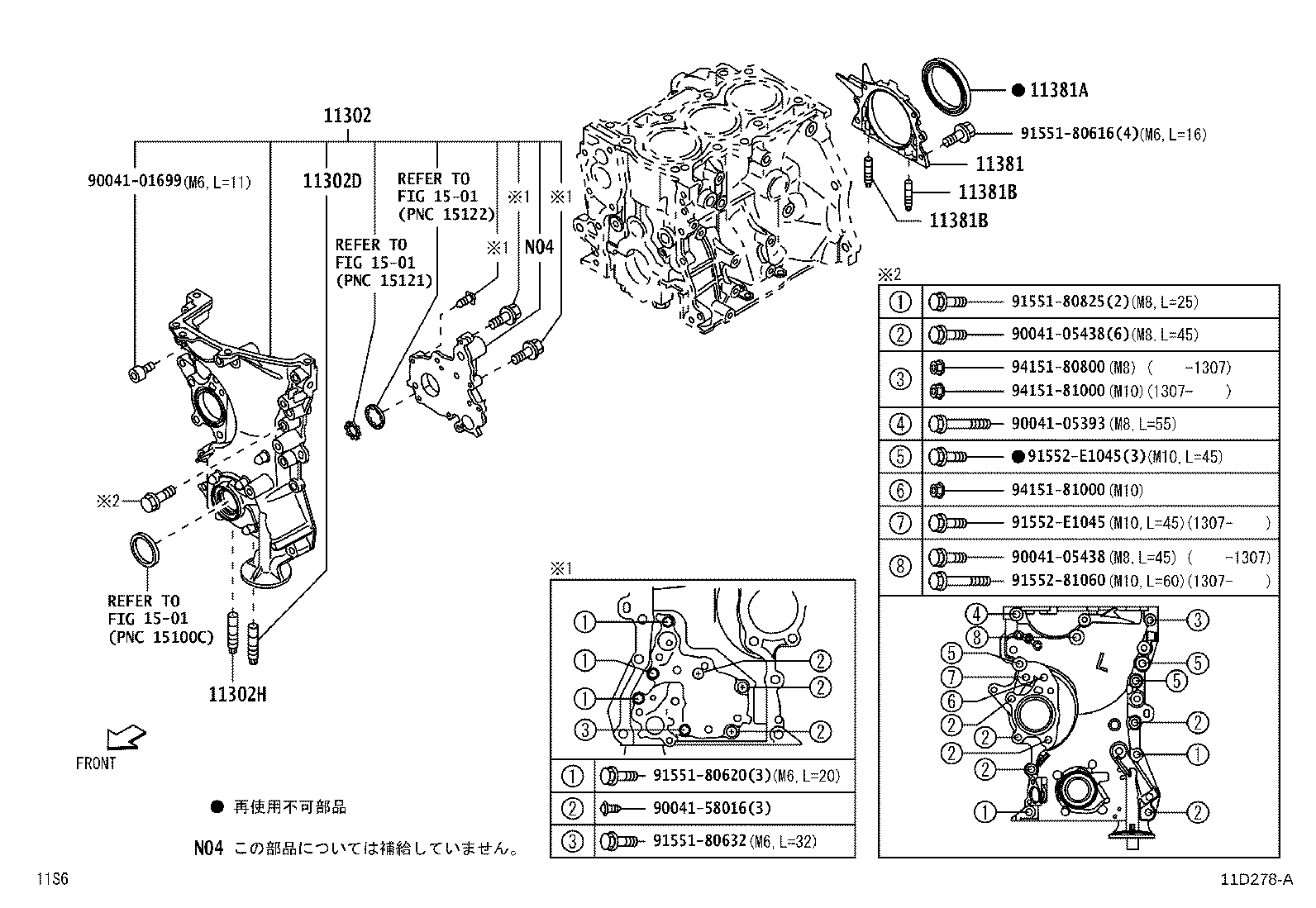

Exploded illustration 11D278A 9155180616 — not listed in this catalogue 11381 — RETAINER, ENGINE REAR OIL SEAL (1 parts) 9004158016 — not listed in this catalogue 9155180632 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (1 parts) 9155180825 — not listed in this catalogue 9004105438 — not listed in this catalogue 9004105393 — not listed in this catalogue 9004105438 — not listed in this catalogue 91552E1045 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415181000 — not listed in this catalogue 9415181000 — not listed in this catalogue 9155180620 — not listed in this catalogue 91552E1045 — not listed in this catalogue 9155281060 — not listed in this catalogue 11302H — BOLT, STUD(FOR TIMING GEAR COVER) (2 parts) 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (2 parts) 9004101699 — not listed in this catalogue 1501 — not listed in this catalogue 1501 — not listed in this catalogue 11302D — BOLT, STUD(FOR TIMING GEAR COVER) (2 parts) 1501 — not listed in this catalogue 11381B — BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) (2 parts) 11381B — BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) (2 parts)
11D278A · 7 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
10 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11310-B2083 note Cover Sub-assy, Timing Chain OR Belt
2011-12 → 2013-07 ended
KFVE S201,211 ¥18,800
11310-B2084 note Cover Sub-assy, Timing Chain OR Belt
2013-07 → 2014-07 ended
KFVE S201,211 ¥16,300
11302D — Bolt, Stud(FOR TIMING GEAR COVER)
90041-26002 Bolt, Stud(FOR TIMING GEAR COVER)
2011-12 → 2014-01 ended
KFVE S201,211 ¥110
90041-26005 Bolt, Stud(FOR TIMING GEAR COVER)
2014-01 → 2014-07 ended
KFVE S201,211 ¥110
11302H — Bolt, Stud(FOR TIMING GEAR COVER)
90041-26001 Bolt, Stud(FOR TIMING GEAR COVER)
2011-12 → 2014-01 ended
KFVE S201,211 ¥110
90041-26006 Bolt, Stud(FOR TIMING GEAR COVER)
2014-01 → 2014-07 ended
KFVE S201,211 ¥110
11381 — Retainer, Engine Rear Oil Seal
11381-B2030 Retainer, Engine Rear Oil Seal
2011-12 → —
KFVE S201,211 ¥2,000
11381A — Seal, Engine Rear Oil
90043-11364 Seal, Engine Rear Oil
2011-12 → —
KFVE S201,211 ¥960
11381B — Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
90041-26001 Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
2011-12 → 2014-01 ended
KFVE S201,211 ¥110
90041-26006 Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
2014-01 → 2014-07 ended
KFVE S201,211 ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
