Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

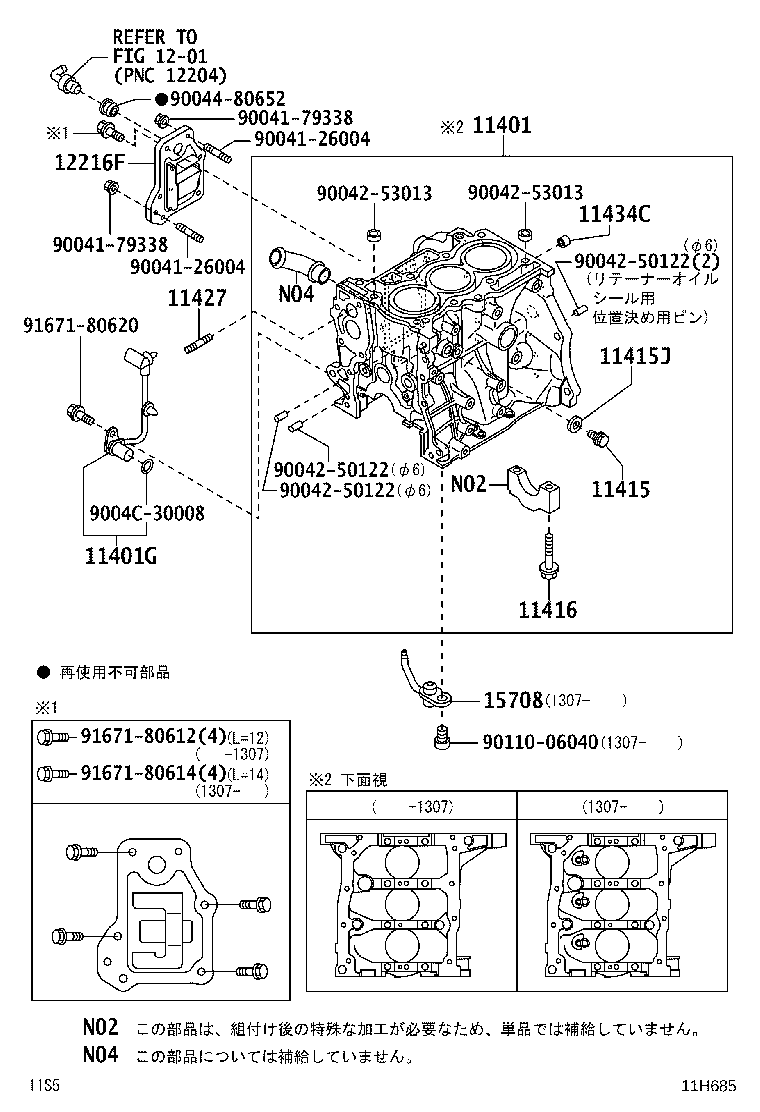

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11401 — Block Sub-assy, Cylinder | ||||
| 11401-B2173 |
Block Sub-assy, Cylinder
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥74,000 | |
| 11401-B2174 |
Block Sub-assy, Cylinder
2013-07 → 2014-07
ended
|
KFVE S201,211 | ¥74,000 | |
| 11401G — Sensor, Crank Position | ||||
| 19311-B2021 |
Sensor, Crank Position
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥4,380 | |
| 11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) | ||||
| 90043-41088 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥260 | |
| 11415J — Gasket(FOR DRAIN COCK) | ||||
| 90044-30279 |
Gasket(FOR DRAIN COCK)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥210 | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90041-05368 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥320 | |
| 11427 — Bolt, Stud(FOR TIMING CHAIN COVER SET) | ||||
| 90041-16498 note |
Bolt, Stud(FOR TIMING CHAIN COVER SET)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥310 | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| 90042-50207 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥110 | |
| 12216F — Plate, Ventilation Baffle | ||||
| 12216-B2020 |
Plate, Ventilation Baffle
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥1,200 | |
| 12216-B2021 |
Plate, Ventilation Baffle
2013-07 → 2014-09
ended
|
KFVE S201,211 | ¥1,260 | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-B2010 |
Nozzle Sub-assy, Oil, NO.1
2013-07 → 2014-09
ended
|
KFVE S201,211 | ¥920 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
