Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

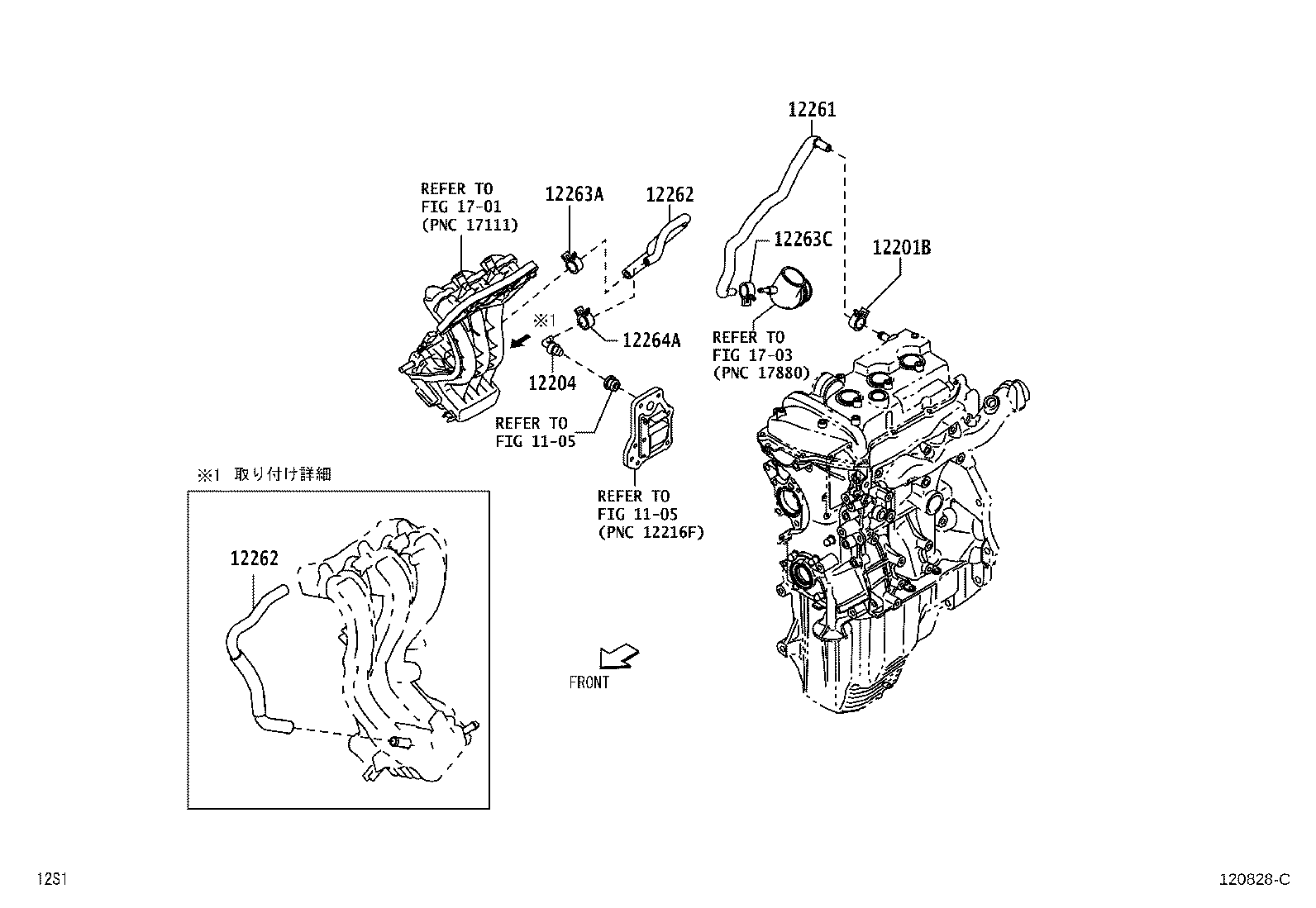

Exploded illustration 120828C 12204 — VALVE SUB-ASSY, VENTILATION (1 parts) 12262 — HOSE, VENTILATION, NO.2 (1 parts) 12263A — CLIP(FOR VENTILATION HOSE) (1 parts) 12264A — CLIP(FOR VENTILATION HOSE) (1 parts) 1105 — not listed in this catalogue 1703 — not listed in this catalogue 12261 — HOSE, VENTILATION (1 parts) 12263C — CLIP(FOR VENTILATION HOSE) (1 parts) 12201B — CLIP(FOR VENTILATION TUBE HOSE) (1 parts) 12262 — HOSE, VENTILATION, NO.2 (1 parts) 1701 — not listed in this catalogue 1105 — not listed in this catalogue
120828C · 8 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
7 parts on this figure
Part number Description Fitment Price
12201B — Clip(FOR VENTILATION TUBE HOSE)
90044-67240 Clip(FOR VENTILATION TUBE HOSE)
2011-12 → 2014-07 ended
KFVE S201,211 ¥530
12204 — Valve Sub-assy, Ventilation
12204-B2020 Valve Sub-assy, Ventilation
2011-12 → 2014-07 ended
KFVE S201,211 ¥940
12261 — Hose, Ventilation
12261-B2090 Hose, Ventilation
2011-12 → —
KFVE S201,211 ¥3,090
12262 — Hose, Ventilation, NO.2
12261-B2081 Hose, Ventilation, NO.2
2011-12 → —
KFVE S201,211 ¥1,950
12263A — Clip(FOR VENTILATION HOSE)
96137-41901 Clip(FOR VENTILATION HOSE)
2011-12 → —
KFVE S201,211 ¥160
12263C — Clip(FOR VENTILATION HOSE)
90044-66036 Clip(FOR VENTILATION HOSE)
2011-12 → 2014-07 ended
KFVE S201,211 ¥250
12264A — Clip(FOR VENTILATION HOSE)
90044-67314 Clip(FOR VENTILATION HOSE)
2011-12 → —
KFVE S201,211 ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
