Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

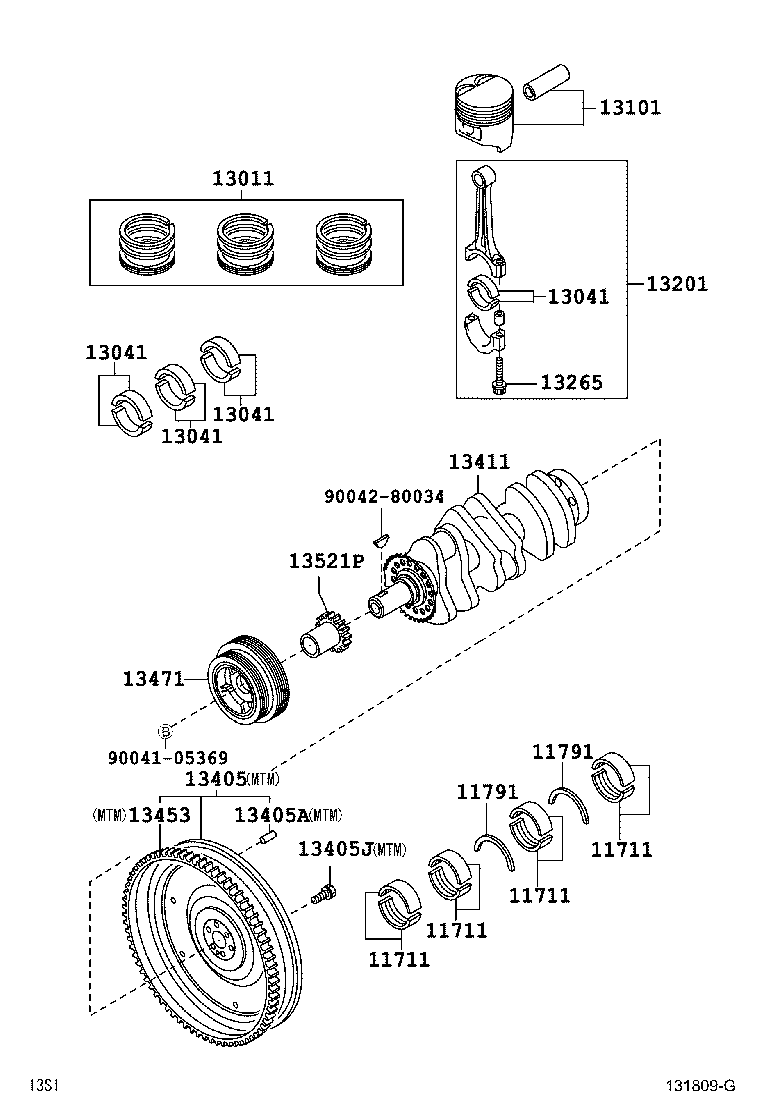

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-B2011-02 note |
Bearing, Crankshaft
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥2,010 | |
| 11701-B2011-03 note |
Bearing, Crankshaft
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥2,010 | |
| 11701-B2011-04 note |
Bearing, Crankshaft
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥2,010 | |
| 11701-B2011-05 note |
Bearing, Crankshaft
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥2,010 | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-B2010 note |
Washer, Crankshaft Thrust, Upper
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥690 | |
| 13011 — Ring Set, Piston | ||||
| 13011-B2041 note |
Ring Set, Piston
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥8,400 | |
| 13011-B2043 note |
Ring Set, Piston
2013-07 → 2014-09
ended
|
KFVE S201,211 | ¥9,800 | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-B2010-01 note |
Bearing, Connecting Rod
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥1,470 | |
| 13041-B2010-02 note |
Bearing, Connecting Rod
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥1,470 | |
| 13041-B2010-03 note |
Bearing, Connecting Rod
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥1,470 | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-B2090 note |
Piston Sub-assy, W/Pin
2011-12 → 2013-07
ended
|
KFVE S201,211 | ¥4,070 | |
| 13101-B2091 note |
Piston Sub-assy, W/Pin
2013-07 → 2014-09
ended
|
KFVE S201,211 | ¥5,800 | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-B9060 |
Rod Sub-assy, Connecting
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥7,400 | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-B9020 |
Bolt, Connecting Rod
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥250 | |
| 13405 — Flywheel Sub-assy | ||||
| 13405-B2040 |
Flywheel Sub-assy
2011-12 → 2014-09
ended
|
KFVE S201,211 MTM | ¥11,400 | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90042-50152 note |
Pin, Straight(FOR FLYWHEEL)
2011-12 → 2014-09
ended
|
KFVE S201,211 MTM | ¥140 | |
| 13405J — Bolt(FOR FLYWHEEL) | ||||
| 90048-01037 note |
Bolt(FOR FLYWHEEL)
2011-12 → 2014-07
ended
|
KFVE S201,211 MTM | ¥200 | |
| 13411 — Crankshaft | ||||
| 13401-B2010 |
Crankshaft
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥42,600 | |
| 13453 — Gear, Flywheel Ring | ||||
| 13453-B2050 |
Gear, Flywheel Ring
2011-12 → 2014-09
ended
|
KFVE S201,211 MTM | ¥7,300 | |
| 13471 — Pulley, Crankshaft | ||||
| 13470-B2020 |
Pulley, Crankshaft
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥13,300 | |
| 13521P — Pulley, Crankshaft Timing | ||||
| 13521-B2010 |
Pulley, Crankshaft Timing
2011-12 → 2014-09
ended
|
KFVE S201,211 | ¥1,630 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
