Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

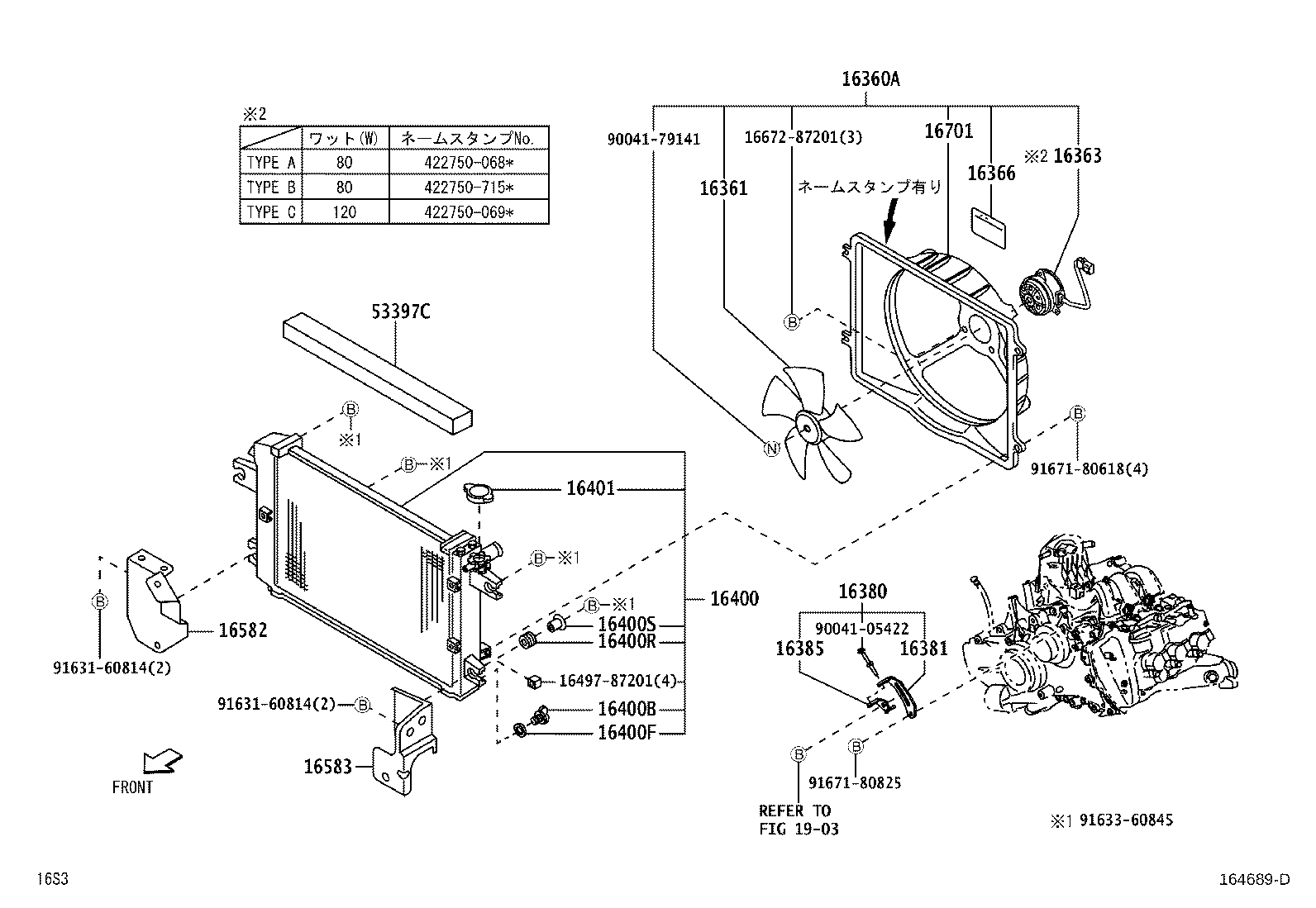

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

38 parts on this figure

Part number	Description	Fitment	Price
16360A — Fan Assy, W/Motor
16360-B5012 note	Fan Assy, W/Motor 2011-12 → 2014-07 ended	KFVE S201 MTM;KFVE S211 +7	¥32,600
16360-B5021 note	Fan Assy, W/Motor 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥37,500
16360-B5021 note	Fan Assy, W/Motor 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥37,500
16360-B5021 note	Fan Assy, W/Motor 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥37,500
16360-B5021	Fan Assy, W/Motor 2011-12 → 2014-07 ended	KFVE S201,211 ATM EXT	¥37,500
16360-B5021 note	Fan Assy, W/Motor 2013-04 → 2014-07 ended	KFVE S201,211 ATM SPL	¥37,500
16360-B5021 note	Fan Assy, W/Motor 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥37,500
16361 — Fan
16361-B1070 note	Fan 2011-12 → 2014-07 ended	KFVE S201 MTM;KFVE S211 +7	¥2,730
16690-97202 note	Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥3,510
16690-97202 note	Fan 2013-04 → 2014-07 ended	KFVE S201,211 ATM SPL	¥3,510
16690-97202	Fan 2011-12 → 2014-07 ended	KFVE S201,211 ATM EXT	¥3,510
16690-97202 note	Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥3,510
16690-97202 note	Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥3,510
16690-97202 note	Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥3,510
16363 — Motor, Cooling Fan
16363-B5040 note	Motor, Cooling Fan 2011-12 → 2014-07 ended	KFVE S201 MTM;KFVE S211 +7	¥14,300
16680-97507 note	Motor, Cooling Fan 2011-12 → 2014-07 ended	KFVE S201,211 ATM EXT	¥22,300
16680-97507 note	Motor, Cooling Fan 2013-04 → 2014-07 ended	KFVE S201,211 ATM SPL	¥22,300
16680-97507 note	Motor, Cooling Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥22,300
16680-97507 note	Motor, Cooling Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥22,300
16680-97507 note	Motor, Cooling Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥22,300
16680-97507 note	Motor, Cooling Fan 2011-12 → 2013-04 ended	KFVE S201,211 ATM SPL	¥22,300
16366 — Label, Radiator Caution
16366-87502	Label, Radiator Caution 2011-12 → 2014-07 ended	KFVE S201,211	¥110
16380 — Bracket Assy, Fan
16380-B2060	Bracket Assy, Fan 2011-12 → 2014-09 ended	KFVE S201,211	¥1,610
16381 — Bar, Fan Belt Adjusting
16381-B2060	Bar, Fan Belt Adjusting 2011-12 → 2014-09 ended	KFVE S201,211	¥700
16385 — Slider, Fan Belt Adjusting
16385-B2060	Slider, Fan Belt Adjusting 2011-12 → 2014-09 ended	KFVE S201,211	¥700
16400 — Radiator Assy
16400-B5030	Radiator Assy 2011-12 → 2012-05 ended	KFVE S201,211 ATM	¥29,200
16400-B5031	Radiator Assy 2012-06 → 2014-07 ended	KFVE S201,211 ATM	¥30,700
16400-B5040	Radiator Assy 2011-12 → 2012-05 ended	KFVE S201,211 MTM	¥23,200
16400-B5041	Radiator Assy 2012-06 → 2014-07 ended	KFVE S201,211 MTM	¥24,400
16400B — Plug, Radiator Drain Cock
16185-87504	Plug, Radiator Drain Cock 2011-12 → 2014-09 ended	KFVE S201,211	¥790
16400F — Packing(FOR RADIATOR DRAIN COCK)
16418-87503	Packing(FOR RADIATOR DRAIN COCK) 2011-12 → 2014-09 ended	KFVE S201,211	¥160
16400R — Bushing(FOR RADIATOR)
16444-87501	Bushing(FOR RADIATOR) 2011-12 → 2014-09 ended	KFVE S201,211	¥580
16400S — Collar(FOR RADIATOR)
16445-87501	Collar(FOR RADIATOR) 2011-12 → 2014-09 ended	KFVE S201,211	¥580
16401 — Cap Sub-assy, Radiator
16401-B5070	Cap Sub-assy, Radiator 2011-12 → 2014-09 ended	KFVE S201,211	¥770
16582 — Bracket, Radiator, NO.1
16582-97501	Bracket, Radiator, NO.1 2011-12 → 2014-09 ended	KFVE S201,211	¥1,650
16583 — Bracket, Radiator, NO.2
16583-B5010	Bracket, Radiator, NO.2 2011-12 → 2014-09 ended	KFVE S201,211	¥1,570
16701 — Shroud Sub-assy, Fan
16700-97510 note	Shroud Sub-assy, Fan 2011-12 → 2014-07 ended	KFVE S201,211	¥6,800
53397C — Seal, Radiator, Upper
53397-B5010	Seal, Radiator, Upper 2011-12 → 2014-09 ended	S201,211	¥530

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
