Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

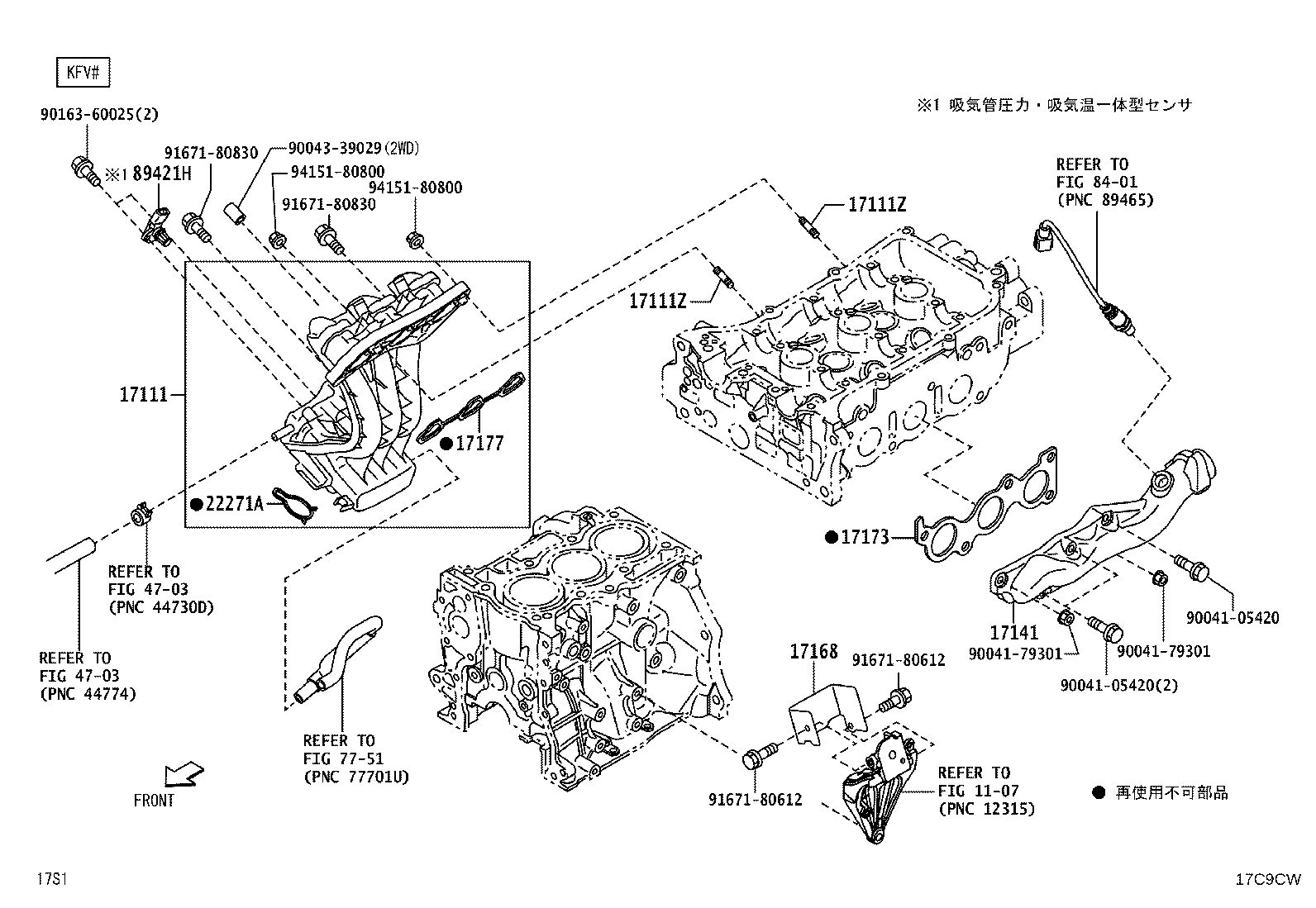

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

9 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17120-B2050	Manifold, Intake 2011-12 → 2014-07 ended	KFVE S201,211	¥19,500
17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90041-26003	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 2011-12 → 2014-07 ended	KFVE S201,211	¥190
17141 — Manifold, Exhaust
17141-B2040	Manifold, Exhaust 2011-12 → —	KFVE S201,211	¥13,200
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-B2010	Insulator, Exhaust Manifold Heat, NO.2 2011-12 → —	KFVE S201,211	¥1,090
17173 — Gasket, Exhaust Manifold TO Head
17173-B2021	Gasket, Exhaust Manifold TO Head 2011-12 → —	KFVE S201,211	¥870
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-B2010	Gasket, Intake Manifold TO Head, NO.1 2011-12 → —	KFVE S201,211	¥540
22271A — Gasket, Throttle Body
22271-97501	Gasket, Throttle Body 2011-12 → 2014-07 ended	KFVE S201,211	¥500
89421H — Sensor, Vacuum
89421-B2010	Sensor, Vacuum 2011-12 → 2013-06 ended	S201,211	¥5,600
89421-B2040	Sensor, Vacuum 2013-07 → —	S201,211	¥5,900

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
