Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

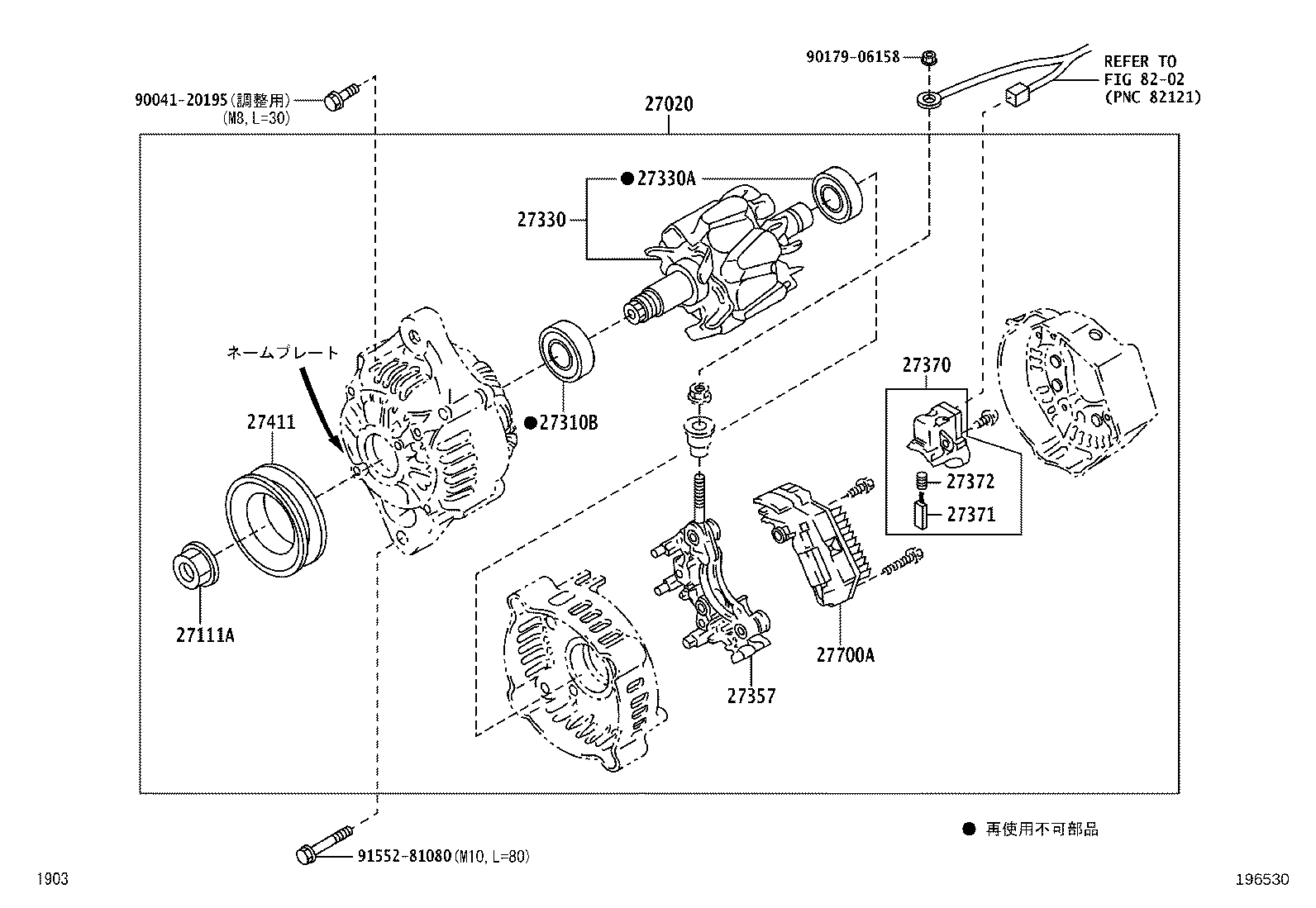

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-B2021 note |
Alternator Assy
2011-12 → 2014-07
ended
|
KFVE S201,211 | ¥39,300 | |
| 27111A — Nut, Alternator | ||||
| 90099-05171 |
Nut, Alternator
2011-12 → 2014-07
ended
|
KFVE S201,211 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 9004C-37006 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2011-12 → —
|
KFVE S201,211 | ¥1,650 | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-97203 |
Rotor Assy, Alternator
2011-12 → —
|
KFVE S201,211 | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 27791-87701 |
Bearing(FOR ALTERNATOR ROTOR)
2011-12 → —
|
KFVE S201,211 | — | |
| 27357 — Holder, Alternator, W/Rectifier | ||||
| 27357-97501 |
Holder, Alternator, W/Rectifier
2011-12 → —
|
KFVE S201,211 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-87708 |
Holder Assy, Alternator Brush
2011-12 → —
|
KFVE S201,211 | — | |
| 27371 — Brush, Alternator | ||||
| 27371-87501 |
Brush, Alternator
2011-12 → —
|
KFVE S201,211 | — | |
| 27372 — Spring, Alternator Brush | ||||
| 27372-87501 |
Spring, Alternator Brush
2011-12 → —
|
KFVE S201,211 | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-87710 |
Pulley, Alternator
2011-12 → —
|
KFVE S201,211 | — | |
| 27700A — Regulator Assy, Generator | ||||
| 27700-B2010 |
Regulator Assy, Generator
2011-12 → —
|
KFVE S201,211 | ¥18,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
