Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

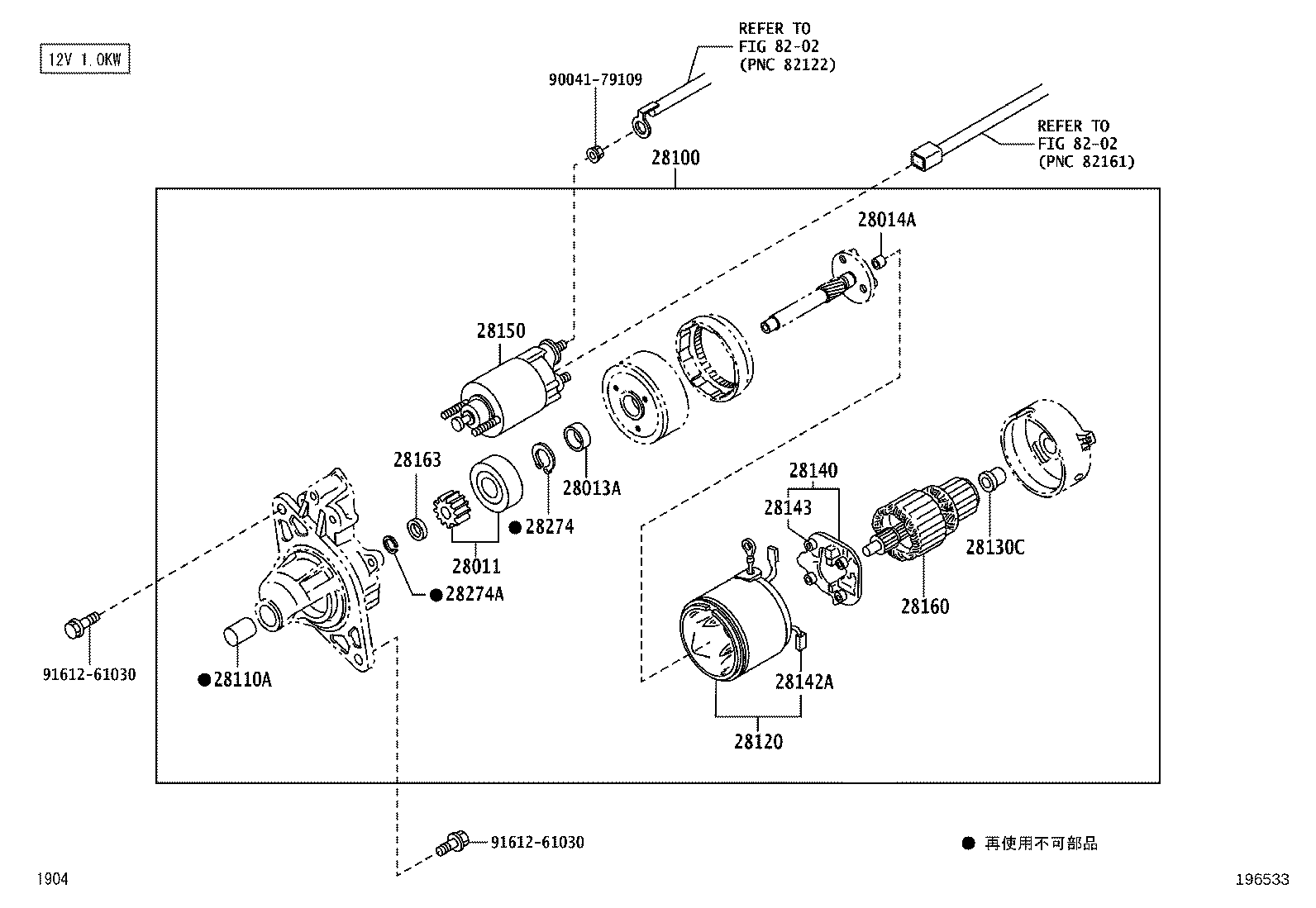

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

31 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-87208	Clutch Sub-assy, Starter 2011-12 → 2014-07 ended	KFVE S201,211 ATM	¥5,900
28011-87213 note	Clutch Sub-assy, Starter 2011-12 → 2014-07 ended	KFVE S201,211 ATM	¥7,900
28011-97502	Clutch Sub-assy, Starter 2011-12 → 2014-07 ended	KFVE S201,211 MTM	¥5,900
28013A — Bearing, Starter Center & Shock Absorber, NO.2
90099-10181 note	Bearing, Starter Center & Shock Absorber, NO.2 2011-12 → —	KFVE S201,211 ATM	¥0
28014A — Bush OR Bearing, Planet Carrier Shaft
90099-10180 note	Bush OR Bearing, Planet Carrier Shaft 2011-12 → —	KFVE S201,211 ATM	—
28100 — Starter Assy
28100-87544 note	Starter Assy 2011-12 → —	KFVE S201,211 ATM	¥42,500
28100-87547 note	Starter Assy 2011-12 → —	KFVE S201,211 ATM	¥32,100
28100-B2150 note	Starter Assy 2011-12 → —	KFVE S201,211 MTM	¥32,100
28100-B2160 note	Starter Assy 2011-12 → —	KFVE S201,211 MTM	¥37,200
28110A — Bearing(FOR STARTER HOUSING)
28271-87501	Bearing(FOR STARTER HOUSING) 2011-12 → —	KFVE S201,211 MTM	¥110
28271-87502	Bearing(FOR STARTER HOUSING) 2011-12 → —	KFVE S201,211 ATM	—
28277-87201 note	Bearing(FOR STARTER HOUSING) 2011-12 → —	KFVE S201,211	—
28120 — Yoke Assy, Starter
28120-87507	Yoke Assy, Starter 2011-12 → —	KFVE S201,211	—
28120-97201 note	Yoke Assy, Starter 2011-12 → —	KFVE S201,211 ATM	—
28130C — Bearing, Starter Flange
28271-87502	Bearing, Starter Flange 2011-12 → —	KFVE S201,211	—
28277-87201 note	Bearing, Starter Flange 2011-12 → —	KFVE S201,211 MTM	—
90099-10183 note	Bearing, Starter Flange 2011-12 → —	KFVE S201,211 ATM	—
28140 — Holder Assy, Starter Brush
28140-87203 note	Holder Assy, Starter Brush 2011-12 → —	KFVE S201,211 ATM	¥1,690
28149-87501	Holder Assy, Starter Brush 2011-12 → —	KFVE S201,211	¥1,930
28142A — Starter Kit
28142-87204 note	Starter Kit 2011-12 → 2014-07 ended	KFVE S201,211 ATM	¥280
28142-87504 note	Starter Kit 2011-12 → 2014-07 ended	KFVE S201,211	¥390
28143 — Spring, Starter Brush
28143-10020	Spring, Starter Brush 2011-12 → —	KFVE S201,211	—
28143-87202 note	Spring, Starter Brush 2011-12 → —	KFVE S201,211 ATM	—
28150 — Switch Assy, Magnet Starter
28150-87536	Switch Assy, Magnet Starter 2011-12 → —	KFVE S201,211	¥8,300
28160 — Armature Assy, Starter
28160-87208 note	Armature Assy, Starter 2011-12 → —	KFVE S201,211 ATM	¥12,400
28160-87503	Armature Assy, Starter 2011-12 → —	KFVE S201,211 ATM	¥14,200
28160-97201	Armature Assy, Starter 2011-12 → —	KFVE S201,211 MTM	¥14,200
28163 — Nut OR Collar, Pinion Stop, Starter
28142-87505	Nut OR Collar, Pinion Stop, Starter 2011-12 → —	KFVE S201,211	¥1,150
28163-87202 note	Nut OR Collar, Pinion Stop, Starter 2011-12 → —	KFVE S201,211 ATM	—
28274 — Snap Ring, Starter, NO.1
90096-90030 note	Snap Ring, Starter, NO.1 2011-12 → 2014-07 ended	KFVE S201,211 ATM	—
28274A — Snap Ring, Starter, NO.2
28274-87503 note	Snap Ring, Starter, NO.2 2011-12 → 2014-07 ended	KFVE S201,211 ATM	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
