Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

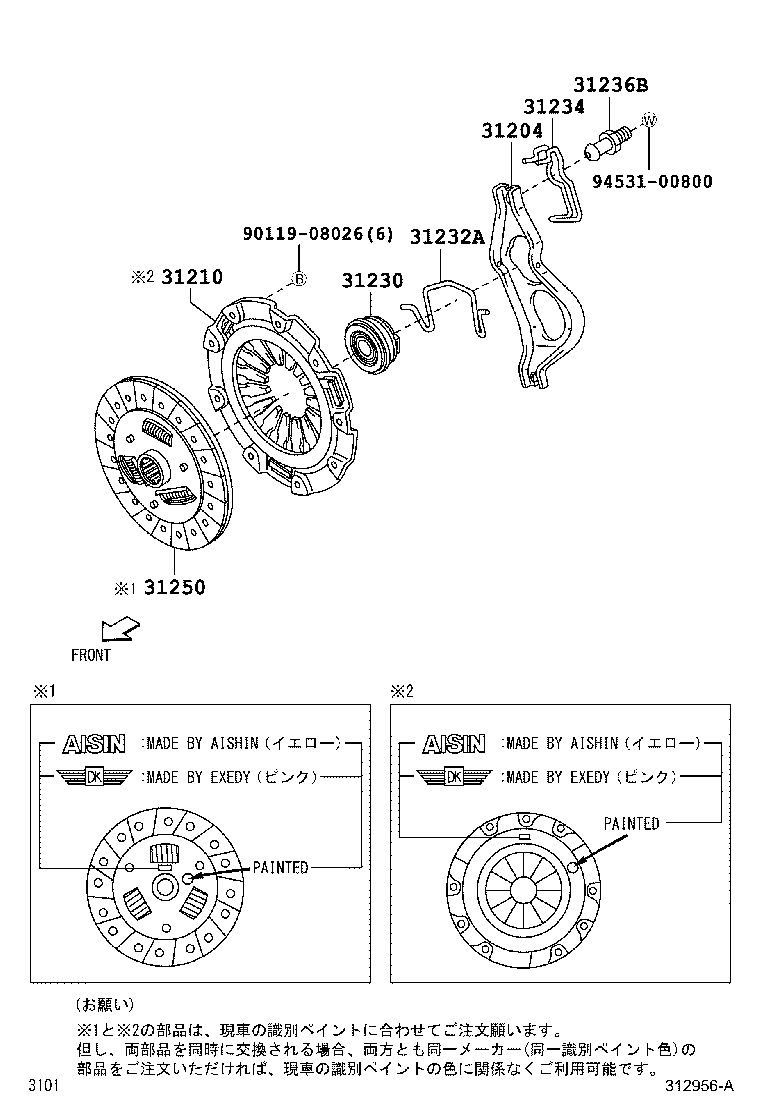

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

10 parts on this figure

Part number	Description	Fitment	Price
31204 — Fork Sub-assy, Clutch Release
31233-B5020	Fork Sub-assy, Clutch Release 2011-12 → —	S201,211 MTM	¥1,710
31210 — Cover Assy, Clutch
31210-B5010 note	Cover Assy, Clutch 2011-12 → —	S201,211 MTM	¥8,600
31210-B5030 note	Cover Assy, Clutch 2011-12 → —	S201,211 MTM	¥8,700
31230 — Bearing Assy, Clutch Release
31230-B4010	Bearing Assy, Clutch Release 2011-12 → —	S201,211 MTM	¥2,900
31232A — Clip, Release Bearing Hub
31232-87505	Clip, Release Bearing Hub 2011-12 → —	S201,211 MTM	¥250
31234 — Spring, Release Fork Anti-rattle
31234-87402	Spring, Release Fork Anti-rattle 2011-12 → —	S201,211 MTM	¥250
31236B — Support, Release Fork
31236-87501	Support, Release Fork 2011-12 → —	S201,211 MTM	¥250
31250 — Disc Assy, Clutch
31250-B5020 note	Disc Assy, Clutch 2011-12 → 2013-05 ended	S201,211 MTM	¥5,600
31250-B5021 note	Disc Assy, Clutch 2013-06 → —	S201,211 MTM	¥5,600
31250-B5030 note	Disc Assy, Clutch 2011-12 → —	S201,211 MTM	¥5,600

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
