Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

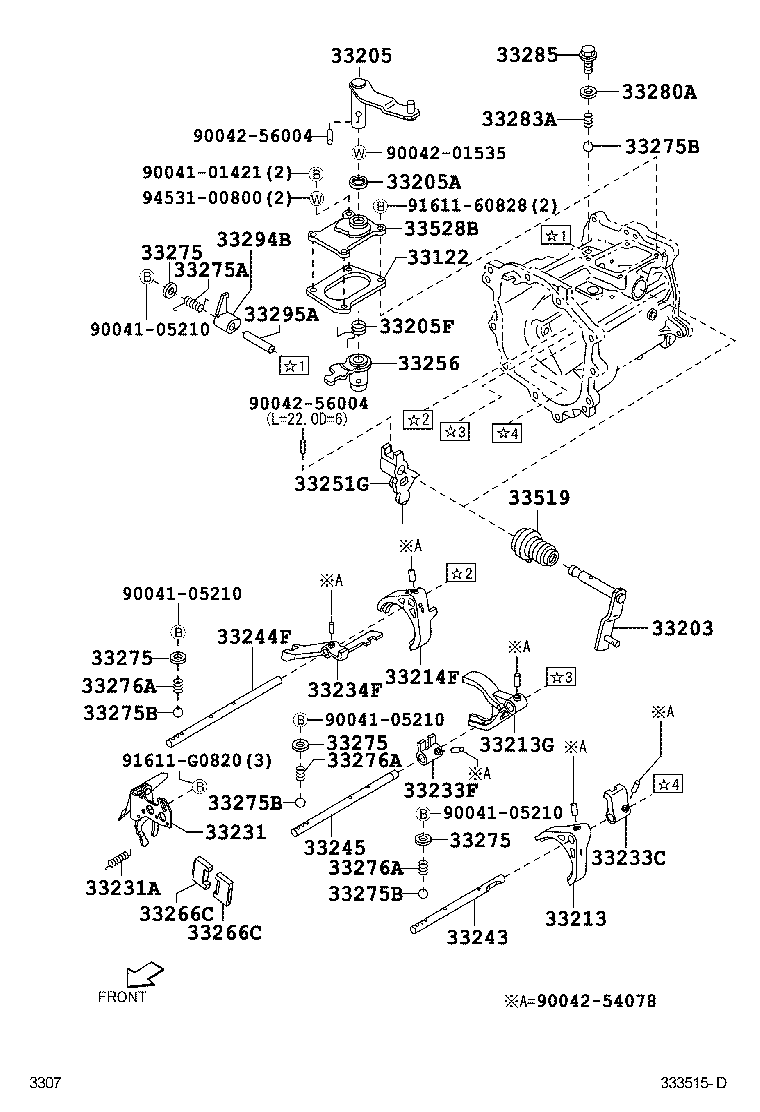

30 parts on this figure

Part number	Description	Fitment	Price
33122 — Gasket, Manual Transmission Case Cover
33122-87504	Gasket, Manual Transmission Case Cover 2011-12 → —	S201,211 MTM	¥310
33203 — Shaft Sub-assy, Shift Lever, NO.1
33203-97501	Shaft Sub-assy, Shift Lever, NO.1 2011-12 → —	S201,211 MTM	¥6,000
33205 — Shaft Sub-assy, Select Lever
33205-97501	Shaft Sub-assy, Select Lever 2011-12 → —	S201,211 MTM	¥2,120
33205A — Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT)
90043-13008	Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT) 2011-12 → —	S201,211 MTM	¥280
33205F — Spring, Compression(FOR SELECT RETURN)
90045-08333	Spring, Compression(FOR SELECT RETURN) 2011-12 → —	S201,211 MTM	¥300
33213 — Fork, 1ST & 2ND Shift
33212-97501	Fork, 1ST & 2ND Shift 2011-12 → —	S201,211 MTM	¥3,350
33213G — Fork, Gear Shift, NO.2
33213-B4010	Fork, Gear Shift, NO.2 2011-12 → —	S201,211 MTM	¥4,020
33214F — Fork, 5TH Shift
33214-97501	Fork, 5TH Shift 2011-12 → —	S201,211 MTM	¥3,200
33231 — Head, Reverse Shift
33201-B0010	Head, Reverse Shift 2011-12 → —	S201,211 MTM	¥2,940
33231A — Spring, Reverse Shift Restrict
90045-06241	Spring, Reverse Shift Restrict 2011-12 → —	S201,211 MTM	¥370
33233C — Head, 1ST & 2ND Shift
33233-97501	Head, 1ST & 2ND Shift 2011-12 → —	S201,211 MTM	¥1,510
33233F — Head, 3RD & 4TH Shift
33234-97501	Head, 3RD & 4TH Shift 2011-12 → —	S201,211 MTM	¥1,510
33234F — Head, Reverse & 5TH Shift
33237-87501	Head, Reverse & 5TH Shift 2011-12 → —	S201,211 MTM	¥2,320
33243 — Shaft, 1ST & 2ND Shift Fork
33243-97501	Shaft, 1ST & 2ND Shift Fork 2011-12 → —	S201,211 MTM	¥1,820
33244F — Shaft,5TH & Reverse Shift
33244-97501	Shaft,5TH & Reverse Shift 2011-12 → —	S201,211 MTM	¥1,780
33245 — Shaft, 3RD & 4TH Shift Fork
33245-87501	Shaft, 3RD & 4TH Shift Fork 2011-12 → —	S201,211 MTM	¥1,780
33251G — Lever, Shift, Inner
33251-87509	Lever, Shift, Inner 2011-12 → —	S201,211 MTM	¥1,830
33256 — Lever, Select Inner
33256-87501	Lever, Select Inner 2011-12 → —	S201,211 MTM	¥1,940
33266C — Plate, Shift Interlock
33266-87506	Plate, Shift Interlock 2011-12 → —	S201,211 MTM	¥540
33275 — Seat, Shift Detent Ball Spring, NO.1
90044-30122 note	Seat, Shift Detent Ball Spring, NO.1 2011-12 → —	S201,211 MTM	¥80
33275A — Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
90045-08332	Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) 2011-12 → —	S201,211 MTM	¥420
33275B — Ball, Shaft Detent
90043-60003	Ball, Shaft Detent 2011-12 → —	S201,211 MTM	¥170
33276A — Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
90045-01674	Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) 2011-12 → —	S201,211 MTM	¥100
33280A — Gasket, Reverse Restrict Pin
90044-30295	Gasket, Reverse Restrict Pin 2011-12 → —	S201,211 MTM	¥120
33283A — Spring, Compression (FOR REVERSE RESTRICT PIN)
90045-01669	Spring, Compression (FOR REVERSE RESTRICT PIN) 2011-12 → —	S201,211 MTM	¥180
33285 — Holder, Reverse Restrict Pin
33285-87501	Holder, Reverse Restrict Pin 2011-12 → —	S201,211 MTM	¥360
33294B — Cam, Reverse Restrict
33294-87503	Cam, Reverse Restrict 2011-12 → —	S201,211 MTM	¥1,320
33295A — Shaft, Reverse Restrict
33295-87501	Shaft, Reverse Restrict 2011-12 → —	S201,211 MTM	¥410
33519 — Boot, Control Shaft Dust
33519-87505	Boot, Control Shaft Dust 2011-12 → —	S201,211 MTM	¥520
33528B — Cover, Control Shaft
33528-87503	Cover, Control Shaft 2011-12 → —	S201,211 MTM	¥3,970

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
