Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

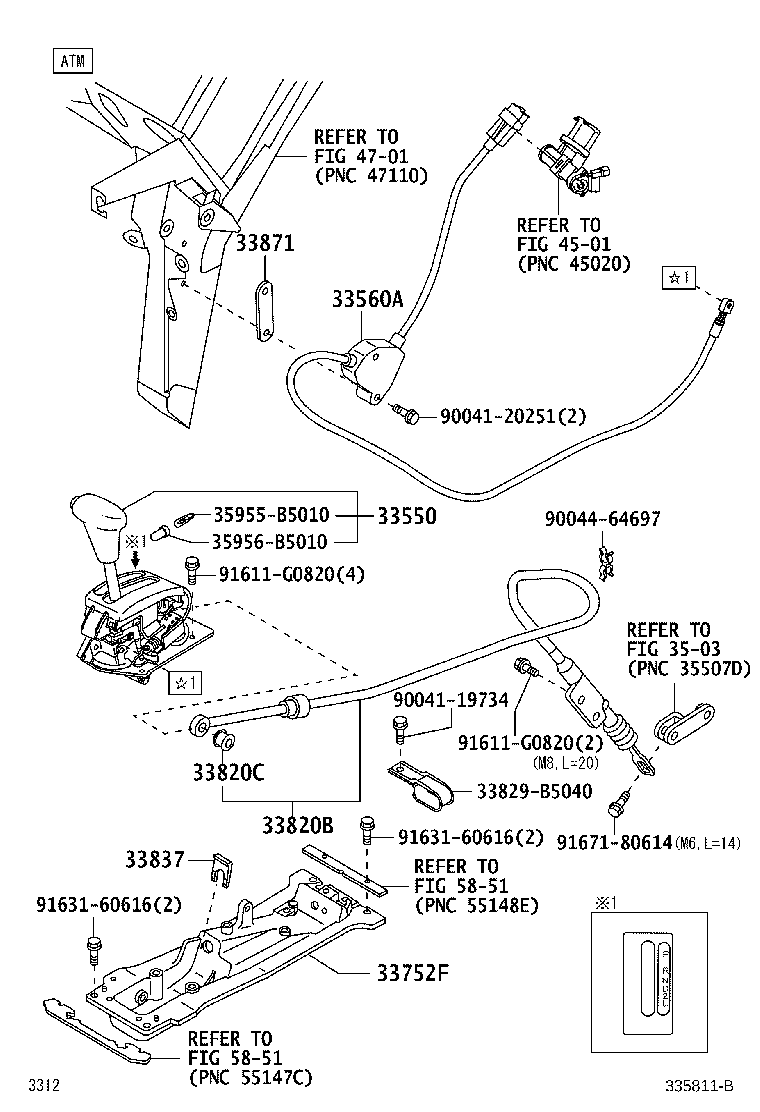

14 parts on this figure

Part number	Description	Fitment	Price
33550 — Floor Shift Assy, Transmission
33550-B5070-B0 note	Floor Shift Assy, Transmission 2011-12 → —	S201,211 ATM	¥25,000
33560A — Cable Assy, Shift Lock Release
33560-B5020	Cable Assy, Shift Lock Release 2011-12 → 2013-07 ended	S201,211 ATM	¥7,300
33560-B5021	Cable Assy, Shift Lock Release 2013-08 → —	S201,211 ATM	¥8,500
33752F — Support, Control Link (FOR FLOOR SHIFT)
33752-B5010	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S201,211 ATM	¥6,100
33752-B5020	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S201 MTM;S211 MTM SPL	¥6,100
33752-B5030	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S211 MTM EXT	¥6,100
33752-B5030 note	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S211 MTM SPL	¥6,100
33820B — Cable Assy, Transmission Control
33820-B5080	Cable Assy, Transmission Control 2011-12 → 2014-07 ended	S201,211 ATM	¥15,800
33820C — Bush (FOR TRANSMISSION CONTROL CABLE)
33835-B1010	Bush (FOR TRANSMISSION CONTROL CABLE) 2011-12 → 2014-07 ended	S201,211 ATM	¥160
33837 — Clip, Transmission Control Cable Adjust
33837-B5010	Clip, Transmission Control Cable Adjust 2013-01 → 2014-07 ended	S201,211 ATM	¥280
33837-B5010	Clip, Transmission Control Cable Adjust 2013-01 → 2014-07 ended	S201,211 MTM	¥280
90044-68075	Clip, Transmission Control Cable Adjust 2011-12 → 2012-12 ended	S201,211 ATM	¥260
90044-68075	Clip, Transmission Control Cable Adjust 2011-12 → 2012-12 ended	S201,211 MTM	¥260
33871 — Bracket, Shift Lock Release Link (FOR FLOOR SHIFT)
33871-97501	Bracket, Shift Lock Release Link (FOR FLOOR SHIFT) 2011-12 → —	S201,211 ATM	¥430

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
