Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

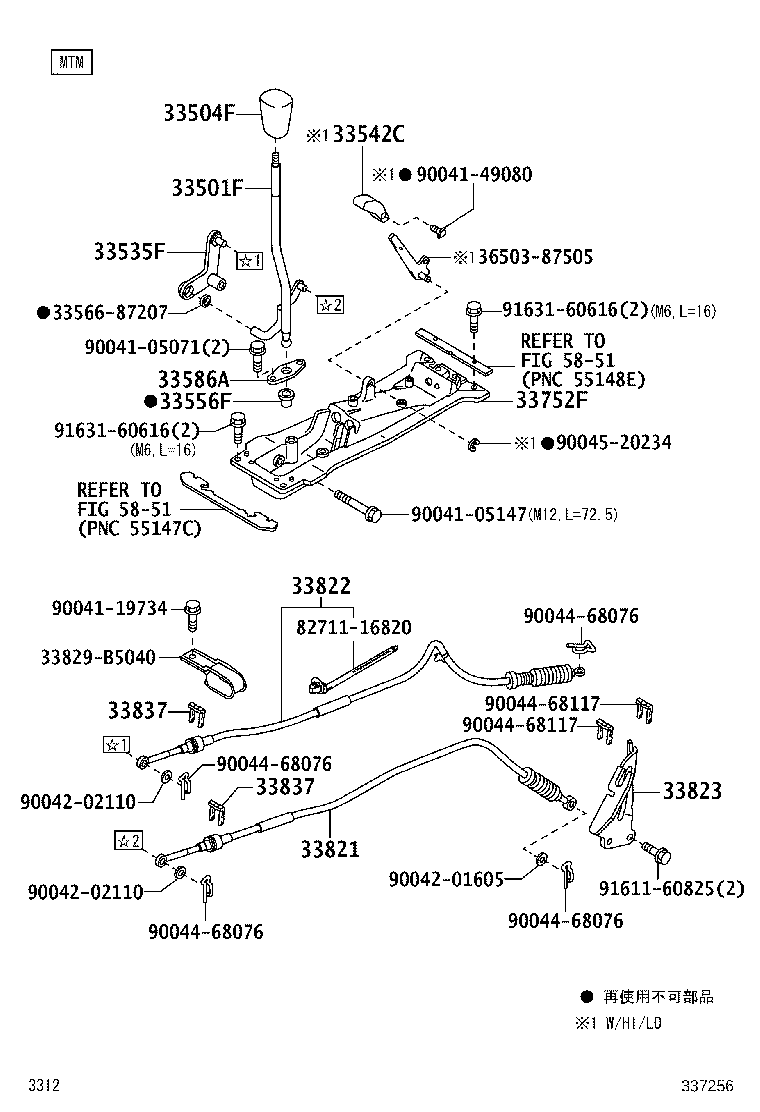

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

18 parts on this figure

Part number	Description	Fitment	Price
33501F — Shaft Sub-assy, Control (FOR FLOOR SHIFT)
33501-97502 note	Shaft Sub-assy, Control (FOR FLOOR SHIFT) 2011-12 → 2014-07 ended	S201,211 MTM	¥4,330
33504F — Knob Sub-assy, Shift Lever
33504-B2050-B1 note	Knob Sub-assy, Shift Lever 2011-12 → —	S201,211 MTM	¥1,240
33535F — Lever, Control Select (FOR FLOOR SHIFT)
33535-97502	Lever, Control Select (FOR FLOOR SHIFT) 2011-12 → —	S201,211 MTM	¥1,950
33542C — Knob, Shift Lever
33542-87503-B0 note	Knob, Shift Lever 2011-12 → —	S211 MTM EXT	¥2,840
33542-87503-B0 note	Knob, Shift Lever 2011-12 → —	S211 MTM SPL	¥2,840
33556F — Seat, Transmission Shift Lever Ball
33556-87202	Seat, Transmission Shift Lever Ball 2011-12 → —	S201,211 MTM	¥460
33586A — Stopper, Control Lever (FOR FLOOR SHIFT)
33586-97502	Stopper, Control Lever (FOR FLOOR SHIFT) 2011-12 → —	S201,211 MTM	¥650
33752F — Support, Control Link (FOR FLOOR SHIFT)
33752-B5010	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S201,211 ATM	¥6,100
33752-B5020	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S201 MTM;S211 MTM SPL	¥6,100
33752-B5030	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S211 MTM EXT	¥6,100
33752-B5030 note	Support, Control Link (FOR FLOOR SHIFT) 2011-12 → —	S211 MTM SPL	¥6,100
33821 — Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821-B5040	Cable Transmission Control Shift (FOR FLOOR SHIFT) 2011-12 → —	S201,211 MTM	¥14,200
33822 — Cable Transmission Control Select (FOR FLOOR SHIFT)
33822-B5030	Cable Transmission Control Select (FOR FLOOR SHIFT) 2011-12 → —	S201,211 MTM	¥14,200
33823 — Bracket, Transmission Control Cable, NO.1
33823-B5050	Bracket, Transmission Control Cable, NO.1 2011-12 → —	S201,211 MTM	¥2,420
33837 — Clip, Transmission Control Cable Adjust
33837-B5010	Clip, Transmission Control Cable Adjust 2013-01 → 2014-07 ended	S201,211 ATM	¥280
33837-B5010	Clip, Transmission Control Cable Adjust 2013-01 → 2014-07 ended	S201,211 MTM	¥280
90044-68075	Clip, Transmission Control Cable Adjust 2011-12 → 2012-12 ended	S201,211 ATM	¥260
90044-68075	Clip, Transmission Control Cable Adjust 2011-12 → 2012-12 ended	S201,211 MTM	¥260

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
