Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

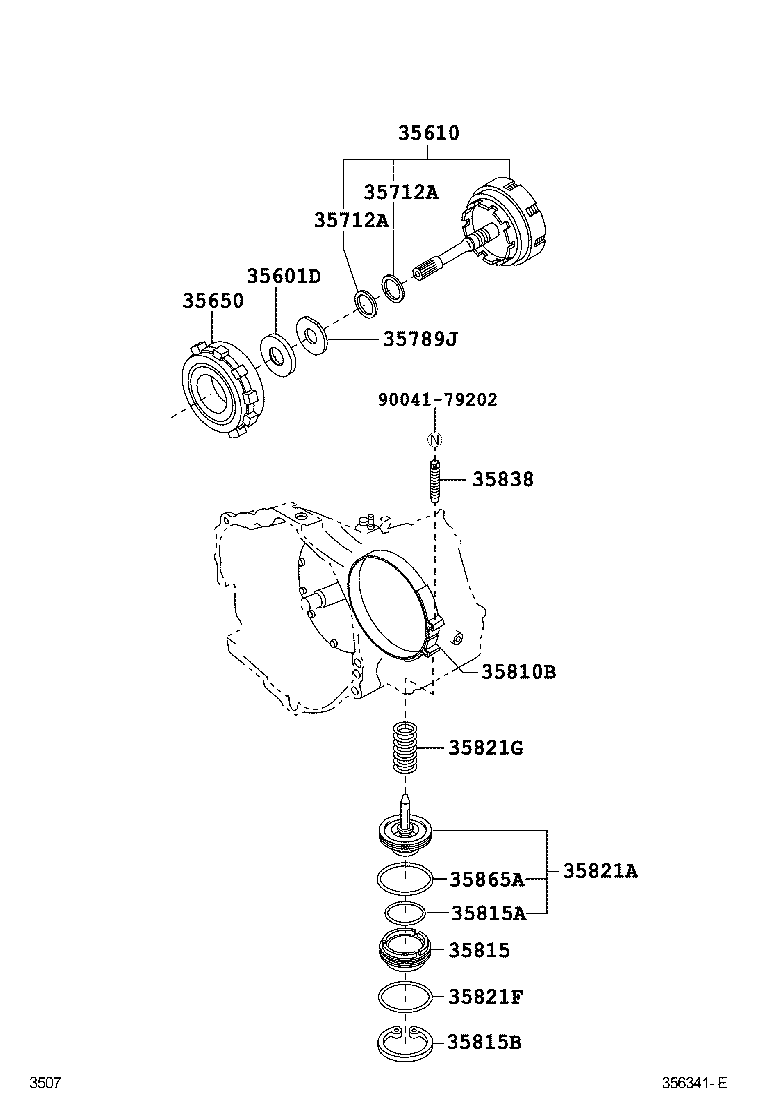

Exploded illustration 356341E 35610 — CLUTCH ASSY, FRONT MULTIPLE DISC (1 parts) 35650 — CLUTCH ASSY, REAR MULTIPLE DISC (1 parts) 35712A — RING, INPUT SHAFT OIL SEAL (1 parts) 35712A — RING, INPUT SHAFT OIL SEAL (1 parts) 35601D — BEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM) (1 parts) 35789J — RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) (3 parts) 35810B — BAND ASSY, 2ND COAST BRAKE (1 parts) 35838 — BOLT, BRAKE BAND ANCHOR (1 parts) 9004179202 — not listed in this catalogue 35815 — COVER, 2ND COAST BRAKE (1 parts) 35815B — RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) (1 parts) 35821F — RING, O (FOR SERVO PISTON TO SERVO BODY) (1 parts) 35821G — SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) (1 parts) 35815A — RING, O (FOR 2ND COAST BRAKE COVER) (1 parts) 35821A — PISTON, 2ND COAST BRAKE (1 parts) 35865A — RING, 2ND COAST BRAKE PISTON OIL SEAL (1 parts)
356341E · 15 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
35601D — Bearing, Thrust Needle Roller (FOR FRONT CLUTCH DRUM)
90043-74041 Bearing, Thrust Needle Roller (FOR FRONT CLUTCH DRUM)
2011-12 → —
S201,211 ATM ¥1,170
35610 — Clutch Assy, Front Multiple Disc
35610-87506 Clutch Assy, Front Multiple Disc
2011-12 → —
S201,211 ATM ¥23,400
35650 — Clutch Assy, Rear Multiple Disc
35650-87503 Clutch Assy, Rear Multiple Disc
2011-12 → —
S201,211 ATM ¥13,000
35712A — Ring, Input Shaft Oil Seal
35712-87202 Ring, Input Shaft Oil Seal
2011-12 → —
S201,211 ATM ¥260
35789J — Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35789-87208 note Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
2011-12 → —
S201,211 ATM ¥740
35789-87209 note Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
2011-12 → —
S201,211 ATM ¥830
35789-87210 note Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
2011-12 → —
S201,211 ATM ¥950
35810B — Band Assy, 2ND Coast Brake
35810-97202 Band Assy, 2ND Coast Brake
2011-12 → —
S201,211 ATM ¥7,400
35815 — Cover, 2ND Coast Brake
35847-87202 Cover, 2ND Coast Brake
2011-12 → —
S201,211 ATM ¥1,530
35815A — Ring, O (FOR 2ND COAST BRAKE COVER)
35866-87201 Ring, O (FOR 2ND COAST BRAKE COVER)
2011-12 → —
S201,211 ATM ¥370
35815B — Ring, Hole Snap (FOR 2ND COAST BRAKE COVER)
90045-21133 Ring, Hole Snap (FOR 2ND COAST BRAKE COVER)
2011-12 → —
S201,211 ATM ¥350
35821A — Piston, 2ND Coast Brake
35820-87202 Piston, 2ND Coast Brake
2011-12 → —
S201,211 ATM ¥4,480
35821F — Ring, O (FOR SERVO PISTON TO SERVO BODY)
90043-01283 Ring, O (FOR SERVO PISTON TO SERVO BODY)
2011-12 → —
S201,211 ATM ¥340
35821G — Spring, Compression (FOR 2ND COAST BRAKE PISTON)
90045-01683 Spring, Compression (FOR 2ND COAST BRAKE PISTON)
2011-12 → —
S201,211 ATM ¥350
35838 — Bolt, Brake Band Anchor
35838-97202 Bolt, Brake Band Anchor
2011-12 → —
S201,211 ATM ¥510
35865A — Ring, 2ND Coast Brake Piston Oil Seal
35865-87202 Ring, 2ND Coast Brake Piston Oil Seal
2011-12 → —
S201,211 ATM ¥510
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
