Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

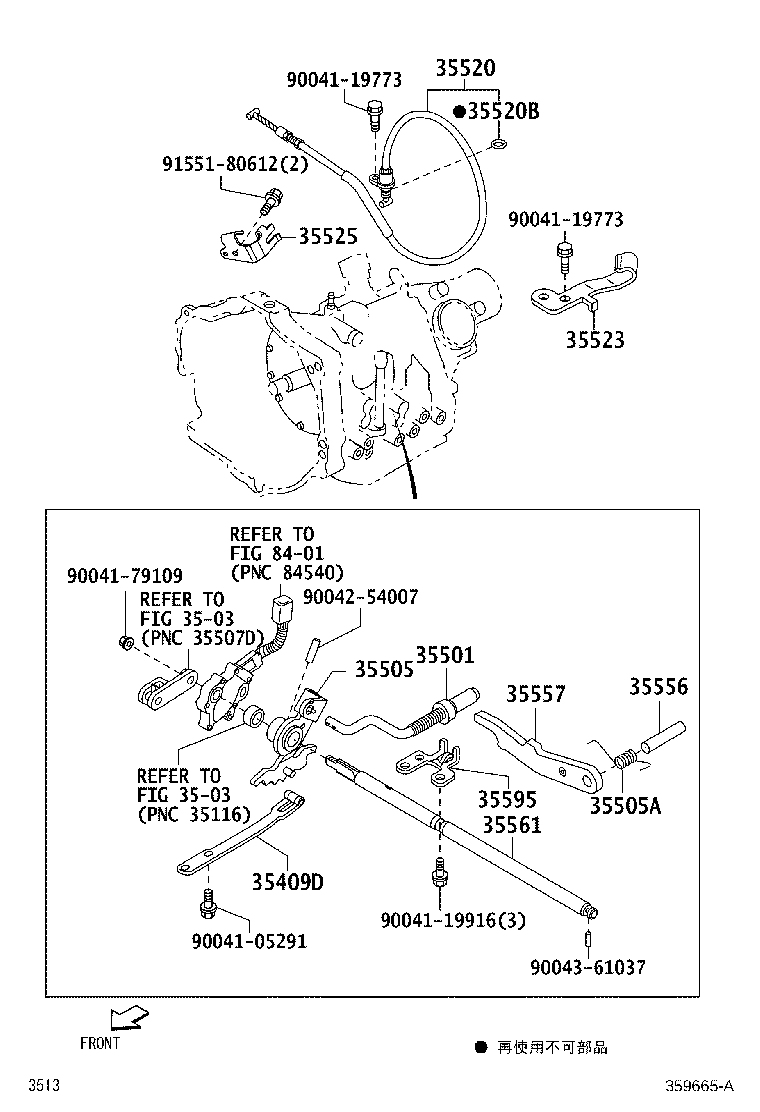

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

12 parts on this figure

Part number	Description	Fitment	Price
35409D — Spring Sub-assy, Manual Detent
35409-87505	Spring Sub-assy, Manual Detent 2011-12 → —	S201,211 ATM	¥1,090
35501 — Rod Sub-assy, Parking Lock
35501-87503	Rod Sub-assy, Parking Lock 2011-12 → —	S201,211 ATM	¥2,370
35505 — Lever Sub-assy, Manual Valve
35505-87505	Lever Sub-assy, Manual Valve 2011-12 → —	S201,211 ATM	¥1,510
35505A — Spring, Torsion (FOR MANUAL VALVE LEVER)
90045-08372	Spring, Torsion (FOR MANUAL VALVE LEVER) 2011-12 → —	S201,211 ATM	¥520
35520 — Cable Assy, Throttle
35520-B5010	Cable Assy, Throttle 2011-12 → —	S201,211 ATM	¥3,820
35520B — Ring, O(FOR THROTTLE CABLE)
90043-01318	Ring, O(FOR THROTTLE CABLE) 2011-12 → —	S201,211 ATM	¥270
35523 — Clamp, Throttle Cable
35523-87501	Clamp, Throttle Cable 2011-12 → —	S201,211 ATM	¥310
35525 — Bracket, Throttle Cable
35525-B5020	Bracket, Throttle Cable 2011-12 → —	S201,211 ATM	¥650
35556 — Shaft, Parking Lock Pawl
35556-87502	Shaft, Parking Lock Pawl 2011-12 → —	S201,211 ATM	¥320
35557 — Pawl, Parking Lock
35557-87503	Pawl, Parking Lock 2011-12 → —	S201,211 ATM	¥1,400
35561 — Shaft, Manual Valve Lever
35561-87504	Shaft, Manual Valve Lever 2011-12 → —	S201,211 ATM	¥2,320
35595 — Bracket, Parking Lock Pawl
35595-87503	Bracket, Parking Lock Pawl 2011-12 → —	S201,211 ATM	¥1,210

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
