Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

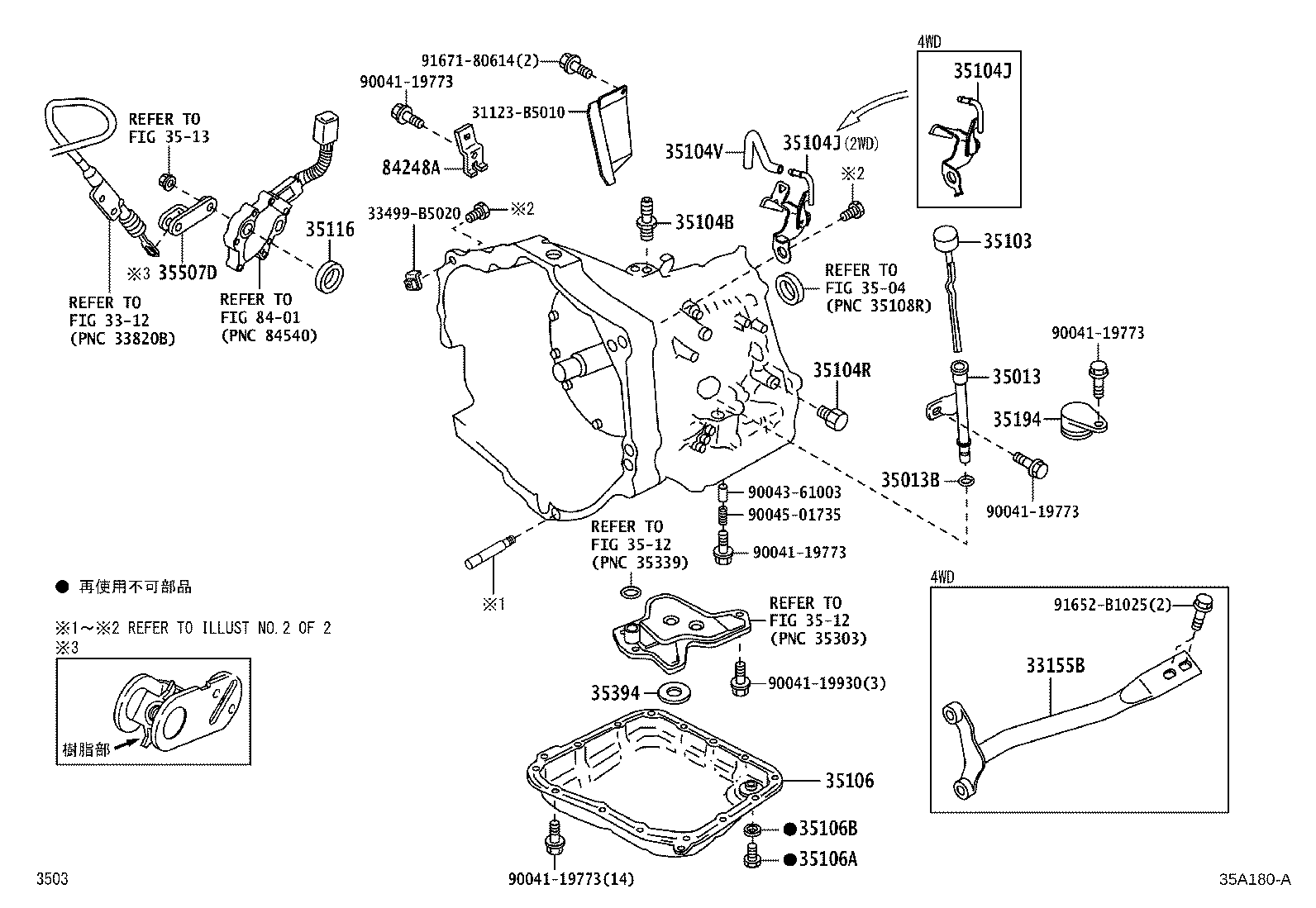

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

20 parts on this figure

Part number	Description	Fitment	Price
33155B — Stiffener, Power Train
36119-B5020	Stiffener, Power Train 2011-12 → —	S211 ATM	¥4,120
35013 — Tube Sub-assy, Transmission Oil Filler
35013-87505	Tube Sub-assy, Transmission Oil Filler 2011-12 → 2012-02 ended	S201,211 ATM	¥3,250
35013-B5050	Tube Sub-assy, Transmission Oil Filler 2012-03 → —	S201,211 ATM	¥2,840
35013B — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90043-01193	Ring, O (FOR TRANSMISSION OIL FILLER TUBE) 2011-12 → —	S201,211 ATM	¥190
35103 — Gage Sub-assy, Transmission Oil Level
35103-87507	Gage Sub-assy, Transmission Oil Level 2011-12 → —	S201,211 ATM	¥1,020
35104B — Plug, Breather, NO.1 (ATM)
90049-15053	Plug, Breather, NO.1 (ATM) 2011-12 → —	S201,211 ATM	¥510
35104J — Bracket, Breather Plug Hose
58107-B5051	Bracket, Breather Plug Hose 2011-12 → 2013-06 ended	S201 ATM	¥880
58107-B5052	Bracket, Breather Plug Hose 2013-07 → —	S201 ATM	¥1,080
58107-B5061	Bracket, Breather Plug Hose 2011-12 → 2013-06 ended	S211 ATM	¥910
58107-B5062	Bracket, Breather Plug Hose 2013-07 → —	S211 ATM	¥1,330
35104R — Plug, NO.2 (FOR TRANSAXLE CASE)
90043-45040	Plug, NO.2 (FOR TRANSAXLE CASE) 2011-12 → —	S201,211 ATM	¥180
35104V — Hose (FOR BREATHER PLUG)
35121-B5010	Hose (FOR BREATHER PLUG) 2011-12 → —	S201,211 ATM	¥250
35106 — Pan Sub-assy, Automatic Transmission Oil
35106-97503	Pan Sub-assy, Automatic Transmission Oil 2011-12 → —	S201,211 ATM	¥8,400
35106A — Plug Sub-assy, Drain (ATM)
90043-41041	Plug Sub-assy, Drain (ATM) 2011-12 → —	S201,211 ATM	¥170
35106B — Gasket, Drain Plug (ATM)
90044-30281	Gasket, Drain Plug (ATM) 2011-12 → —	S201,211 ATM	¥170
35116 — Seal, Transmission Case Dust
90043-11256	Seal, Transmission Case Dust 2011-12 → —	S201,211 ATM	¥300
35194 — Cover, Transmission Case Dust
35194-87501	Cover, Transmission Case Dust 2011-12 → —	S201,211 ATM	¥1,110
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
33449-B2010	Magnet, Oil Cleaner (FOR TRANSMISSION) 2011-12 → —	S201,211 ATM	¥180
35507D — Lever, Transmission Control Shaft
35507-97502 note	Lever, Transmission Control Shaft 2011-12 → 2014-07 ended	S201,211 ATM	¥1,140
84248A — Clamp, Switch Harness
84248-87501	Clamp, Switch Harness 2011-12 → —	S201,211 ATM	¥660

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
