Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

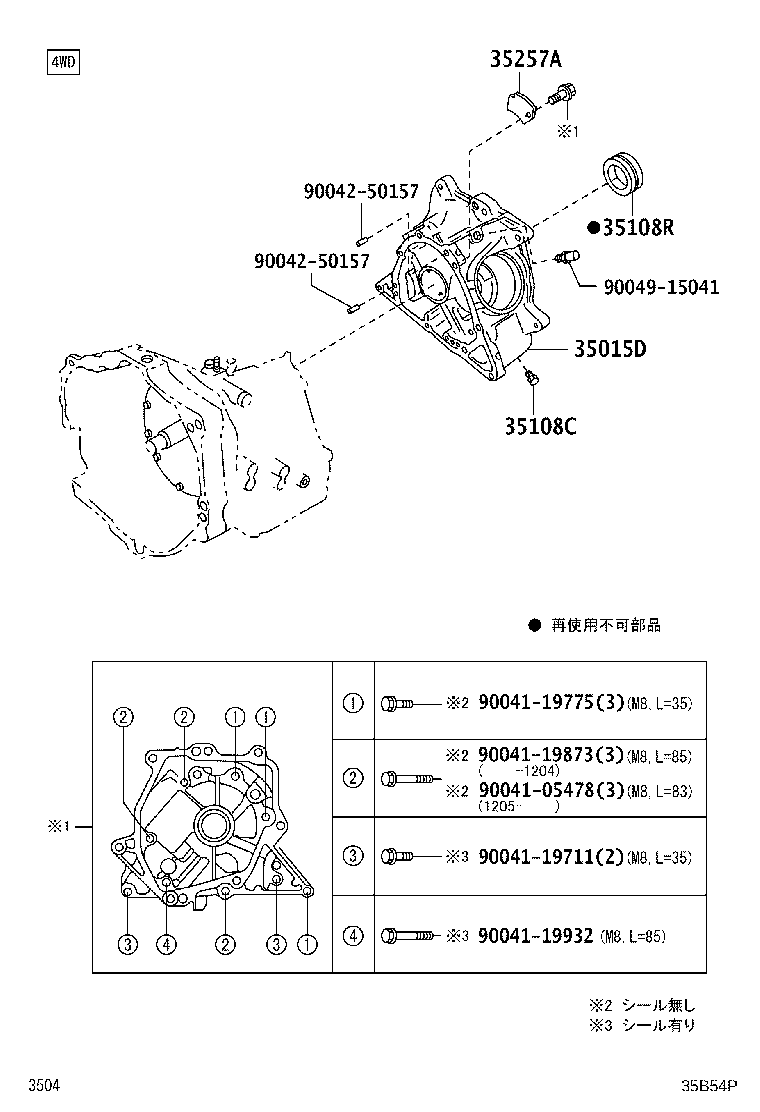

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35015D — Adapter Sub-assy, Transmission Case | ||||
| 35151-97502 |
Adapter Sub-assy, Transmission Case
2011-12 → —
|
S211 ATM | ¥27,400 | |
| 35108C — Plug (FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 90043-45040 |
Plug (FOR AUTOMATIC EXTENSION HOUSING)
2011-12 → —
|
S201,211 ATM | ¥180 | |
| 35108R — Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) | ||||
| 90043-11309 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2011-12 → 2014-05
ended
|
S201 ATM | ¥400 | |
| 90043-11429 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2014-06 → —
|
S201 ATM | ¥510 | |
| 90043-16022 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2011-12 → —
|
S211 ATM | ¥3,400 | |
| 35257A — Plate, Oil Guide | ||||
| 35257-87502 |
Plate, Oil Guide
2011-12 → —
|
S211 ATM | ¥160 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
