Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

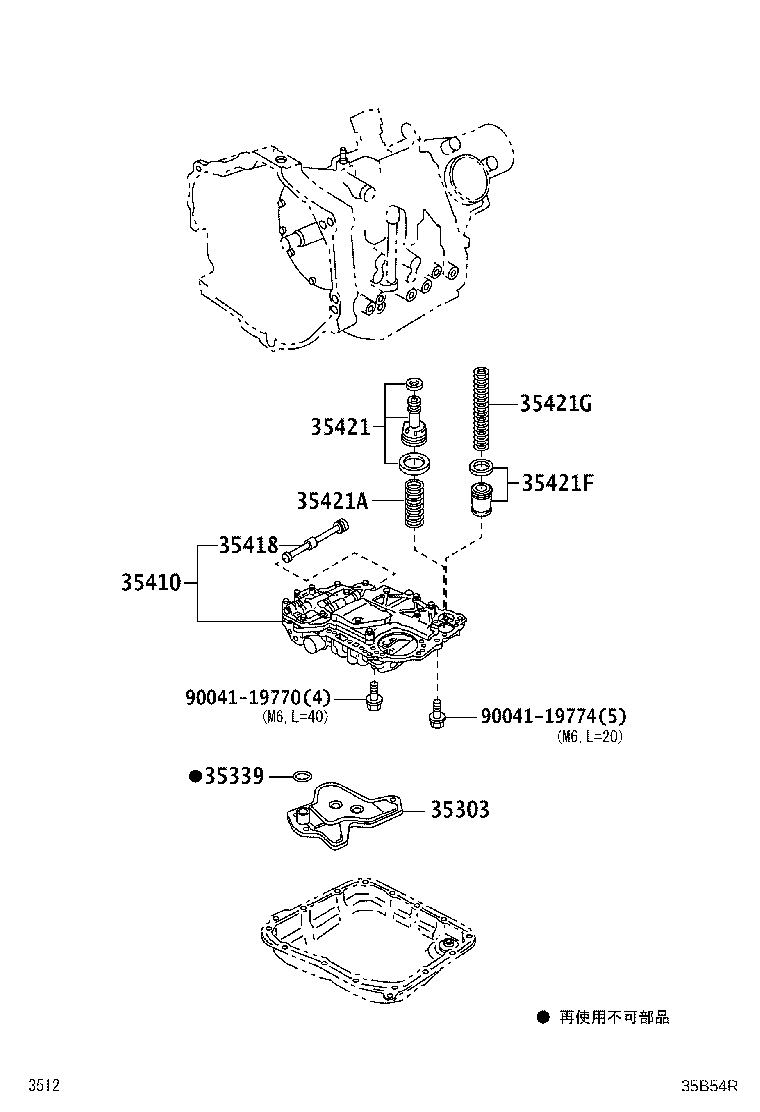

9 parts on this figure

Part number	Description	Fitment	Price
35303 — Strainer Sub-assy, Oil
35303-97502	Strainer Sub-assy, Oil 2011-12 → —	S201,211 ATM	¥6,800
35339 — Gasket, Oil Strainer
96723-24020	Gasket, Oil Strainer 2011-12 → —	S201,211 ATM	¥140
35410 — Body Assy, Transmission Valve
35410-B5020	Body Assy, Transmission Valve 2011-12 → —	S201 ATM	¥54,100
35410-B5030	Body Assy, Transmission Valve 2011-12 → —	S211 ATM	¥54,100
35418 — Valve, Manual
35418-97204	Valve, Manual 2011-12 → —	S201,211 ATM	¥2,320
35421 — Piston, Accumulator, NO.1
35407-B2010	Piston, Accumulator, NO.1 2011-12 → —	S201,211 ATM	¥2,120
35421A — Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
90045-01715	Spring, Compression (FOR ACCUMULATOR PISTON NO.1) 2011-12 → —	S201,211 ATM	¥270
35421F — Piston, Accumulator, NO.2
35405-B2010	Piston, Accumulator, NO.2 2011-12 → —	S201,211 ATM	¥1,430
35421G — Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
90045-01734	Spring, Compression (FOR ACCUMULATOR PISTON NO.2) 2011-12 → —	S201,211 ATM	¥270

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
