Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

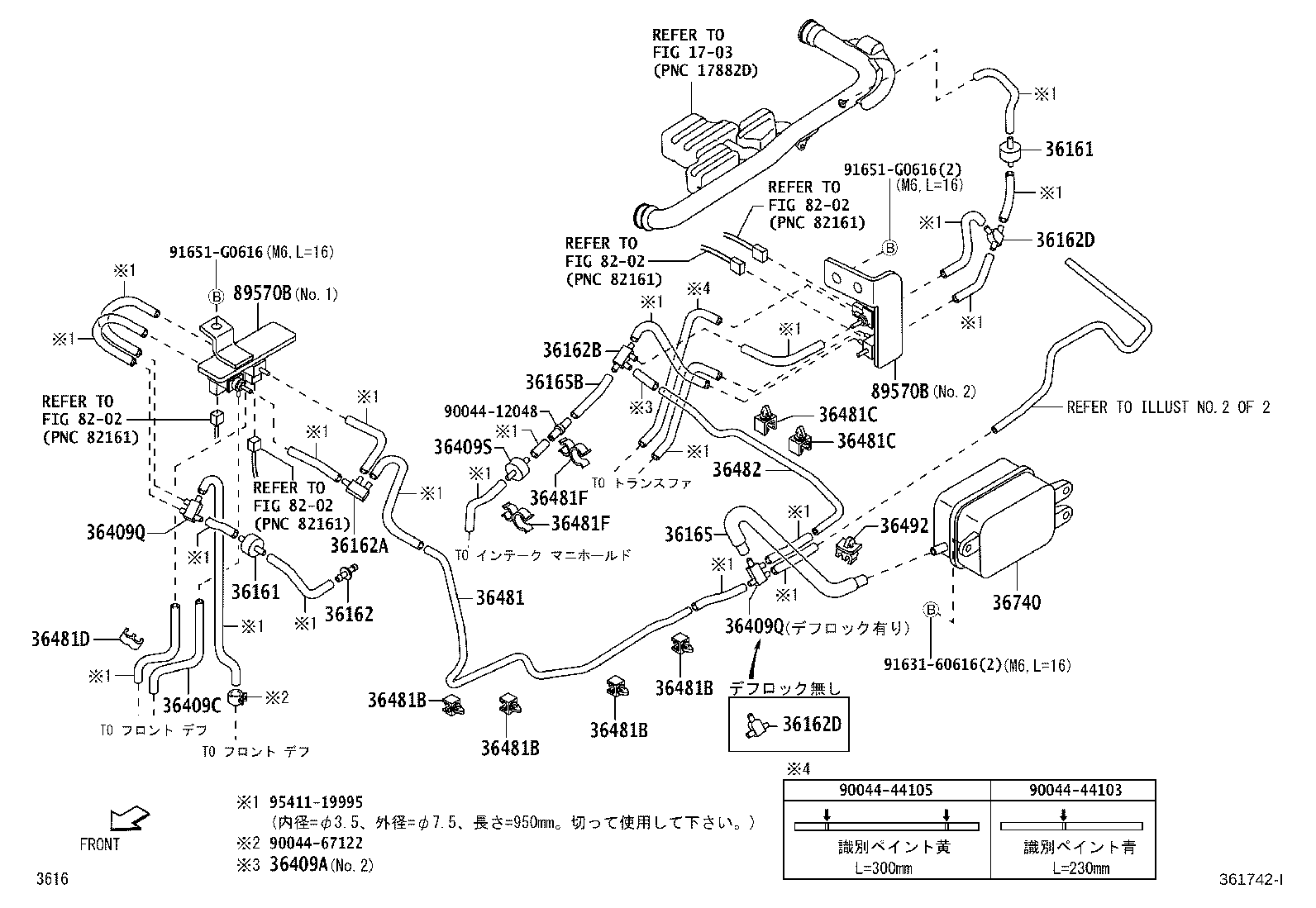

Exploded illustration 361742I 9541119995 — not listed in this catalogue 9163160616 — not listed in this catalogue 91651G0616 — not listed in this catalogue 91651G0616 — not listed in this catalogue 36161 — FILTER ASSY, AIR(FOR FRONT) (1 parts) 36161 — FILTER ASSY, AIR(FOR FRONT) (1 parts) 36162 — WAY, 2(FOR FRONT CHECK VALVE) (1 parts) 36162A — WAY,3(FOR VACUUM HOSE) (1 parts) 36162B — WAY, 4(FOR TRANSFER VACUUM) (1 parts) 36162D — WAY, 3(FOR REAR CHECK VALVE) (4 parts) 36165B — HOSE(CHECK VALVE, NO.2) (2 parts) 36409C — HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT) (4 parts) 36409Q — WAY, 4 (FOR FRONT DRIVE SHIFT) (4 parts) 36165 — HOSE, TANK VACUUM (1 parts) 36409Q — WAY, 4 (FOR FRONT DRIVE SHIFT) (4 parts) 36409S — VALVE, CHECK (FOR FRONT DRIVE SHIFT) (2 parts) 36481 — TUBE, FRONT DRIVE VACUUM, NO.1 (1 parts) 36481D — CLAMP, NO.1 (FOR TRANSFER VACUUM) (1 parts) 36162D — WAY, 3(FOR REAR CHECK VALVE) (4 parts) 36481B — CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 (1 parts) 36481B — CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 (1 parts) 36481B — CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 (1 parts) 36481B — CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 (1 parts) 36481C — CLAMP, FRONT DRIVE VACUUM TUBE, NO.2 (2 parts) 36481C — CLAMP, FRONT DRIVE VACUUM TUBE, NO.2 (2 parts) 36481F — CLAMP, NO.3(FOR TRANSFER VACUUM) (2 parts) 36481F — CLAMP, NO.3(FOR TRANSFER VACUUM) (2 parts) 36482 — TUBE, FRONT DRIVE VACUUM, NO.2 (2 parts) 36492 — CLAMP, TRANSFER VACUM TUBE, NO.2 (4 parts) 36740 — TANK ASSY, TRANSFER VACUUM (1 parts) 36409A — HOSE (FOR VACUUM TUBE) (3 parts) 89570B — VALVE ASSY, VACUUM SWITCHING (2 parts) 89570B — VALVE ASSY, VACUUM SWITCHING (2 parts) 9004412048 — not listed in this catalogue 9004444105 — not listed in this catalogue 9004444103 — not listed in this catalogue 9004467122 — not listed in this catalogue 1703 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue
361742I · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
36161 — Filter Assy, Air(FOR FRONT)
90048-24010 Filter Assy, Air(FOR FRONT)
2011-12 → —
S211 ¥1,160
36162 — Way, 2(FOR FRONT CHECK VALVE)
90044-12061 Way, 2(FOR FRONT CHECK VALVE)
2011-12 → —
S211 ¥910
36162A — Way,3(FOR VACUUM HOSE)
90044-13034 Way,3(FOR VACUUM HOSE)
2011-12 → —
S211 ¥330
36162B — Way, 4(FOR TRANSFER VACUUM)
90044-14016 Way, 4(FOR TRANSFER VACUUM)
2011-12 → —
S211 ¥620
36162D — Way, 3(FOR REAR CHECK VALVE)
90044-13053 Way, 3(FOR REAR CHECK VALVE)
2011-12 → —
S211 MTM EXT ¥300
90044-13053 note Way, 3(FOR REAR CHECK VALVE)
2011-12 → —
S211 MTM SPL ¥300
90044-13053 note Way, 3(FOR REAR CHECK VALVE)
2011-12 → —
S211 MTM SPL ¥300
90044-13053 Way, 3(FOR REAR CHECK VALVE)
2011-12 → —
S211 ATM;S211 MTM SPL ¥300
36165 — Hose, Tank Vacuum
90044-48543 Hose, Tank Vacuum
2011-12 → —
S211 ¥600
36165B — Hose(CHECK VALVE, NO.2)
44750-B5110 Hose(CHECK VALVE, NO.2)
2011-12 → —
S211 ¥2,630
44750-B5110 note Hose(CHECK VALVE, NO.2)
2011-12 → —
S201 MTM ¥2,630
36409A — Hose (FOR VACUUM TUBE)
90044-48198 note Hose (FOR VACUUM TUBE)
2011-12 → —
S211 MTM EXT ¥420
90044-48198 note Hose (FOR VACUUM TUBE)
2011-12 → —
S201 MTM;S211 MTM SPL ¥420
95411-19995 note Hose (FOR VACUUM TUBE)
2011-12 → —
S211 ¥1,540
36409C — Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
95411-19995 Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 ¥1,540
95411-19995 note Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM SPL ¥1,540
95411-19995 note Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM SPL ¥1,540
95411-19995 note Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM SPL ¥1,540
36409Q — Way, 4 (FOR FRONT DRIVE SHIFT)
90044-14015 note Way, 4 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM SPL ¥450
90044-14015 note Way, 4 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM SPL ¥450
90044-14015 Way, 4 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 ATM;S211 MTM SPL ¥450
90044-14015 Way, 4 (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 MTM EXT ¥450
36409S — Valve, Check (FOR FRONT DRIVE SHIFT)
90048-20008 Valve, Check (FOR FRONT DRIVE SHIFT)
2011-12 → —
S211 ¥1,460
90048-20008 note Valve, Check (FOR FRONT DRIVE SHIFT)
2011-12 → —
S201 MTM ¥1,460
36481 — Tube, Front Drive Vacuum, NO.1
36481-97502 Tube, Front Drive Vacuum, NO.1
2011-12 → —
S211 ¥1,980
36481B — Clamp, Front Drive Vacuum Tube, NO.1
90044-64826 Clamp, Front Drive Vacuum Tube, NO.1
2011-12 → —
S211 ¥160
36481C — Clamp, Front Drive Vacuum Tube, NO.2
90044-64826 note Clamp, Front Drive Vacuum Tube, NO.2
2011-12 → 2014-07 ended
S201 MTM ¥160
90044-64826 Clamp, Front Drive Vacuum Tube, NO.2
2011-12 → 2014-07 ended
S211 ¥160
36481D — Clamp, NO.1 (FOR TRANSFER VACUUM)
90044-64108 Clamp, NO.1 (FOR TRANSFER VACUUM)
2011-12 → —
S211 ¥110
36481F — Clamp, NO.3(FOR TRANSFER VACUUM)
90044-64168 note Clamp, NO.3(FOR TRANSFER VACUUM)
2011-12 → —
S201 MTM ¥170
90044-64168 Clamp, NO.3(FOR TRANSFER VACUUM)
2011-12 → —
S211 ¥170
36482 — Tube, Front Drive Vacuum, NO.2
36482-97502 Tube, Front Drive Vacuum, NO.2
2011-12 → —
S211 ¥1,150
36482-97503 note Tube, Front Drive Vacuum, NO.2
2011-12 → —
S201 MTM ¥790
36492 — Clamp, Transfer Vacum Tube, NO.2
90044-64687 Clamp, Transfer Vacum Tube, NO.2
2011-12 → —
S211 ATM;S211 MTM SPL ¥200
90044-64687 Clamp, Transfer Vacum Tube, NO.2
2011-12 → —
S211 MTM EXT ¥200
90044-64687 note Clamp, Transfer Vacum Tube, NO.2
2011-12 → —
S211 MTM SPL ¥200
90044-64687 note Clamp, Transfer Vacum Tube, NO.2
2011-12 → —
S201 MTM ¥200
36740 — Tank Assy, Transfer Vacuum
36751-97501 Tank Assy, Transfer Vacuum
2011-12 → —
S211 ¥3,710
89570B — Valve Assy, Vacuum Switching
89570-97508 note Valve Assy, Vacuum Switching
2011-12 → 2014-07 ended
S211 ¥9,500
89570-97509 note Valve Assy, Vacuum Switching
2011-12 → 2014-07 ended
S211 ¥9,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
