Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

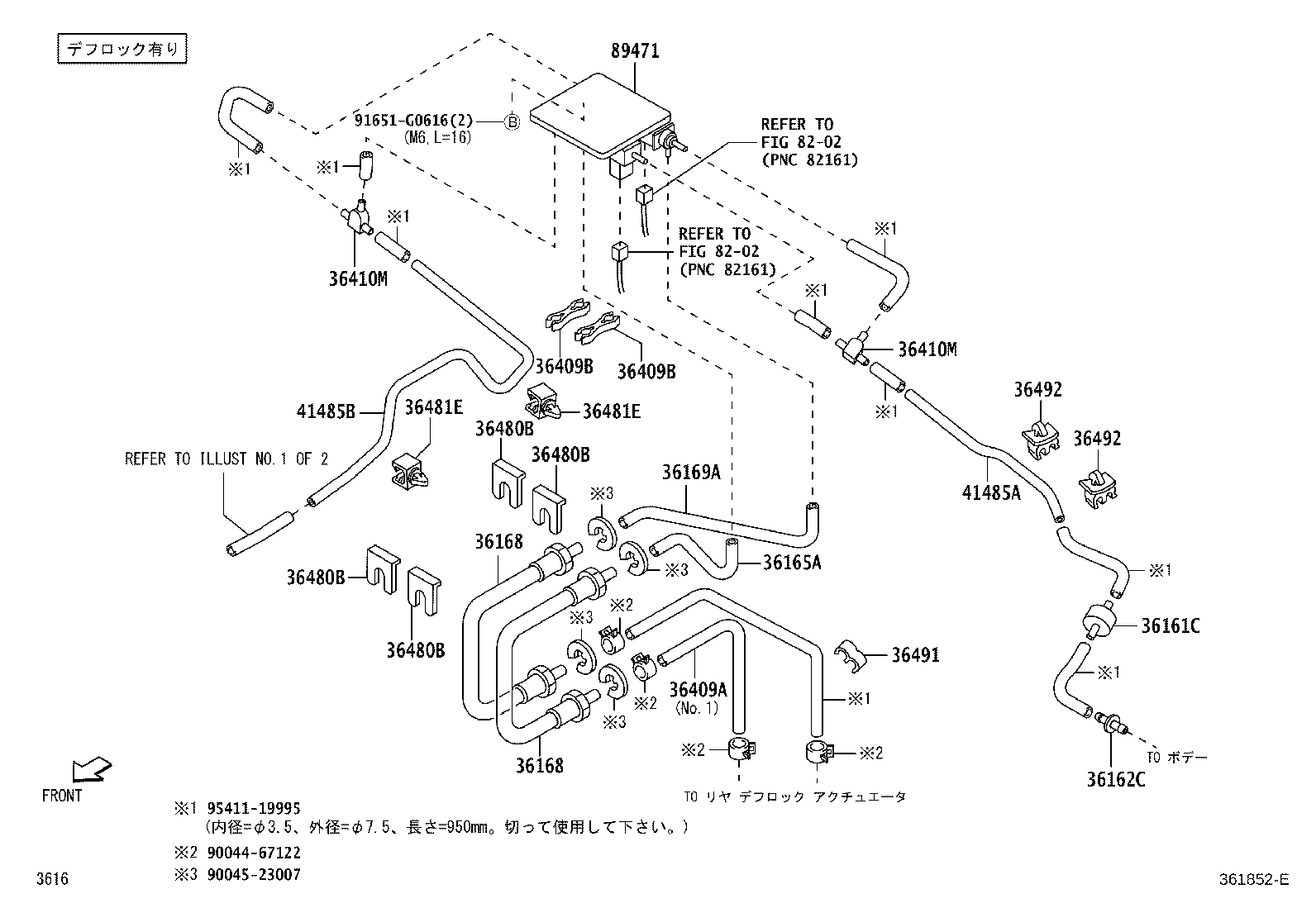

38 parts on this figure

Part number	Description	Fitment	Price
36161C — Filter Assy, Air(FOR 2WAY)
90048-24010 note	Filter Assy, Air(FOR 2WAY) 2011-12 → —	S201 MTM;S211 MTM SPL	¥1,160
90048-24010	Filter Assy, Air(FOR 2WAY) 2011-12 → —	S211 MTM EXT	¥1,160
36162C — Way, 2(FOR REAR CHECK VALVE)
90044-12061 note	Way, 2(FOR REAR CHECK VALVE) 2011-12 → —	S201 MTM;S211 MTM SPL	¥910
90044-12061	Way, 2(FOR REAR CHECK VALVE) 2011-12 → —	S211 MTM EXT	¥910
36165A — Hose, Flexible(VSV)
90044-46727	Hose, Flexible(VSV) 2011-12 → —	S211 MTM EXT	¥300
90044-46727 note	Hose, Flexible(VSV) 2011-12 → —	S201 MTM;S211 MTM SPL	¥300
36168 — Hose, Flexible
42599-B5010	Hose, Flexible 2013-11 → —	S211 MTM EXT	¥3,350
42599-B5010 note	Hose, Flexible 2013-11 → —	S201 MTM;S211 MTM SPL	¥3,350
90049-22157	Hose, Flexible 2011-12 → 2013-11 ended	S211 MTM EXT	¥3,150
90049-22157 note	Hose, Flexible 2011-12 → 2013-11 ended	S201 MTM;S211 MTM SPL	¥3,150
36169A — Hose
95411-19995 note	Hose 2011-12 → —	S201 MTM;S211 MTM SPL	¥1,540
95411-19995	Hose 2011-12 → —	S211 MTM EXT	¥1,540
36409A — Hose (FOR VACUUM TUBE)
90044-48198 note	Hose (FOR VACUUM TUBE) 2011-12 → —	S211 MTM EXT	¥420
90044-48198 note	Hose (FOR VACUUM TUBE) 2011-12 → —	S201 MTM;S211 MTM SPL	¥420
95411-19995 note	Hose (FOR VACUUM TUBE) 2011-12 → —	S211	¥1,540
36409B — Clamp, Vacuum Tube
90044-64386	Clamp, Vacuum Tube 2011-12 → —	S211 MTM EXT	¥200
90044-64386 note	Clamp, Vacuum Tube 2011-12 → —	S201 MTM;S211 MTM SPL	¥200
36410M — Way, 3 (FOR TRANSFER VACUUM)
90044-13053	Way, 3 (FOR TRANSFER VACUUM) 2011-12 → —	S211 MTM EXT	¥300
90044-13053 note	Way, 3 (FOR TRANSFER VACUUM) 2011-12 → —	S201 MTM;S211 MTM SPL	¥300
36480B — Clamp (FOR VACUUM CHECK VALVE)
90044-65038	Clamp (FOR VACUUM CHECK VALVE) 2011-12 → —	S211 MTM EXT	¥130
90044-65038 note	Clamp (FOR VACUUM CHECK VALVE) 2011-12 → —	S201 MTM;S211 MTM SPL	¥130
36481E — Clamp, NO.2 (FOR TRANSFER VACUUM)
90044-64826	Clamp, NO.2 (FOR TRANSFER VACUUM) 2011-12 → 2012-09 ended	S211 MTM EXT	¥160
90044-64826 note	Clamp, NO.2 (FOR TRANSFER VACUUM) 2011-12 → 2012-09 ended	S211 MTM SPL	¥160
90044-64826 note	Clamp, NO.2 (FOR TRANSFER VACUUM) 2011-12 → 2014-07 ended	S201 MTM	¥160
90044-64826	Clamp, NO.2 (FOR TRANSFER VACUUM) 2012-10 → 2014-07 ended	S211 MTM EXT	¥160
90044-64826 note	Clamp, NO.2 (FOR TRANSFER VACUUM) 2012-10 → 2014-07 ended	S211 MTM SPL	¥160
36491 — Clamp, Transfer Vacuum Tube, N0.1
90044-64108	Clamp, Transfer Vacuum Tube, N0.1 2011-12 → —	S211 MTM EXT	¥110
90044-64108 note	Clamp, Transfer Vacuum Tube, N0.1 2011-12 → —	S201 MTM;S211 MTM SPL	¥110
36492 — Clamp, Transfer Vacum Tube, NO.2
90044-64687	Clamp, Transfer Vacum Tube, NO.2 2011-12 → —	S211 MTM EXT	¥200
90044-64687 note	Clamp, Transfer Vacum Tube, NO.2 2011-12 → —	S201 MTM	¥200
90044-64687 note	Clamp, Transfer Vacum Tube, NO.2 2011-12 → —	S211 MTM SPL	¥200
90044-64687	Clamp, Transfer Vacum Tube, NO.2 2011-12 → —	S211 ATM;S211 MTM SPL	¥200
41485A — Tube, Differential Lock Clutch Pressure Apply
41485-B5010	Tube, Differential Lock Clutch Pressure Apply 2011-12 → —	S211 MTM EXT	¥430
41485-B5010 note	Tube, Differential Lock Clutch Pressure Apply 2011-12 → —	S201 MTM;S211 MTM SPL	¥430
41485B — Tube, Differential Lock Clutch Pressure Apply, NO.2
41485-B5020	Tube, Differential Lock Clutch Pressure Apply, NO.2 2011-12 → —	S211 MTM EXT	¥1,890
41485-B5020 note	Tube, Differential Lock Clutch Pressure Apply, NO.2 2011-12 → —	S201 MTM;S211 MTM SPL	¥1,890
89471 — Valve Assy, Vacuum Switching
89570-97510	Valve Assy, Vacuum Switching 2011-12 → 2014-07 ended	S211 MTM EXT	¥6,800
89570-97510 note	Valve Assy, Vacuum Switching 2011-12 → 2014-07 ended	S201 MTM;S211 MTM SPL	¥6,800

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
