Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 362088 33481P — GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) (2 parts) 36292A — BEARING (FOR TRANSFER DRIVEN SPROCKET) (2 parts) 36231F — RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) (1 parts) 36231J — BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) (1 parts) 36234 — SHAFT, TRANSFER OUTPUT, FRONT (1 parts) 36288 — RACE, TRANSFER THRUST BEARING, NO.1 (3 parts) 36292A — BEARING (FOR TRANSFER DRIVEN SPROCKET) (2 parts) 36293 — CHAIN, TRANSFER FRONT DRIVE (1 parts) 36233A — BEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR) (1 parts) 36202A — NUT(FOR TRANSFER OUTPUT REAR SHAFT) (1 parts) 33365B — KEY, SYNCHROMESH SHIFTING, NO.1 (1 parts) 33365B — KEY, SYNCHROMESH SHIFTING, NO.1 (1 parts) 33365B — KEY, SYNCHROMESH SHIFTING, NO.1 (1 parts) 33371B — SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) (1 parts) 36231H — BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) (3 parts) 36232 — GEAR, TRANSFER FRONT DRIVE (1 parts) 36202 — SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR (4 parts) 36231E — BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) (2 parts) 36231D — WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36291A — BEARING (FOR TRANSFER DRIVE SPROCKET) (2 parts) 36217 — GEAR, TRANSFER LOW SPEED INPUT (2 parts) 36242 — GEAR, TRANSFER LOW (2 parts) 36237 — HUB, TRANSFER CLUTCH (3 parts) 36247 — RING, TRANSFER SYNCHRONIZER (1 parts) 3609 — not listed in this catalogue 3609 — not listed in this catalogue

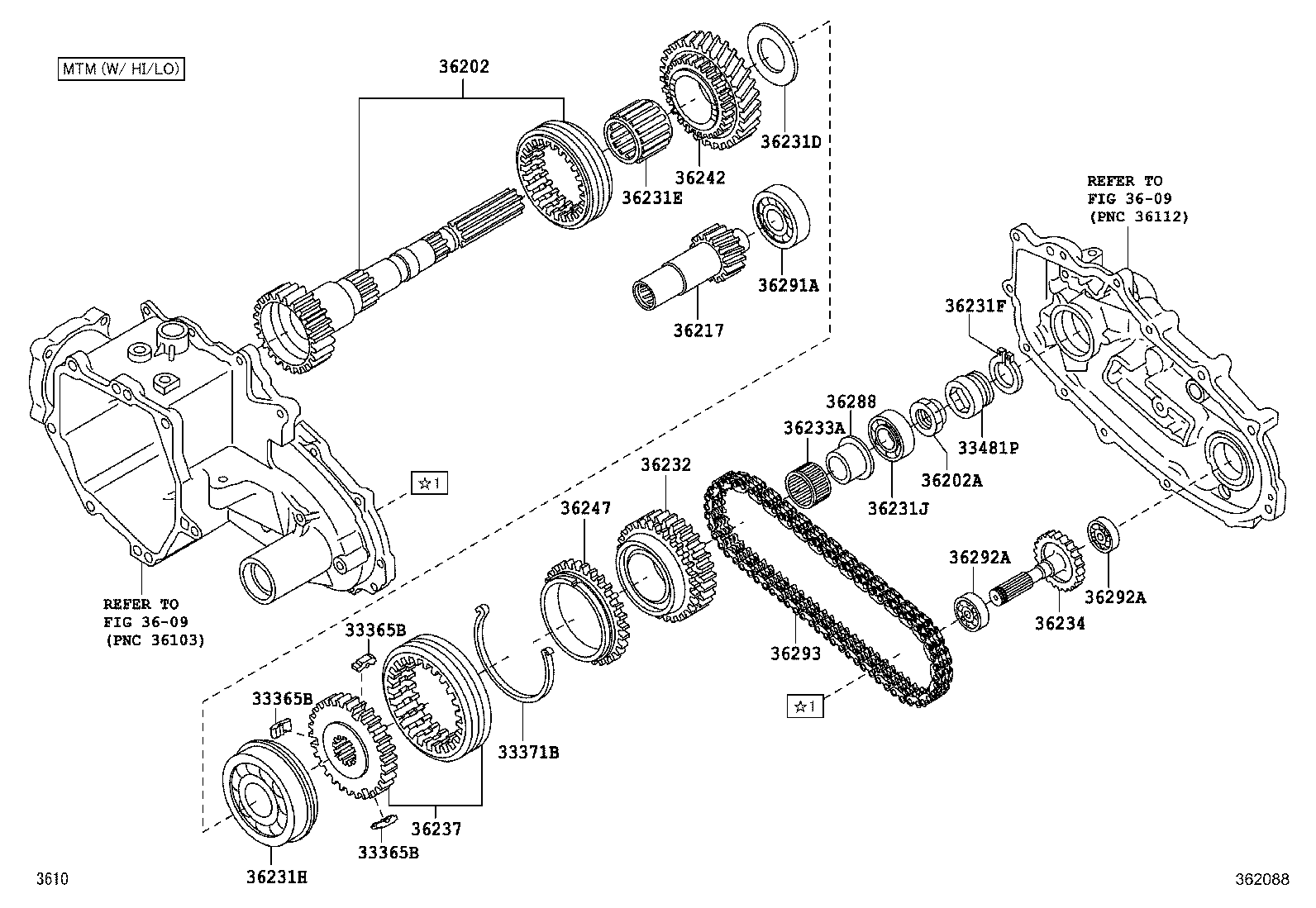

362088 · 24 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
33365B — Key, Synchromesh Shifting, NO.1
33365-87507 Key, Synchromesh Shifting, NO.1
2011-12 → —
S211 ¥700
33371B — Spring, Synchromesh Shifting Key (FOR TRANSFER)
33392-87502 Spring, Synchromesh Shifting Key (FOR TRANSFER)
2011-12 → —
S211 ¥390
33481P — Gear, Speedometer Drive (FOR TRANSFER)
33481-87410 Gear, Speedometer Drive (FOR TRANSFER)
2011-12 → —
S211 ATM ¥2,990
33481-97508 Gear, Speedometer Drive (FOR TRANSFER)
2011-12 → —
S211 MTM ¥3,820
36202 — Shaft Sub-assy, Transfer Output, Rear
36220-87505 Shaft Sub-assy, Transfer Output, Rear
2011-12 → —
S211 ATM ¥27,600
36220-87506 Shaft Sub-assy, Transfer Output, Rear
2011-12 → —
S211 MTM EXT ¥17,700
36220-87506 note Shaft Sub-assy, Transfer Output, Rear
2011-12 → —
S211 MTM SPL ¥17,700
36231-B5020 Shaft Sub-assy, Transfer Output, Rear
2011-12 → —
S211 MTM SPL ¥12,200
36202A — Nut(FOR TRANSFER OUTPUT REAR SHAFT)
90041-79244 Nut(FOR TRANSFER OUTPUT REAR SHAFT)
2011-12 → —
S211 ¥520
36217 — Gear, Transfer Low Speed Input
36217-97501 Gear, Transfer Low Speed Input
2011-12 → —
S211 MTM EXT ¥6,900
36217-97501 note Gear, Transfer Low Speed Input
2011-12 → —
S211 MTM SPL ¥6,900
36231D — Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
36215-87502 Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
2011-12 → —
S211 MTM EXT ¥420
36215-87502 note Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
2011-12 → —
S211 MTM SPL ¥420
36231E — Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
90043-64061 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2011-12 → —
S211 MTM EXT ¥1,150
90043-64061 note Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2011-12 → —
S211 MTM SPL ¥1,150
36231F — Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
96150-02200 Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2011-12 → —
S211 ¥140
36231H — Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
97153-06207 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
2011-12 → —
S211 MTM SPL —
97153-06306 note Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
2011-12 → —
S211 MTM SPL ¥1,280
97153-06306 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
2011-12 → —
S211 ATM;S211 MTM EXT ¥1,280
36231J — Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
90043-63127 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2011-12 → —
S211 ¥1,390
36232 — Gear, Transfer Front Drive
36232-B5010 Gear, Transfer Front Drive
2011-12 → —
S211 ¥10,000
36233A — Bearing, Needle Roller (FOR TRANSFER DRIVE GEAR)
90043-64140 Bearing, Needle Roller (FOR TRANSFER DRIVE GEAR)
2011-12 → —
S211 ¥810
36234 — Shaft, Transfer Output, Front
36234-B5010 Shaft, Transfer Output, Front
2011-12 → 2014-07 ended
S211 ¥8,100
36237 — Hub, Transfer Clutch
36203-B5010 Hub, Transfer Clutch
2011-12 → —
S211 MTM SPL ¥12,500
36203-B5020 Hub, Transfer Clutch
2011-12 → —
S211 ATM;S211 MTM EXT ¥12,500
36203-B5020 note Hub, Transfer Clutch
2011-12 → —
S211 MTM SPL ¥12,500
36242 — Gear, Transfer Low
36242-87501 note Gear, Transfer Low
2011-12 → —
S211 MTM SPL ¥8,000
36242-87501 Gear, Transfer Low
2011-12 → —
S211 MTM EXT ¥8,000
36247 — Ring, Transfer Synchronizer
33368-87507 Ring, Transfer Synchronizer
2011-12 → —
S211 ¥3,250
36288 — Race, Transfer Thrust Bearing, NO.1
36288-B5010 Race, Transfer Thrust Bearing, NO.1
2011-12 → —
S211 MTM SPL ¥2,170
36288-B5020 Race, Transfer Thrust Bearing, NO.1
2011-12 → —
S211 ATM;S211 MTM EXT ¥2,170
36288-B5020 note Race, Transfer Thrust Bearing, NO.1
2011-12 → —
S211 MTM SPL ¥2,170
36291A — Bearing (FOR TRANSFER DRIVE SPROCKET)
90043-63231 Bearing (FOR TRANSFER DRIVE SPROCKET)
2011-12 → —
S211 MTM EXT ¥540
90043-63231 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2011-12 → —
S211 MTM SPL ¥540
36292A — Bearing (FOR TRANSFER DRIVEN SPROCKET)
97100-06203 note Bearing (FOR TRANSFER DRIVEN SPROCKET)
2011-12 → —
S211 ¥470
97130-06005 note Bearing (FOR TRANSFER DRIVEN SPROCKET)
2011-12 → —
S211 ¥730
36293 — Chain, Transfer Front Drive
36293-87508 Chain, Transfer Front Drive
2011-12 → —
S211 ¥7,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
