Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

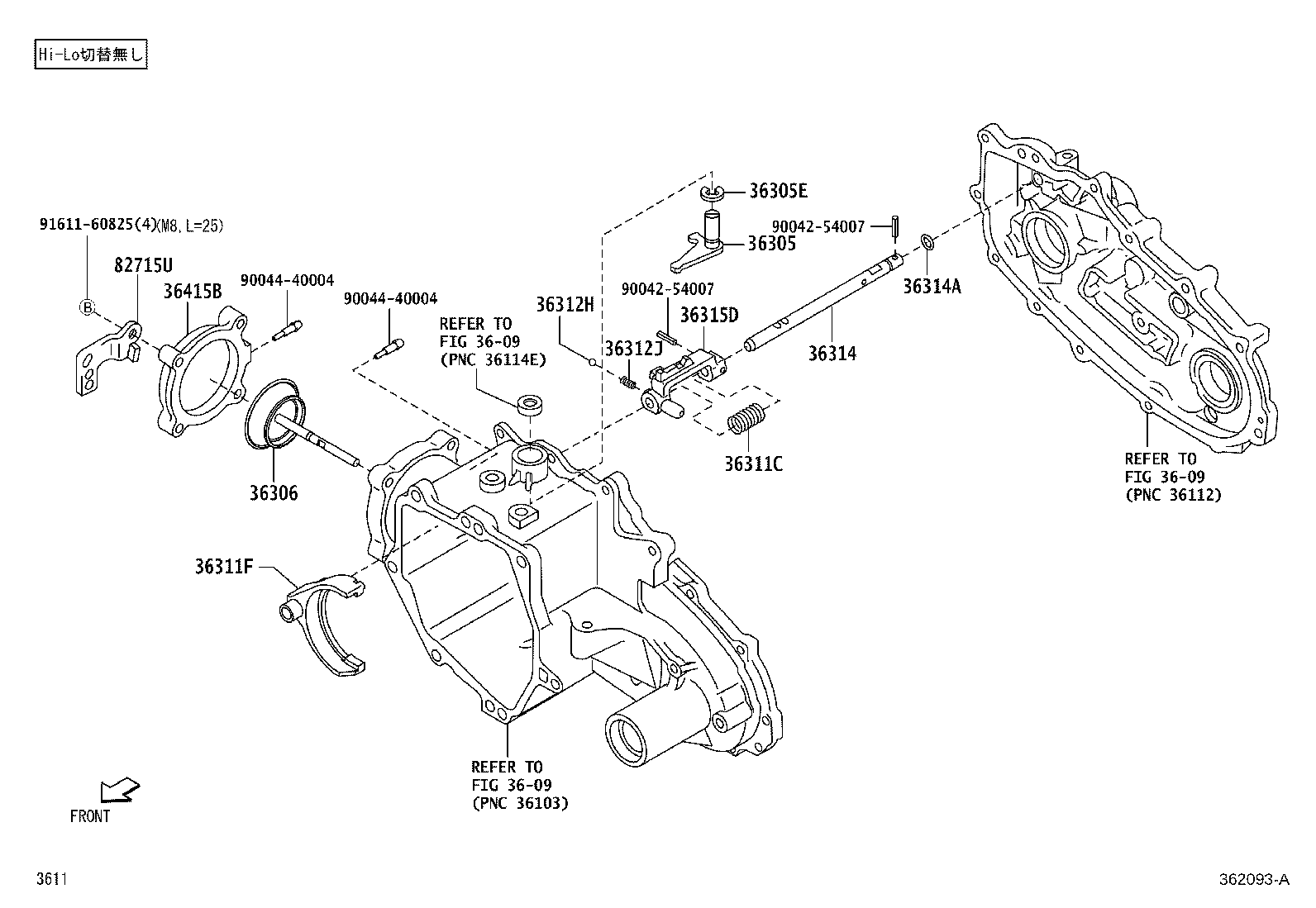

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

18 parts on this figure

Part number	Description	Fitment	Price
36305 — Lever Sub-assy, Front Drive Shift Link
36305-87502	Lever Sub-assy, Front Drive Shift Link 2011-12 → —	S211	¥2,320
36305E — Ring, E(FOR FRONT DRIVE SHIFT LINK LEVER)
90045-23007	Ring, E(FOR FRONT DRIVE SHIFT LINK LEVER) 2011-12 → —	S211 ATM;S211 MTM SPL	¥140
90045-23007	Ring, E(FOR FRONT DRIVE SHIFT LINK LEVER) 2011-12 → —	S211 MTM EXT	¥140
90045-23007 note	Ring, E(FOR FRONT DRIVE SHIFT LINK LEVER) 2011-12 → —	S211 MTM SPL	¥140
36306 — Shaft Sub-assy, Control
33205-B5020	Shaft Sub-assy, Control 2011-12 → —	S211 MTM SPL	¥3,760
36306-87508	Shaft Sub-assy, Control 2011-12 → —	S211 ATM;S211 MTM EXT	¥2,790
36306-87508 note	Shaft Sub-assy, Control 2011-12 → —	S211 MTM SPL	¥2,790
36311C — Spring, Compresion (FOR SHIFT FORK)
90045-01673	Spring, Compresion (FOR SHIFT FORK) 2011-12 → —	S211	¥280
36311F — Fork, Transfer Gear Shift, NO.1
36311-B5010	Fork, Transfer Gear Shift, NO.1 2011-12 → —	S211	¥3,710
36312H — Ball (FOR TRANSFER GEAR SHIFT FORK NO.2)
90043-60003	Ball (FOR TRANSFER GEAR SHIFT FORK NO.2) 2011-12 → —	S211	¥170
36312J — Spring, Compression (FOR TRANSFER GEAR SHIFT FORK NO.2)
90045-01267	Spring, Compression (FOR TRANSFER GEAR SHIFT FORK NO.2) 2011-12 → —	S211	¥120
36314 — Shaft, Transfer High And Low Shift Fork
36314-87507	Shaft, Transfer High And Low Shift Fork 2011-12 → —	S211 ATM;S211 MTM EXT	¥2,420
36314-87507 note	Shaft, Transfer High And Low Shift Fork 2011-12 → —	S211 MTM SPL	¥2,420
36314-B5010	Shaft, Transfer High And Low Shift Fork 2011-12 → —	S211 MTM SPL	¥1,500
36314A — Ring, O (FOR TRANSFER SHIFT FORK SHAFT)
96711-19009	Ring, O (FOR TRANSFER SHIFT FORK SHAFT) 2011-12 → —	S211	¥120
36315D — Head, Transfer Gear Shift, NO.1
36316-87505	Head, Transfer Gear Shift, NO.1 2011-12 → —	S211	¥3,920
36415B — Cover, Diaphragm Cylinder
36415-87501	Cover, Diaphragm Cylinder 2011-12 → —	S211	¥1,830
82715U — Bracket, Wiring Harness Clamp
82715-B5060	Bracket, Wiring Harness Clamp 2011-12 → 2014-07 ended	S211	¥270

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
