Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

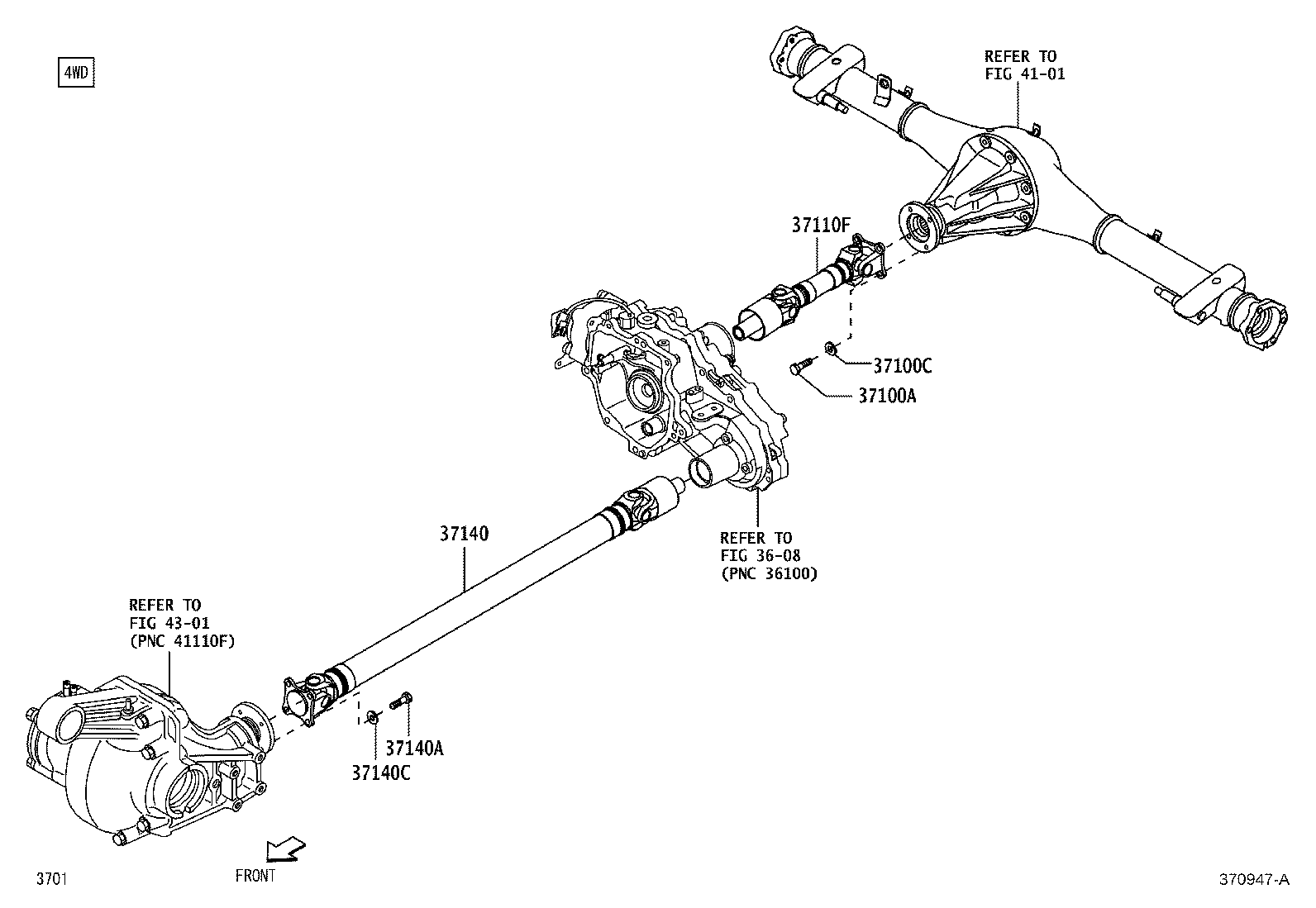

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

11 parts on this figure

Part number	Description	Fitment	Price
37100A — Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90041-01494 note	Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) 2011-12 → 2014-07 ended	S201,211	¥180
37100C — Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
94512-01000	Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) 2011-12 → 2014-07 ended	S201,211	¥90
37110F — Shaft Assy, Propeller, Rear
37110-97513	Shaft Assy, Propeller, Rear 2011-12 → —	S211 ATM;S211 MTM EXT	¥28,700
37110-97513 note	Shaft Assy, Propeller, Rear 2011-12 → —	S211 MTM SPL	¥28,700
37110-B5030	Shaft Assy, Propeller, Rear 2011-12 → —	S211 MTM SPL	¥26,000
37110-B5100	Shaft Assy, Propeller, Rear 2011-12 → —	S201	¥28,700
37140 — Shaft Assy, Propeller, Front
37140-B5010	Shaft Assy, Propeller, Front 2011-12 → —	S211 MTM SPL	¥59,300
37140-B5020	Shaft Assy, Propeller, Front 2011-12 → —	S211 ATM;S211 MTM EXT	¥59,300
37140-B5020 note	Shaft Assy, Propeller, Front 2011-12 → —	S211 MTM SPL	¥59,300
37140A — Bolt (F0R FRONT PROPELLER SHAFT)
90041-01494 note	Bolt (F0R FRONT PROPELLER SHAFT) 2011-12 → 2014-07 ended	S211	¥180
37140C — Washer (F0R FRONT PROPELLER SHAFT)
94512-01000	Washer (F0R FRONT PROPELLER SHAFT) 2011-12 → 2014-07 ended	S211	¥90

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
