Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

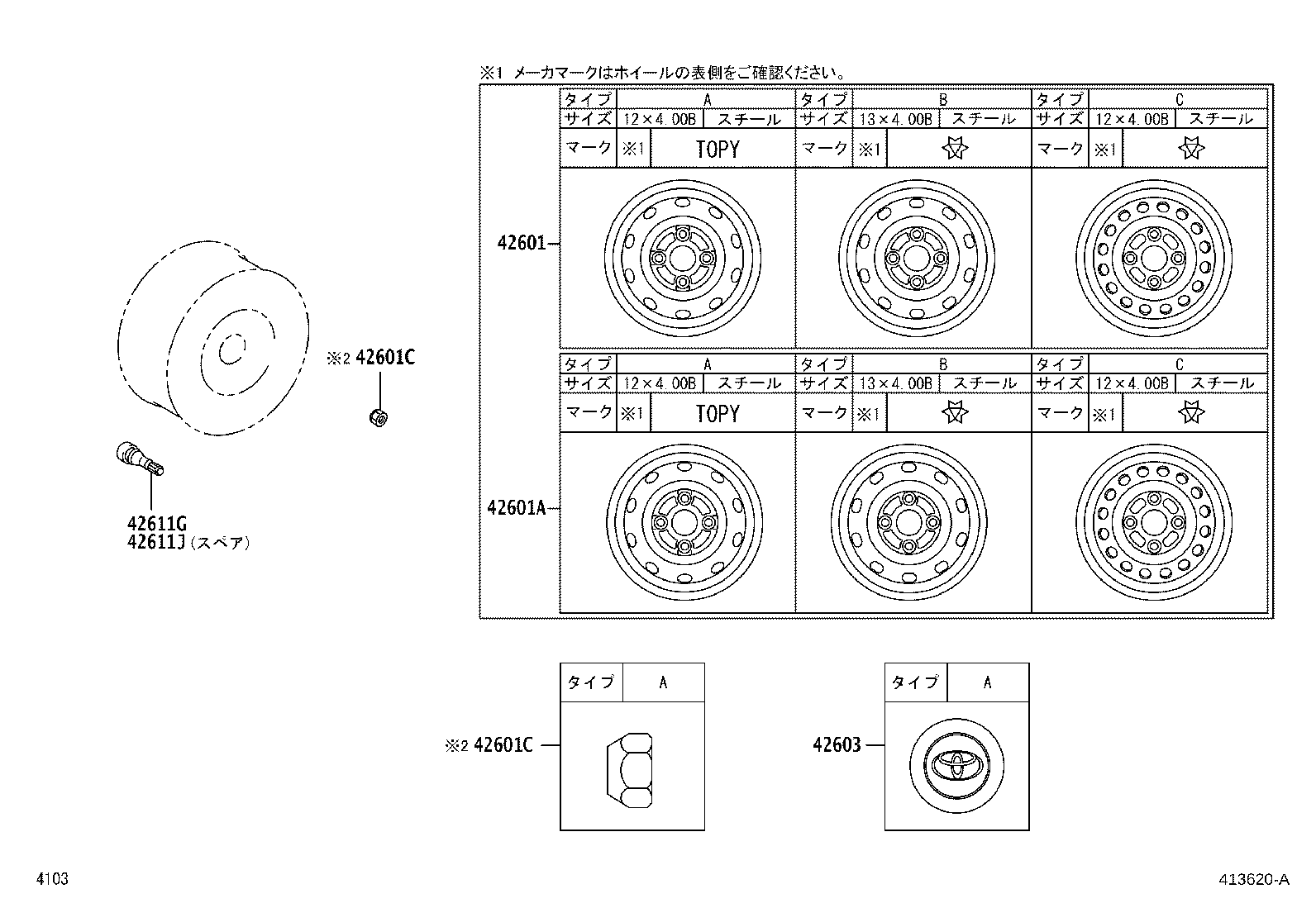

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42601 — Wheel, Disc | ||||
| 42611-97521 note |
Wheel, Disc
2011-12 → 2014-07
ended
|
S211 | ¥6,900 | |
| 42611-B5020 note |
Wheel, Disc
2011-12 → 2014-07
ended
|
S201,211 | ¥4,850 | |
| 42611-B5070 note |
Wheel, Disc
2011-12 → 2014-07
ended
|
S201,211 | ¥4,850 | |
| 42601A — Wheel, Disc (FOR SPARE) | ||||
| 42611-97521 note |
Wheel, Disc (FOR SPARE)
2011-12 → —
|
S211 | ¥6,900 | |
| 42611-B5020 note |
Wheel, Disc (FOR SPARE)
2011-12 → —
|
S201,211 | ¥4,850 | |
| 42611-B5070 note |
Wheel, Disc (FOR SPARE)
2011-12 → —
|
S201,211 | ¥4,850 | |
| 42601C — Nut, Hub (FOR AXLE) | ||||
| 90049-11036 note |
Nut, Hub (FOR AXLE)
2011-12 → 2014-07
ended
|
S201,211 | ¥200 | |
| 42603 — Ornament Sub-assy, Wheel Hub | ||||
| 42638-B5040 note |
Ornament Sub-assy, Wheel Hub
2011-12 → —
|
S211 | ¥1,080 | |
| 42638-B5050 note |
Ornament Sub-assy, Wheel Hub
2011-12 → —
|
S201,211 | ¥840 | |
| 42611G — Valve (FOR TUBELESS TIRE) | ||||
| 90049-02019 |
Valve (FOR TUBELESS TIRE)
2011-12 → —
|
S201,211 | ¥450 | |
| 42611J — Valve (FOR TUBELESS TIRE SPARE) | ||||
| 90049-02019 |
Valve (FOR TUBELESS TIRE SPARE)
2011-12 → —
|
S201,211 | ¥450 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
