Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

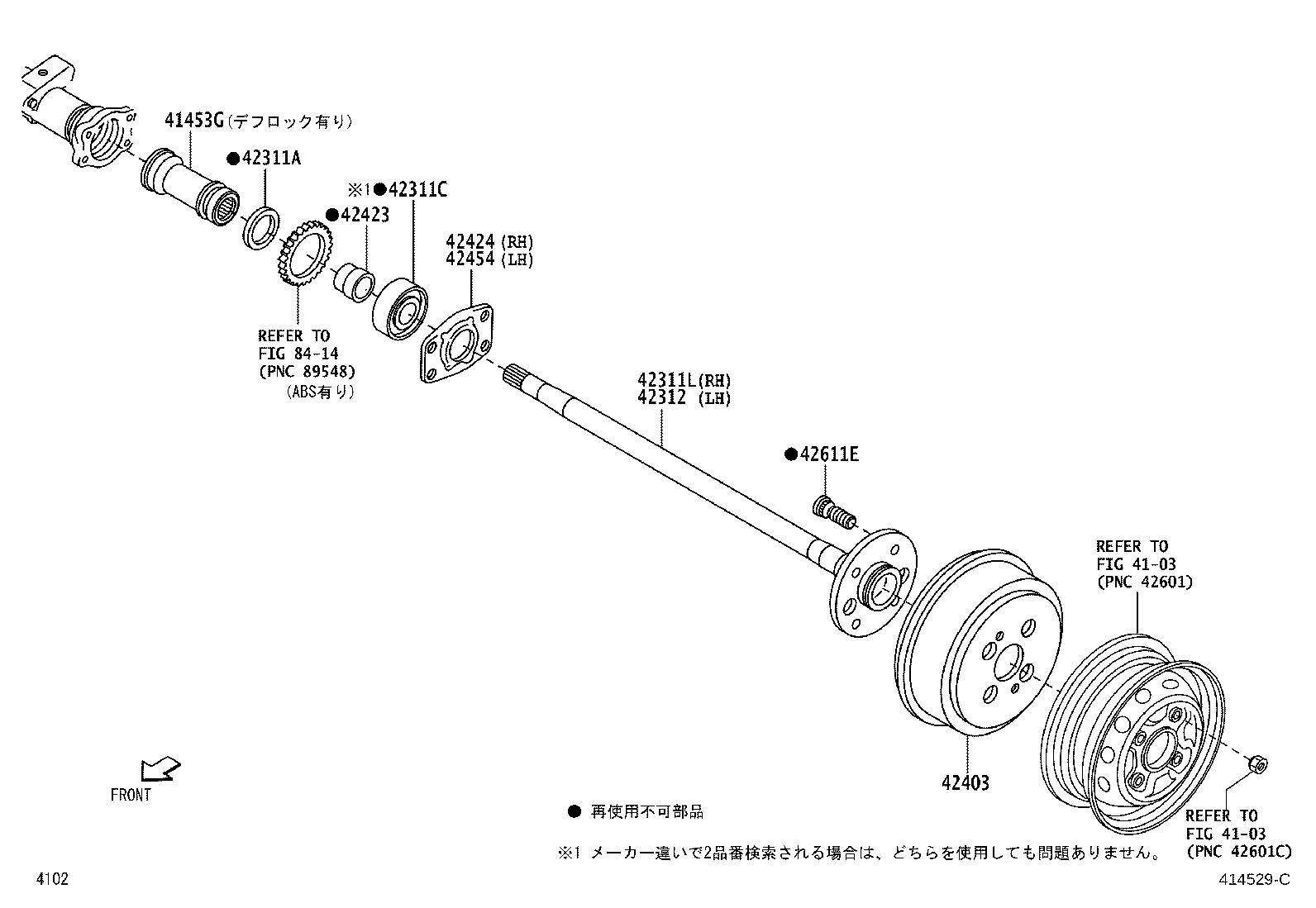

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41453G — Sleeve, Differential Lock | ||||
| 41453-B5010 |
Sleeve, Differential Lock
2011-12 → —
|
S211 MTM EXT | ¥6,500 | |
| 41453-B5010 note |
Sleeve, Differential Lock
2011-12 → —
|
S201 MTM;S211 MTM SPL | ¥6,500 | |
| 41453-B5010 note |
Sleeve, Differential Lock
2011-12 → 2012-12
ended
|
S201 MTM;S211 MTM SPL | ¥6,500 | |
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90043-11291 |
Seal, Oil(FOR REAR AXLE SHAFT)
2011-12 → 2012-07
ended
|
S201,211 | ¥330 | |
| 90043-11417 |
Seal, Oil(FOR REAR AXLE SHAFT)
2012-08 → —
|
S201,211 | ¥460 | |
| 42311C — Bearing(FOR REAR AXLE SHAFT) | ||||
| 90043-63248 note |
Bearing(FOR REAR AXLE SHAFT)
2011-12 → —
|
S201,211 | ¥3,700 | |
| 90043-63263 note |
Bearing(FOR REAR AXLE SHAFT)
2011-12 → —
|
S201,211 | ¥2,400 | |
| 42311L — Shaft, Rear Axle, RH | ||||
| 42311-B5010 |
Shaft, Rear Axle, RH
2011-12 → 2014-07
ended
|
S201,211 | ¥12,000 | |
| 42312 — Shaft, Rear Axle, LH | ||||
| 42312-B5010 |
Shaft, Rear Axle, LH
2011-12 → —
|
S201;S211 ATM;S211 MTM SPL | ¥12,000 | |
| 42312-B5020 |
Shaft, Rear Axle, LH
2011-12 → —
|
S211 MTM EXT | ¥12,000 | |
| 42312-B5020 note |
Shaft, Rear Axle, LH
2011-12 → —
|
S201 MTM;S211 MTM SPL | ¥12,000 | |
| 42312-B5020 note |
Shaft, Rear Axle, LH
2011-12 → 2012-12
ended
|
S201 MTM;S211 MTM SPL | ¥12,000 | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-97501 |
Drum Sub-assy, Rear Brake
2011-12 → —
|
S201,211 | ¥11,700 | |
| 42423 — Retainer, Rear Axle Bearing, Inner | ||||
| 42423-87401 |
Retainer, Rear Axle Bearing, Inner
2011-12 → —
|
S201,211 | ¥1,490 | |
| 42423-97502 note |
Retainer, Rear Axle Bearing, Inner
2011-12 → 2012-12
ended
|
S201 MTM;S211 MTM SPL | ¥1,790 | |
| 42423-97502 note |
Retainer, Rear Axle Bearing, Inner
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥1,790 | |
| 42423-97502 note |
Retainer, Rear Axle Bearing, Inner
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥1,790 | |
| 42424 — Retainer, Rear Axle Bearing, Outer, RH | ||||
| 42424-97501 |
Retainer, Rear Axle Bearing, Outer, RH
2011-12 → —
|
S201,211 | ¥650 | |
| 42454 — Retainer, Rear Axle Bearing, Outer, LH | ||||
| 42424-97501 |
Retainer, Rear Axle Bearing, Outer, LH
2011-12 → —
|
S201,211 | ¥650 | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90049-12055 |
Bolt, Hub (FOR REAR AXLE)
2011-12 → —
|
S201,211 | ¥220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
