Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

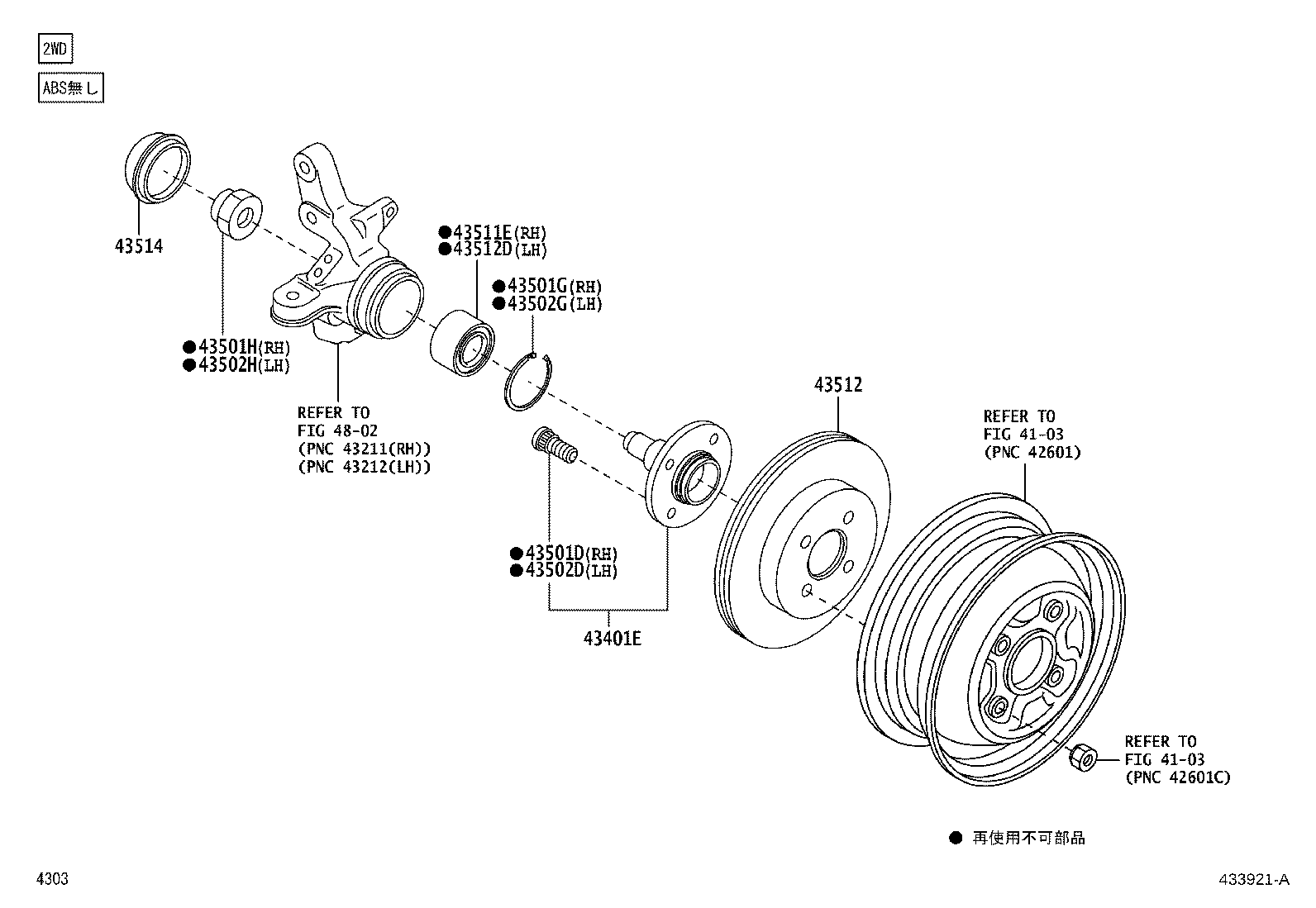

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 43401E — Spindle Sub-assy, Steering | ||||
| 43401-97501 |
Spindle Sub-assy, Steering
2011-12 → —
|
S201 | ¥7,800 | |
| 43401-B5010 note |
Spindle Sub-assy, Steering
2011-12 → —
|
S201 MTM | ¥10,900 | |
| 43401-B5010 note |
Spindle Sub-assy, Steering
2011-12 → 2012-12
ended
|
S201 ATM | ¥10,900 | |
| 43501D — Bolt, Hub (FOR FRONT AXLE RH) | ||||
| 90049-12056 note |
Bolt, Hub (FOR FRONT AXLE RH)
2011-12 → 2014-07
ended
|
S201,211 | ¥270 | |
| 43501G — Ring, Hole Snap (FOR FRONT AXLE HUB RH) | ||||
| 90045-21163 |
Ring, Hole Snap (FOR FRONT AXLE HUB RH)
2011-12 → —
|
S201,211 | ¥600 | |
| 43501H — Nut (FOR FRONT AXLE SHAFT RH) | ||||
| 90041-78071 note |
Nut (FOR FRONT AXLE SHAFT RH)
2011-12 → 2014-07
ended
|
S201 | ¥940 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT RH)
2011-12 → 2012-12
ended
|
S201 ATM | ¥450 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT RH)
2011-12 → 2014-07
ended
|
S211 | ¥450 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT RH)
2011-12 → 2014-07
ended
|
S201 MTM | ¥450 | |
| 43502D — Bolt, Hub (FOR FRONT AXLE LH) | ||||
| 90049-12056 note |
Bolt, Hub (FOR FRONT AXLE LH)
2011-12 → 2014-07
ended
|
S201,211 | ¥270 | |
| 43502G — Ring, Hole Snap (FOR FRONT AXLE HUB LH) | ||||
| 90045-21163 |
Ring, Hole Snap (FOR FRONT AXLE HUB LH)
2011-12 → —
|
S201,211 | ¥600 | |
| 43502H — Nut (FOR FRONT AXLE SHAFT LH) | ||||
| 90041-78071 note |
Nut (FOR FRONT AXLE SHAFT LH)
2011-12 → 2014-07
ended
|
S201 | ¥940 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT LH)
2011-12 → 2012-12
ended
|
S201 ATM | ¥450 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT LH)
2011-12 → 2014-07
ended
|
S211 | ¥450 | |
| 90041-79274 note |
Nut (FOR FRONT AXLE SHAFT LH)
2011-12 → 2014-07
ended
|
S201 MTM | ¥450 | |
| 43511E — Bearing (FOR FRONT AXLE HUB RH) | ||||
| 90043-63303 |
Bearing (FOR FRONT AXLE HUB RH)
2011-12 → 2014-07
ended
|
S201,211 | ¥4,150 | |
| 43512 — Disc, Front | ||||
| 43512-97503 |
Disc, Front
2011-12 → —
|
S201,211 | ¥6,300 | |
| 43512D — Bearing (FOR FRONT AXLE HUB LH) | ||||
| 90043-63303 |
Bearing (FOR FRONT AXLE HUB LH)
2011-12 → 2014-07
ended
|
S201,211 | ¥4,150 | |
| 43514 — Cap, Front Hub Grease | ||||
| 43514-97501 |
Cap, Front Hub Grease
2011-12 → —
|
S201 | ¥690 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
