Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

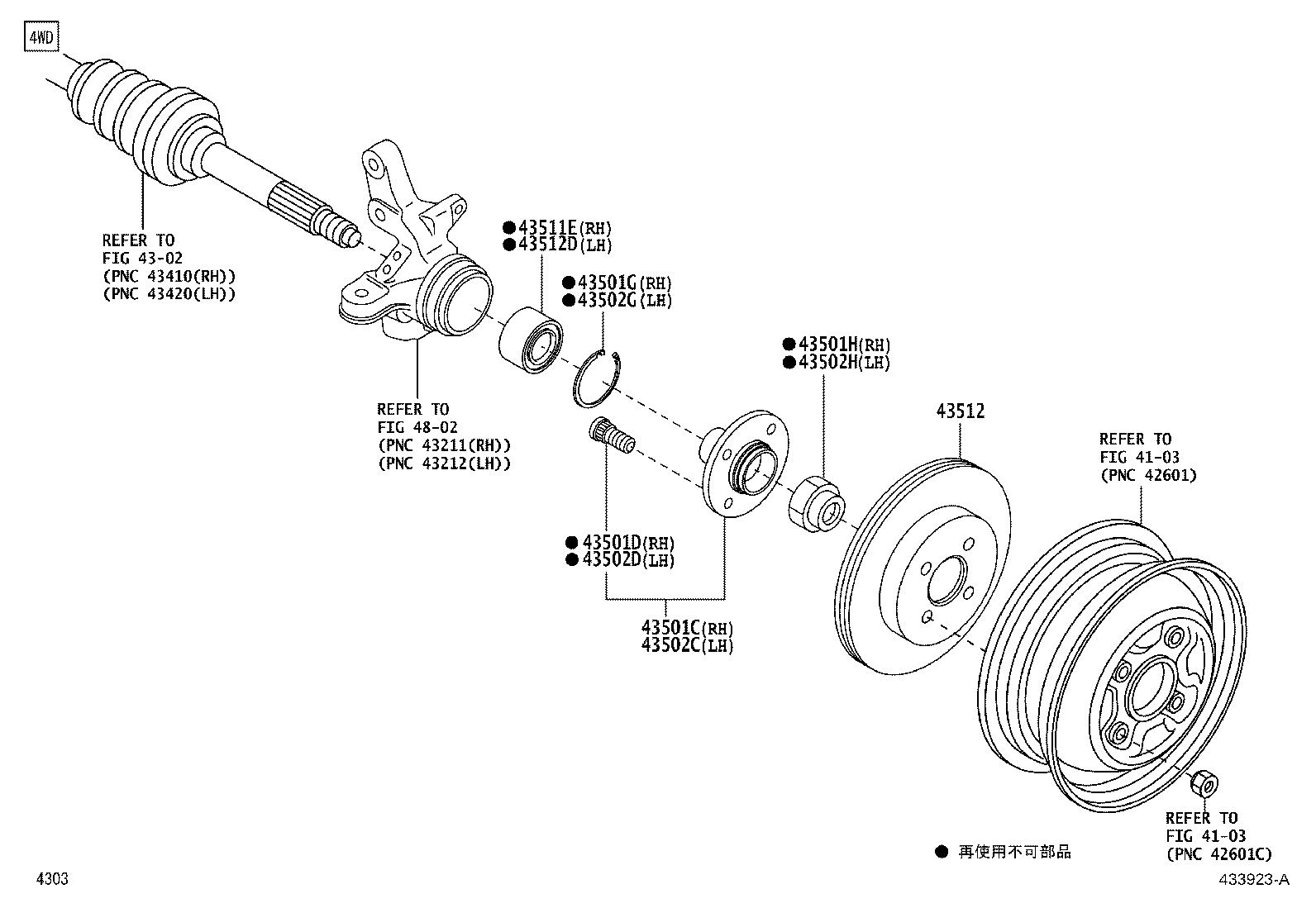

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

21 parts on this figure

Part number	Description	Fitment	Price
43501C — Hub Sub-assy, Front Axle, RH
43502-B5020	Hub Sub-assy, Front Axle, RH 2011-12 → 2014-07 ended	S211	¥6,200
43502-B5020 note	Hub Sub-assy, Front Axle, RH 2011-12 → 2014-07 ended	S201 MTM	¥6,200
43502-B5020 note	Hub Sub-assy, Front Axle, RH 2011-12 → 2012-12 ended	S201 ATM	¥6,200
43501D — Bolt, Hub (FOR FRONT AXLE RH)
90049-12056 note	Bolt, Hub (FOR FRONT AXLE RH) 2011-12 → 2014-07 ended	S201,211	¥270
43501G — Ring, Hole Snap (FOR FRONT AXLE HUB RH)
90045-21163	Ring, Hole Snap (FOR FRONT AXLE HUB RH) 2011-12 → —	S201,211	¥600
43501H — Nut (FOR FRONT AXLE SHAFT RH)
90041-78071 note	Nut (FOR FRONT AXLE SHAFT RH) 2011-12 → 2014-07 ended	S201	¥940
90041-79274 note	Nut (FOR FRONT AXLE SHAFT RH) 2011-12 → 2012-12 ended	S201 ATM	¥450
90041-79274 note	Nut (FOR FRONT AXLE SHAFT RH) 2011-12 → 2014-07 ended	S211	¥450
90041-79274 note	Nut (FOR FRONT AXLE SHAFT RH) 2011-12 → 2014-07 ended	S201 MTM	¥450
43502C — Hub Sub-assy, Front Axle, LH
43502-B5020	Hub Sub-assy, Front Axle, LH 2011-12 → —	S211	¥6,200
43502-B5020 note	Hub Sub-assy, Front Axle, LH 2011-12 → —	S201 MTM	¥6,200
43502-B5020 note	Hub Sub-assy, Front Axle, LH 2011-12 → 2012-12 ended	S201 ATM	¥6,200
43502D — Bolt, Hub (FOR FRONT AXLE LH)
90049-12056 note	Bolt, Hub (FOR FRONT AXLE LH) 2011-12 → 2014-07 ended	S201,211	¥270
43502G — Ring, Hole Snap (FOR FRONT AXLE HUB LH)
90045-21163	Ring, Hole Snap (FOR FRONT AXLE HUB LH) 2011-12 → —	S201,211	¥600
43502H — Nut (FOR FRONT AXLE SHAFT LH)
90041-78071 note	Nut (FOR FRONT AXLE SHAFT LH) 2011-12 → 2014-07 ended	S201	¥940
90041-79274 note	Nut (FOR FRONT AXLE SHAFT LH) 2011-12 → 2012-12 ended	S201 ATM	¥450
90041-79274 note	Nut (FOR FRONT AXLE SHAFT LH) 2011-12 → 2014-07 ended	S211	¥450
90041-79274 note	Nut (FOR FRONT AXLE SHAFT LH) 2011-12 → 2014-07 ended	S201 MTM	¥450
43511E — Bearing (FOR FRONT AXLE HUB RH)
90043-63303	Bearing (FOR FRONT AXLE HUB RH) 2011-12 → 2014-07 ended	S201,211	¥4,150
43512 — Disc, Front
43512-97503	Disc, Front 2011-12 → —	S201,211	¥6,300
43512D — Bearing (FOR FRONT AXLE HUB LH)
90043-63303	Bearing (FOR FRONT AXLE HUB LH) 2011-12 → 2014-07 ended	S201,211	¥4,150

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
