Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

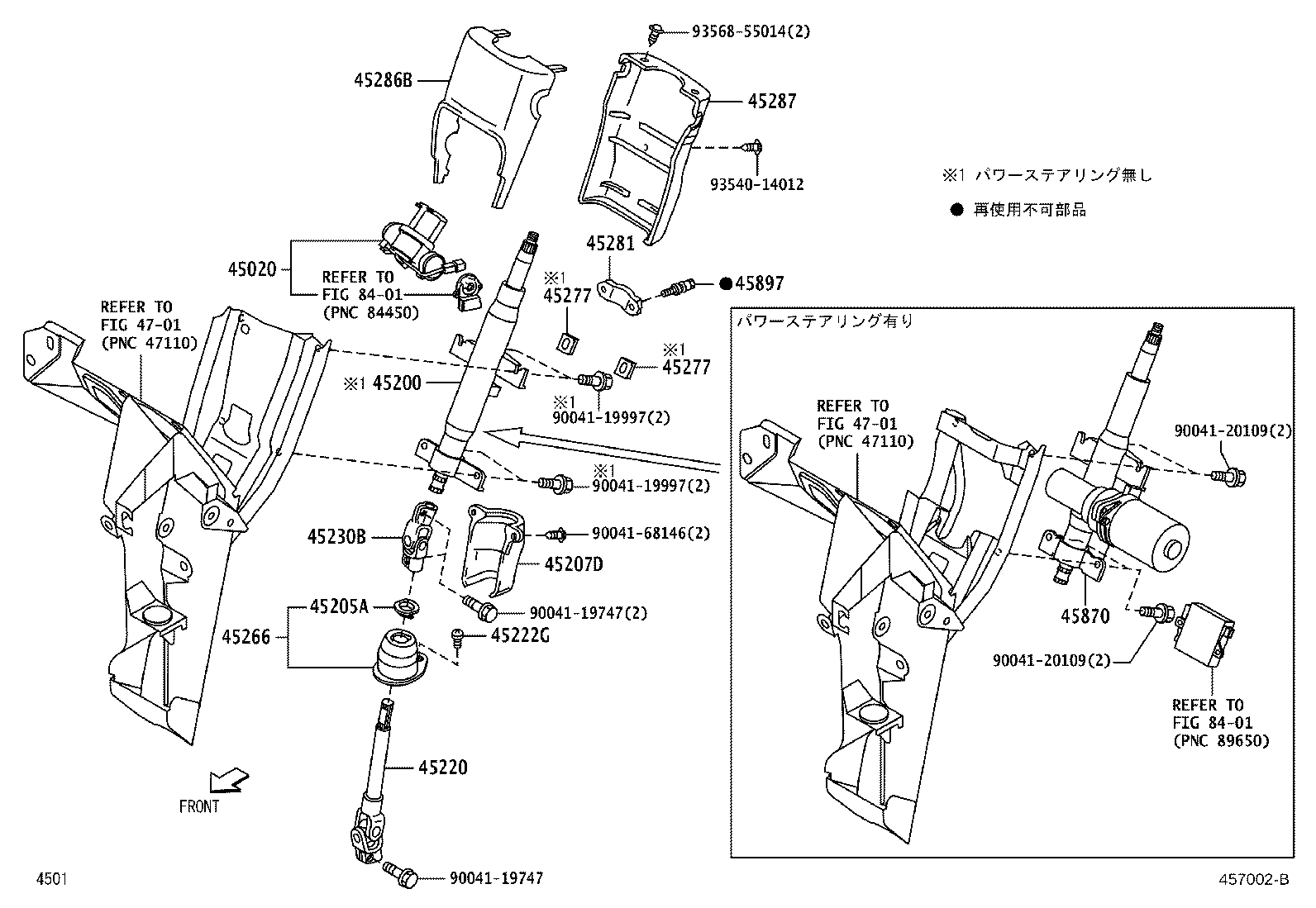

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45020 — Bracket Assy, Steering Column Upper W/Switch | ||||
| 45020-B5030 |
Bracket Assy, Steering Column Upper W/Switch
2011-12 → —
|
S201,211 MTM | ¥18,900 | |
| 45020-B5040 |
Bracket Assy, Steering Column Upper W/Switch
2011-12 → —
|
S201,211 ATM | ¥20,700 | |
| 45200 — Post Assy, Steering | ||||
| 45200-B5011 |
Post Assy, Steering
2011-12 → 2014-07
ended
|
S201,211 SPL | ¥21,500 | |
| 45205A — Bush(FOR STEERING COLUMN TUBE) | ||||
| 90043-85161 |
Bush(FOR STEERING COLUMN TUBE)
2011-12 → —
|
S201,211 | ¥540 | |
| 45207D — Cover Sub-assy, Main Shaft Joint | ||||
| 45233-97501 |
Cover Sub-assy, Main Shaft Joint
2011-12 → —
|
S201,211 | ¥1,150 | |
| 45220 — Shaft Assy, Steering Intermediate | ||||
| 45220-97501 |
Shaft Assy, Steering Intermediate
2011-12 → —
|
S201,211 | ¥9,300 | |
| 45222G — Clip, Dust Cover | ||||
| 90044-68261 |
Clip, Dust Cover
2011-12 → —
|
S201,211 | ¥440 | |
| 45230B — Joint Assy, Steering Shaft Universal | ||||
| 45230-97502 |
Joint Assy, Steering Shaft Universal
2011-12 → —
|
S201,211 | ¥7,400 | |
| 45266 — Cover, Steering Intermediate Shaft Dust | ||||
| 45028-97501 |
Cover, Steering Intermediate Shaft Dust
2011-12 → —
|
S201,211 | ¥1,380 | |
| 45277 — Plate, Steering Column Upper Attachment | ||||
| 45277-97501 |
Plate, Steering Column Upper Attachment
2011-12 → —
|
S201,211 SPL | ¥690 | |
| GAITO-NASHI note |
Plate, Steering Column Upper Attachment
2011-12 → 2014-07
ended
|
S201,211 SPL | — | |
| 45281 — Housing, Steering Column | ||||
| 45281-B5020 |
Housing, Steering Column
2011-12 → —
|
S201,211 | ¥1,700 | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-B5020-B0 note |
Cover, Steering Column, Upr
2011-12 → —
|
S201,211 | ¥1,820 | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45287-B5020-B0 note |
Cover, Steering Column, Lwr
2011-12 → —
|
S201,211 | ¥3,200 | |
| 45870 — Tube Assy, Steering Column | ||||
| 45870-B5011 |
Tube Assy, Steering Column
2011-12 → 2012-10
ended
|
S201,211 EXT | ¥61,400 | |
| 45870-B5011 note |
Tube Assy, Steering Column
2011-12 → 2012-10
ended
|
S201,211 SPL | ¥61,400 | |
| 45870-B5012 |
Tube Assy, Steering Column
2012-11 → —
|
S201,211 EXT | ¥98,100 | |
| 45870-B5012 note |
Tube Assy, Steering Column
2012-11 → —
|
S201,211 SPL | ¥98,100 | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-B5010 |
Bolt, Steering Lock Set
2011-12 → —
|
S201,211 | ¥330 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
