Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

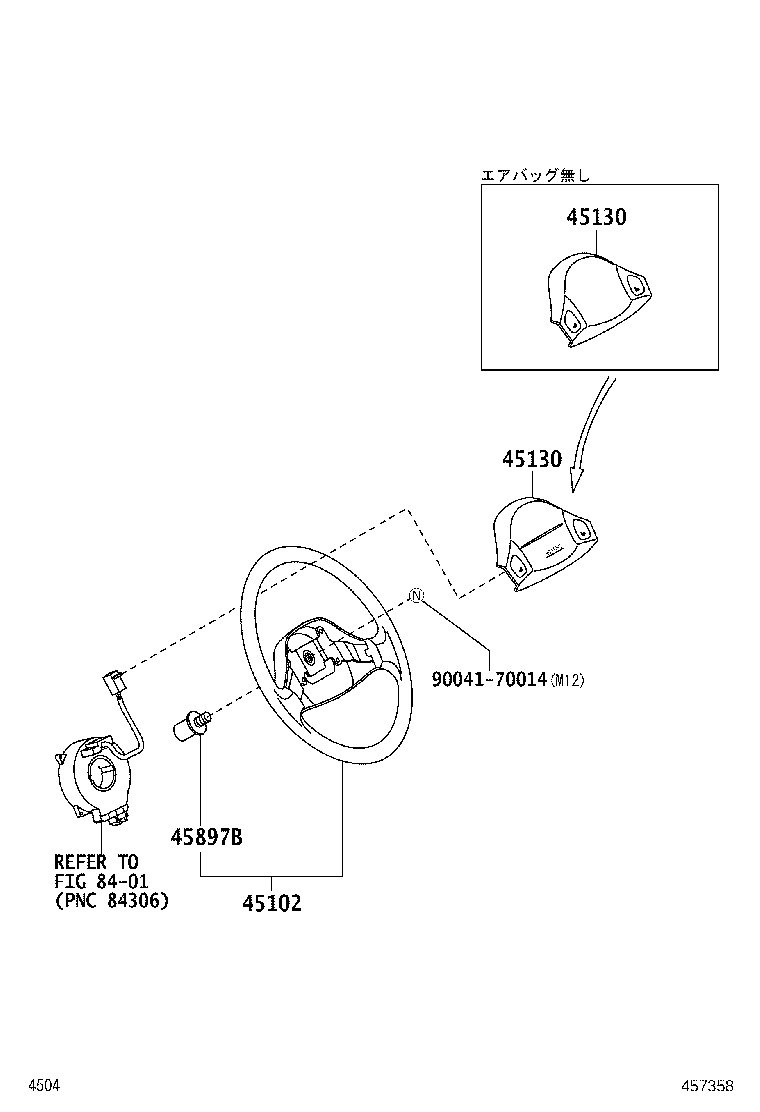

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45102 — Wheel Sub-assy, Steering | ||||
| 45102-97502-B0 note |
Wheel Sub-assy, Steering
2011-12 → 2014-07
ended
|
S201,211 | ¥34,900 | |
| 45102-B5030-B0 note |
Wheel Sub-assy, Steering
2011-12 → 2014-07
ended
|
S201,211 | ¥34,900 | |
| 45102-B5030-B0 note |
Wheel Sub-assy, Steering
2011-12 → 2014-07
ended
|
S201,211 | ¥34,900 | |
| 45130 — Button Assy, Horn | ||||
| 45130-B5120-B0 note |
Button Assy, Horn
2011-12 → —
|
S201,211 | ¥4,740 | |
| 45130-B5130-B0 note |
Button Assy, Horn
2011-12 → —
|
S201,211 | ¥41,800 | |
| 45130-B5130-B0 note |
Button Assy, Horn
2011-12 → —
|
S201,211 | ¥41,800 | |
| 45897B — Bolt, Steering Lock Set | ||||
| 45897-97201 |
Bolt, Steering Lock Set
2011-12 → 2014-07
ended
|
S201,211 | ¥530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
