Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

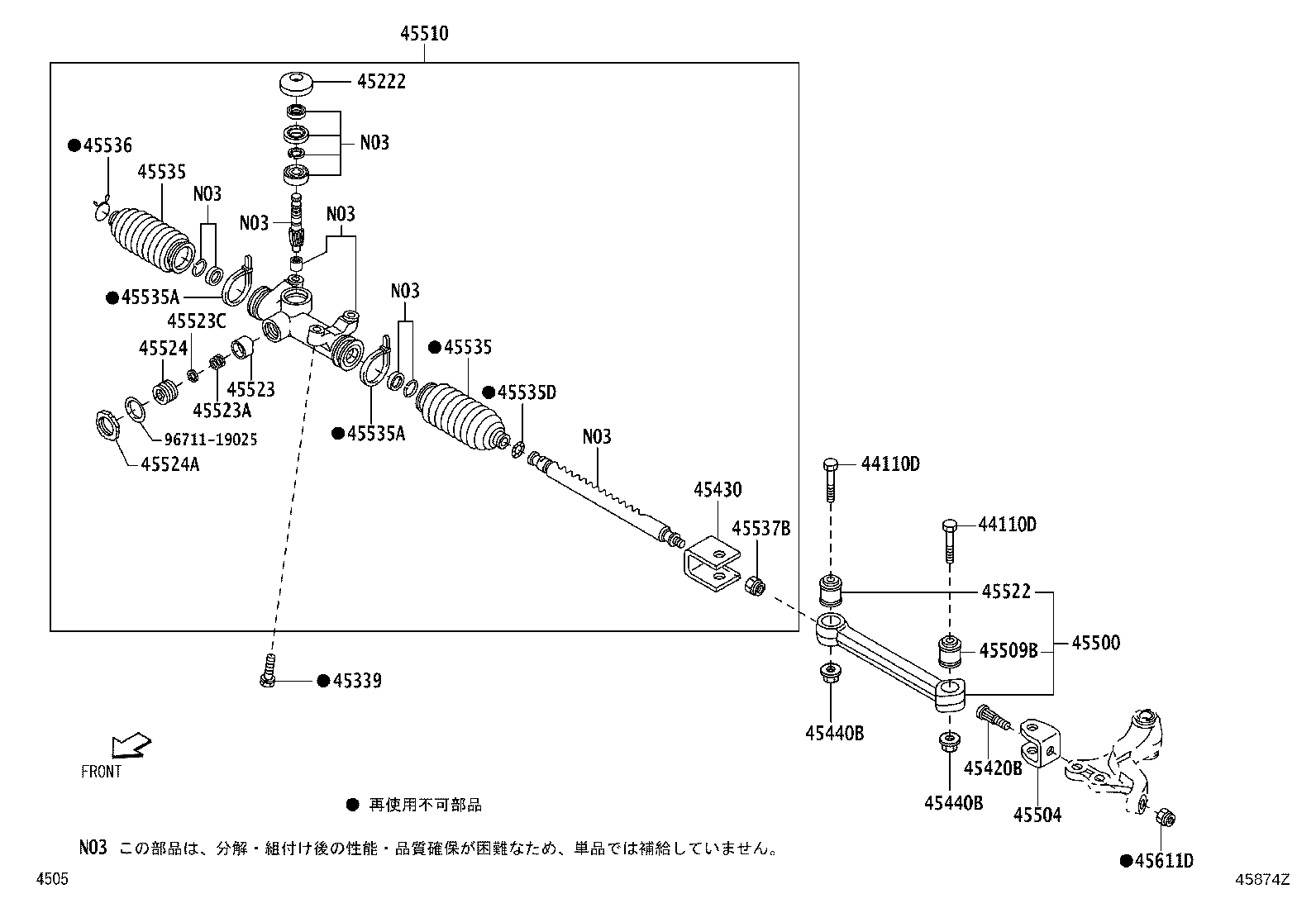

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44110D — Bolt(FOR POWER STEERING GEAR) | ||||
| 90041-01649 note |
Bolt(FOR POWER STEERING GEAR)
2011-12 → 2014-07
ended
|
S201,211 | ¥520 | |
| 45222 — Cover, Steering Gear Dust | ||||
| 45222-97504 |
Cover, Steering Gear Dust
2011-12 → —
|
S201,211 | ¥490 | |
| 45339 — Bolt, Steering Gear Housing | ||||
| 90041-05165 note |
Bolt, Steering Gear Housing
2011-12 → 2014-07
ended
|
S201,211 | ¥150 | |
| 45420B — Bolt(FOR STEERING CENTER ARM) | ||||
| 45445-97501 |
Bolt(FOR STEERING CENTER ARM)
2011-12 → —
|
S201,211 | ¥1,080 | |
| 45430 — End Assy, Steering Drag Link(FOR PITMAN ARM) | ||||
| 45442-87503 |
End Assy, Steering Drag Link(FOR PITMAN ARM)
2011-12 → —
|
S201,211 | ¥2,790 | |
| 45440B — Nut, Castle(FOR STEERING DRAG LINK) | ||||
| 90041-70349 note |
Nut, Castle(FOR STEERING DRAG LINK)
2011-12 → 2014-07
ended
|
S201,211 | ¥420 | |
| 45500 — Link Assy, Steering | ||||
| 45054-97502 |
Link Assy, Steering
2011-12 → —
|
S201,211 | ¥7,400 | |
| 45504 — End Sub-assy, Steering Rack, NO.2 | ||||
| 45443-97501 |
End Sub-assy, Steering Rack, NO.2
2011-12 → —
|
S201,211 | ¥2,320 | |
| 45509B — Bush(FOR STEERING PINION) | ||||
| 45454-87501 |
Bush(FOR STEERING PINION)
2011-12 → —
|
S201,211 | ¥1,170 | |
| 45510 — Gear Assy, Steering | ||||
| 45510-B5010 |
Gear Assy, Steering
2011-12 → —
|
S201,211 | ¥37,000 | |
| 45522 — Bush, Steering Rack | ||||
| 90043-85163 |
Bush, Steering Rack
2011-12 → —
|
S201,211 | ¥2,270 | |
| 45523 — Guide, Rack(FOR STEERING GEAR) | ||||
| 45523-B1030 |
Guide, Rack(FOR STEERING GEAR)
2011-12 → —
|
S201,211 | ¥800 | |
| 45523A — Spring(FOR STEERING GEAR RACK GUIDE) | ||||
| 90045-01256 |
Spring(FOR STEERING GEAR RACK GUIDE)
2011-12 → —
|
S201,211 | ¥480 | |
| 45523C — Spacer(FOR RACK GUIDE) | ||||
| 90042-08036 |
Spacer(FOR RACK GUIDE)
2011-12 → 2014-07
ended
|
S201,211 | ¥200 | |
| 45524 — Cap, Steering Rack Guide Spring | ||||
| 45524-87503 |
Cap, Steering Rack Guide Spring
2011-12 → —
|
S201,211 | ¥890 | |
| 45524A — Nut(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90041-70277 note |
Nut(FOR STEERING RACK GUIDE SPRING CAP)
2011-12 → 2014-07
ended
|
S201,211 | ¥450 | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-87509 |
Boot, Steering Rack, NO.1
2011-12 → —
|
S201,211 | ¥3,560 | |
| 45535A — Clamp(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
Clamp(FOR STEERING RACK BOOT)
2011-12 → 2012-11
ended
|
S201,211 | ¥410 | |
| 45538-B2020 |
Clamp(FOR STEERING RACK BOOT)
2012-12 → —
|
S201,211 | ¥330 | |
| 45535D — Clamp(FOR STEERING RACK BOOT NO.1) | ||||
| 45536-87503 |
Clamp(FOR STEERING RACK BOOT NO.1)
2011-12 → —
|
S201,211 | ¥430 | |
| 45536 — Boot, Steering Rack, NO.2 | ||||
| 45537-97501 |
Boot, Steering Rack, NO.2
2011-12 → —
|
S201,211 | ¥220 | |
| 45537B — Nut, Rack End Lock | ||||
| 90041-77019 note |
Nut, Rack End Lock
2011-12 → 2014-07
ended
|
S201,211 | ¥250 | |
| 45611D — Nut(FOR STEERING KNUCKLE ARM) | ||||
| 90041-78007 note |
Nut(FOR STEERING KNUCKLE ARM)
2011-12 → 2014-07
ended
|
S201,211 | ¥150 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
