Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

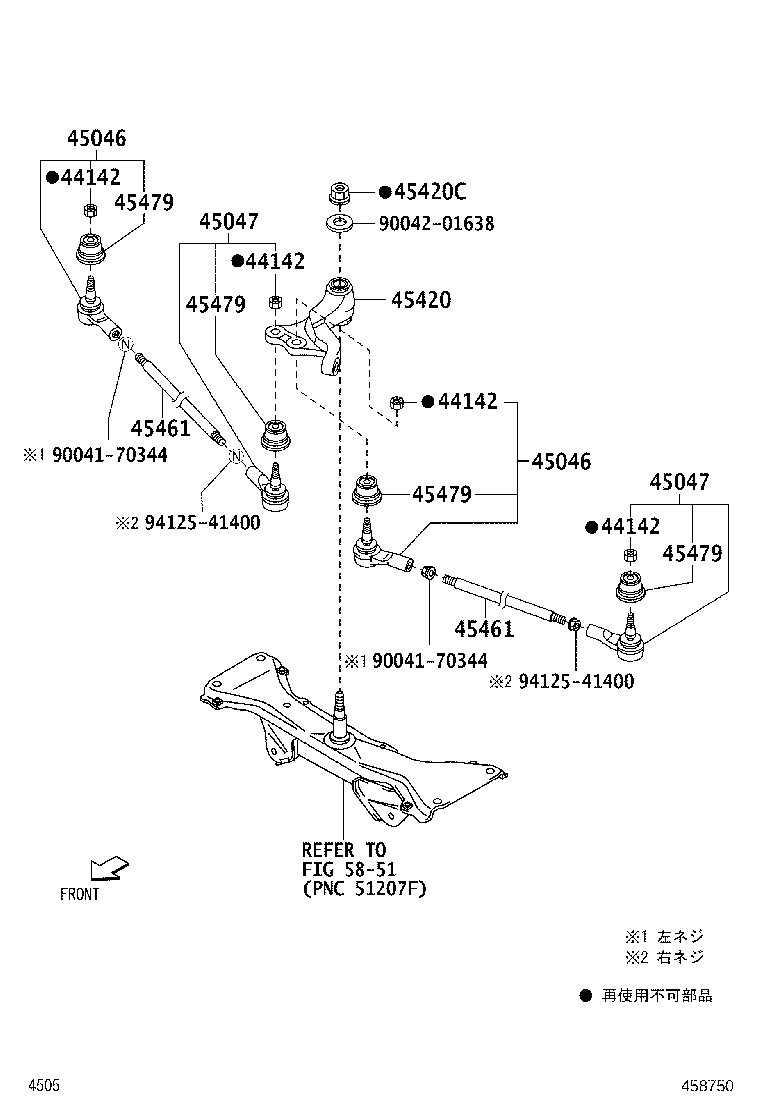

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44142 — Nut, Lock | ||||
| 90041-78058 note |
Nut, Lock
2011-12 → 2014-07
ended
|
S201,211 | ¥190 | |
| 45046 — End Sub-assy, Tie Rod, RH | ||||
| 45047-B9080 |
End Sub-assy, Tie Rod, RH
2011-12 → —
|
S201,211 | ¥4,740 | |
| 45047 — End Sub-assy, Tie Rod, LH | ||||
| 45046-B9100 |
End Sub-assy, Tie Rod, LH
2011-12 → —
|
S201,211 | ¥4,740 | |
| 45420 — Arm Assy, Steering Center | ||||
| 45402-B5010 |
Arm Assy, Steering Center
2011-12 → —
|
S201,211 | ¥18,400 | |
| 45420C — Nut(FOR STEERING CENTER ARM) | ||||
| 90041-78043 note |
Nut(FOR STEERING CENTER ARM)
2011-12 → 2014-07
ended
|
S201,211 | ¥610 | |
| 45461 — Rod, Steering Tie | ||||
| 45461-97501 |
Rod, Steering Tie
2011-12 → —
|
S201,211 | ¥4,950 | |
| 45479 — Seal, Steering Link Joint Dust | ||||
| 45479-87508 |
Seal, Steering Link Joint Dust
2011-12 → —
|
S201,211 | ¥700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
