Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

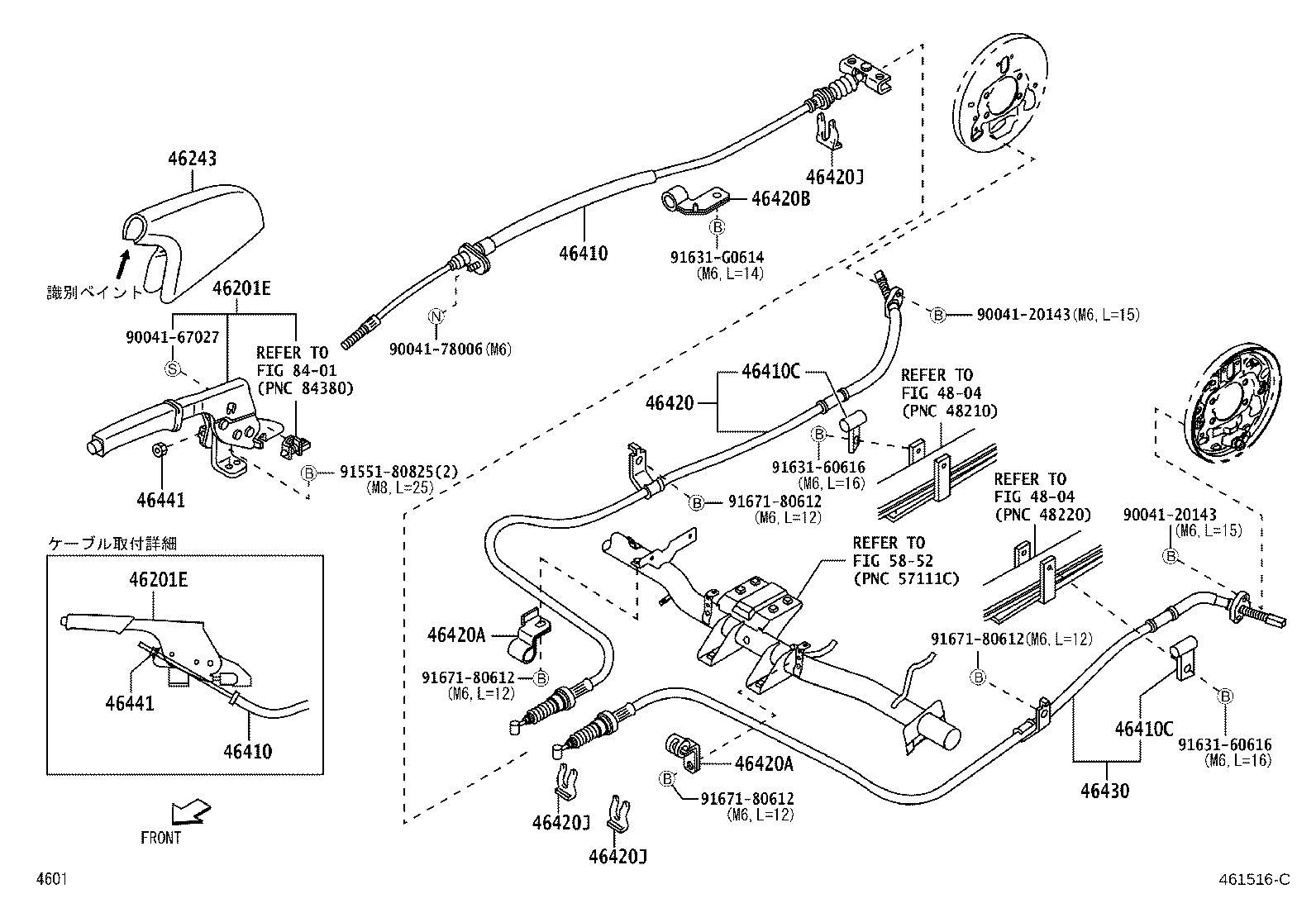

Exploded illustration 461516C 46201E — LEVER SUB-ASSY, PARKING BRAKE (3 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (1 parts) 46441 — NUT, WIRE ADJUSTING, NO.1 (1 parts) 9004178006 — not listed in this catalogue 91631G0614 — not listed in this catalogue 9004167027 — not listed in this catalogue 46201E — LEVER SUB-ASSY, PARKING BRAKE (3 parts) 46243 — COVER, PARKING BRAKE LEVER (1 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (1 parts) 46420B — CLAMP, NO.2(FOR PARKING BRAKE CABLE) (1 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (1 parts) 9167180612 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167180612 — not listed in this catalogue 9163160616 — not listed in this catalogue 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (1 parts) 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (1 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (1 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (1 parts) 8401 — not listed in this catalogue 5852 — not listed in this catalogue 4804 — not listed in this catalogue 4804 — not listed in this catalogue 46441 — NUT, WIRE ADJUSTING, NO.1 (1 parts) 9155180825 — not listed in this catalogue 9004120143 — not listed in this catalogue 9004120143 — not listed in this catalogue 9163160616 — not listed in this catalogue 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (1 parts) 46410C — CLAMP(FOR PARKING BRAKE FRONT CABLE) (1 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (1 parts) 46410C — CLAMP(FOR PARKING BRAKE FRONT CABLE) (1 parts)
461516C · 17 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
46201E — Lever Sub-assy, Parking Brake
46210-97502-B0 note Lever Sub-assy, Parking Brake
2011-12 → 2012-04 ended
S201,211 ¥4,330
46210-B5040-B0 note Lever Sub-assy, Parking Brake
2012-05 → 2014-01 ended
S201,211 ¥4,330
46210-B5041-B0 note Lever Sub-assy, Parking Brake
2014-02 → 2014-07 ended
S201,211 ¥5,400
46243 — Cover, Parking Brake Lever
46243-97501-B0 note Cover, Parking Brake Lever
2011-12 → 2014-07 ended
S201,211 ¥730
46410 — Cable Assy, Parking Brake, NO.1
46410-B5010 Cable Assy, Parking Brake, NO.1
2011-12 → —
S201,211 ¥5,500
46410C — Clamp(FOR PARKING BRAKE FRONT CABLE)
46411-B5010 Clamp(FOR PARKING BRAKE FRONT CABLE)
2011-12 → 2014-07 ended
S201,211 ¥210
46420 — Cable Assy, Parking Brake, NO.2
46420-B5010 Cable Assy, Parking Brake, NO.2
2011-12 → —
S201,211 ¥5,300
46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE)
90044-61755 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2011-12 → 2014-07 ended
S201,211 ¥320
46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE)
90044-61843 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2011-12 → 2014-07 ended
S201,211 ¥480
46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE)
90044-65038 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2011-12 → —
S201,211 ¥130
46430 — Cable Assy, Parking Brake, NO.3
46430-B5010 Cable Assy, Parking Brake, NO.3
2011-12 → —
S201,211 ¥5,300
46441 — Nut, Wire Adjusting, NO.1
94185-60600 note Nut, Wire Adjusting, NO.1
2011-12 → 2014-07 ended
S201,211 ¥70
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
