Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

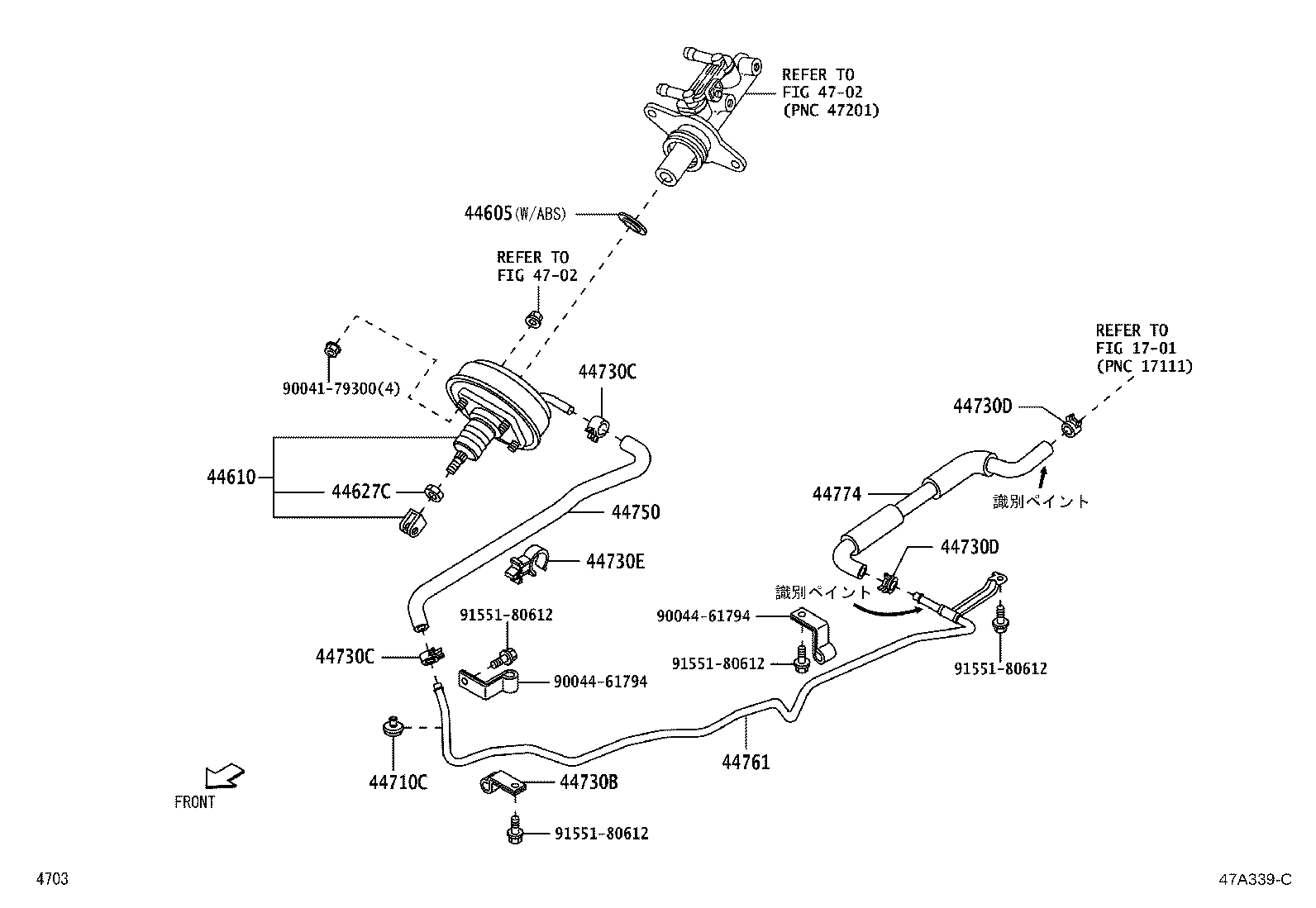

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44605 — Plate & Seal Sub-assy, Booster | ||||
| 04498-B5010 note |
Plate & Seal Sub-assy, Booster
2011-12 → 2014-07
ended
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥670 | |
| 04498-B5010 note |
Plate & Seal Sub-assy, Booster
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥670 | |
| 44610 — Booster Assy, Brake | ||||
| 44610-97504 |
Booster Assy, Brake
2011-12 → 2012-12
ended
|
S201,211 | ¥32,400 | |
| 44610-97505 note |
Booster Assy, Brake
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥30,900 | |
| 44610-97505 note |
Booster Assy, Brake
2011-12 → 2014-07
ended
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥30,900 | |
| 44610-B5150 |
Booster Assy, Brake
2012-12 → 2014-07
ended
|
S201,211 | ¥30,900 | |
| 44627C — Nut, Booster Sleeve Cylinder | ||||
| 94120-40800 note |
Nut, Booster Sleeve Cylinder
2011-12 → 2014-07
ended
|
S201,211 | ¥90 | |
| 94130-01002 note |
Nut, Booster Sleeve Cylinder
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥90 | |
| 94130-01002 note |
Nut, Booster Sleeve Cylinder
2011-12 → 2014-07
ended
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥90 | |
| 44710C — Grommet, Booster Air Cleaner Hose | ||||
| 90044-80645 |
Grommet, Booster Air Cleaner Hose
2011-12 → —
|
S201,211 | ¥220 | |
| 44730B — Clamp, Vacuum Hose | ||||
| 90044-62270 |
Clamp, Vacuum Hose
2011-12 → —
|
S201,211 | ¥150 | |
| 44730C — Clip(FOR VACUUM HOSE) | ||||
| 90044-67399 |
Clip(FOR VACUUM HOSE)
2011-12 → —
|
S201,211 | ¥140 | |
| 44730D — Clip(FOR VACUUM HOSE, NO.1) | ||||
| 90044-67161 |
Clip(FOR VACUUM HOSE, NO.1)
2013-08 → —
|
S201,211 | ¥140 | |
| 90044-67399 |
Clip(FOR VACUUM HOSE, NO.1)
2011-12 → 2013-07
ended
|
S201,211 | ¥140 | |
| 44730E — Clamp, Vacuum Check Valve | ||||
| 90044-64389 |
Clamp, Vacuum Check Valve
2011-12 → —
|
S201,211 | ¥190 | |
| 44750 — Hose Assy, Vacuum | ||||
| 44750-B5020 note |
Hose Assy, Vacuum
2011-12 → 2013-08
ended
|
S201,211 | ¥3,610 | |
| 44772-B5020 note |
Hose Assy, Vacuum
2013-08 → —
|
S201,211 | ¥2,120 | |
| 44761 — Tube, Intake Manifold OR Vacuum Pump TO Connector | ||||
| 44761-B5050 note |
Tube, Intake Manifold OR Vacuum Pump TO Connector
2011-12 → 2013-08
ended
|
S201,211 | ¥3,660 | |
| 44761-B5051 note |
Tube, Intake Manifold OR Vacuum Pump TO Connector
2013-08 → —
|
S201,211 | ¥4,280 | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44750-B5230 note |
Hose, Union TO Connector Tube
2013-08 → —
|
S201,211 | ¥2,790 | |
| 44774-B5070 note |
Hose, Union TO Connector Tube
2011-12 → 2013-08
ended
|
S201,211 | ¥1,650 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
