Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

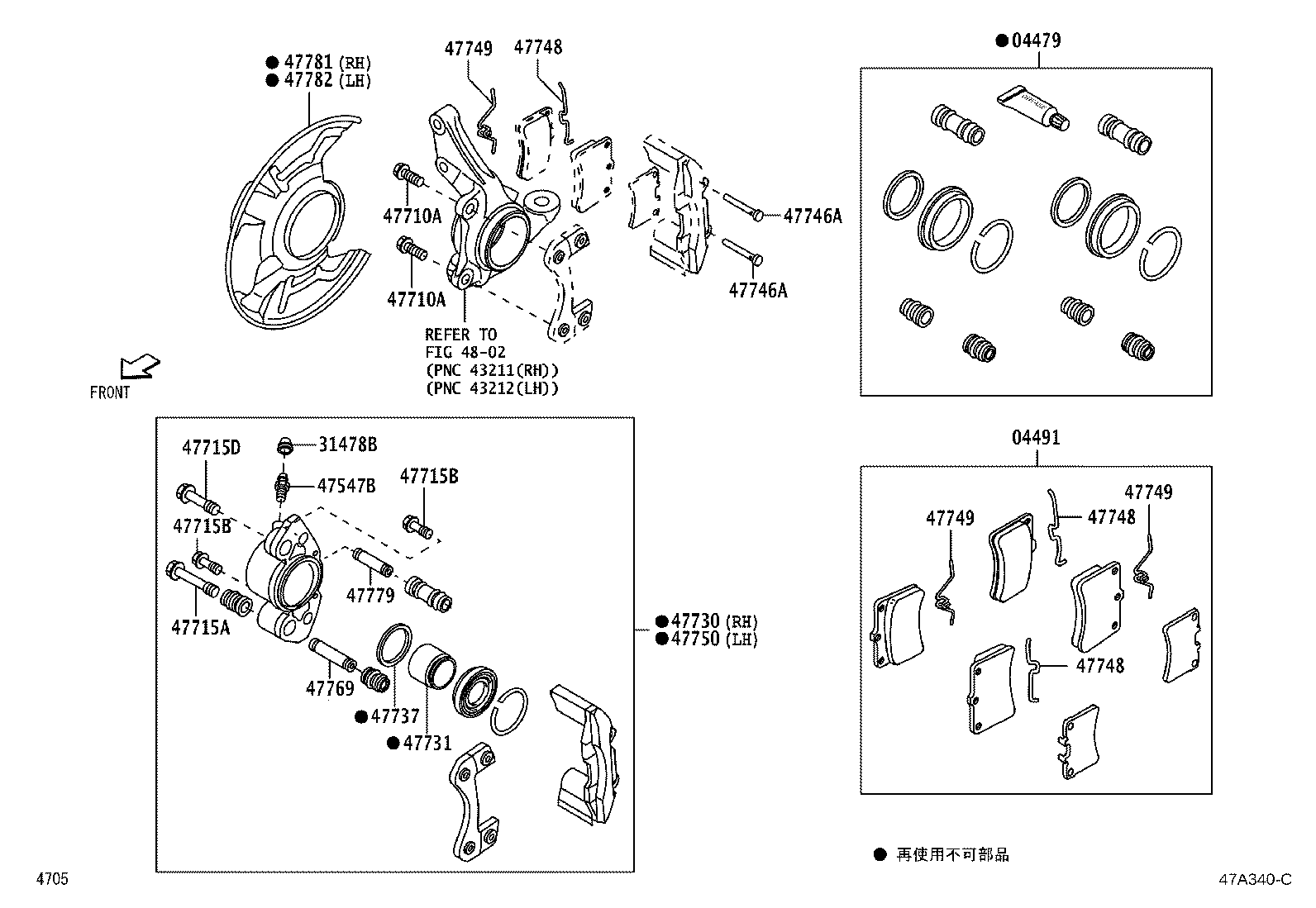

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04479 — Cylinder Kit, Disc Brake, Front | ||||
| 04478-B5020 |
Cylinder Kit, Disc Brake, Front
2011-12 → —
|
S201,211 | ¥3,050 | |
| 04491 — Pad Kit, Disc Brake, Front | ||||
| 04465-B5020 |
Pad Kit, Disc Brake, Front
2011-12 → 2012-05
ended
|
S201,211 | ¥7,000 | |
| 04465-B5021 |
Pad Kit, Disc Brake, Front
2012-06 → —
|
S201,211 | ¥7,000 | |
| 31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE) | ||||
| 47548-87501 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2011-12 → —
|
S201,211 | ¥150 | |
| 47547B — Plug, Bleeder(FOR FRONT DISC BRAKE) | ||||
| 47547-87206 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2011-12 → —
|
S201,211 | ¥400 | |
| 47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90041-05176 |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2011-12 → 2014-07
ended
|
S201,211 | ¥200 | |
| 47715A — Pin, Front Disc Brake Cylinder Slide | ||||
| 47715-97501 |
Pin, Front Disc Brake Cylinder Slide
2011-12 → 2014-07
ended
|
S201,211 | ¥700 | |
| 47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90041-01362 |
Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2011-12 → 2014-07
ended
|
S201,211 | ¥590 | |
| 47715D — Pin, Front Disc Brake Cylinder Slide, NO.2 | ||||
| 47715-97204 |
Pin, Front Disc Brake Cylinder Slide, NO.2
2011-12 → 2014-07
ended
|
S201,211 | ¥590 | |
| 47730 — Cylinder Assy, Front Disc Brake, RH | ||||
| 47730-B5011 |
Cylinder Assy, Front Disc Brake, RH
2011-12 → —
|
S201,211 | ¥23,500 | |
| 47731 — Piston, Front Disc Brake | ||||
| 47731-B5010 |
Piston, Front Disc Brake
2011-12 → —
|
S201,211 | ¥3,450 | |
| 47737 — Seal, Front Disc Brake Cylinder Piston | ||||
| 47737-97202 |
Seal, Front Disc Brake Cylinder Piston
2011-12 → —
|
S201,211 | ¥530 | |
| 47746A — Pin, W/Hole(FOR DISC BRAKE PAD, FRONT) | ||||
| 90042-40149 |
Pin, W/Hole(FOR DISC BRAKE PAD, FRONT)
2011-12 → —
|
S201,211 | ¥270 | |
| 47748 — Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-87501 |
Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
2011-12 → —
|
S201,211 | ¥440 | |
| 47749 — Clip, Pin Hold | ||||
| 47749-87501 |
Clip, Pin Hold
2011-12 → 2014-07
ended
|
S201,211 | ¥500 | |
| 47750 — Cylinder Assy, Disc Brake, LH | ||||
| 47750-B5011 |
Cylinder Assy, Disc Brake, LH
2011-12 → —
|
S201,211 | ¥23,500 | |
| 47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-B5010 |
Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2011-12 → —
|
S201,211 | ¥840 | |
| 47779 — Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-87202 |
Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
2011-12 → —
|
S201,211 | ¥950 | |
| 47781 — Cover, Disc Brake Dust, Front RH | ||||
| 47781-97503 |
Cover, Disc Brake Dust, Front RH
2011-12 → —
|
S201,211 | ¥2,170 | |
| 47782 — Cover, Disc Brake Dust, Front LH | ||||
| 47781-97503 |
Cover, Disc Brake Dust, Front LH
2011-12 → —
|
S201,211 | ¥2,170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
