Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

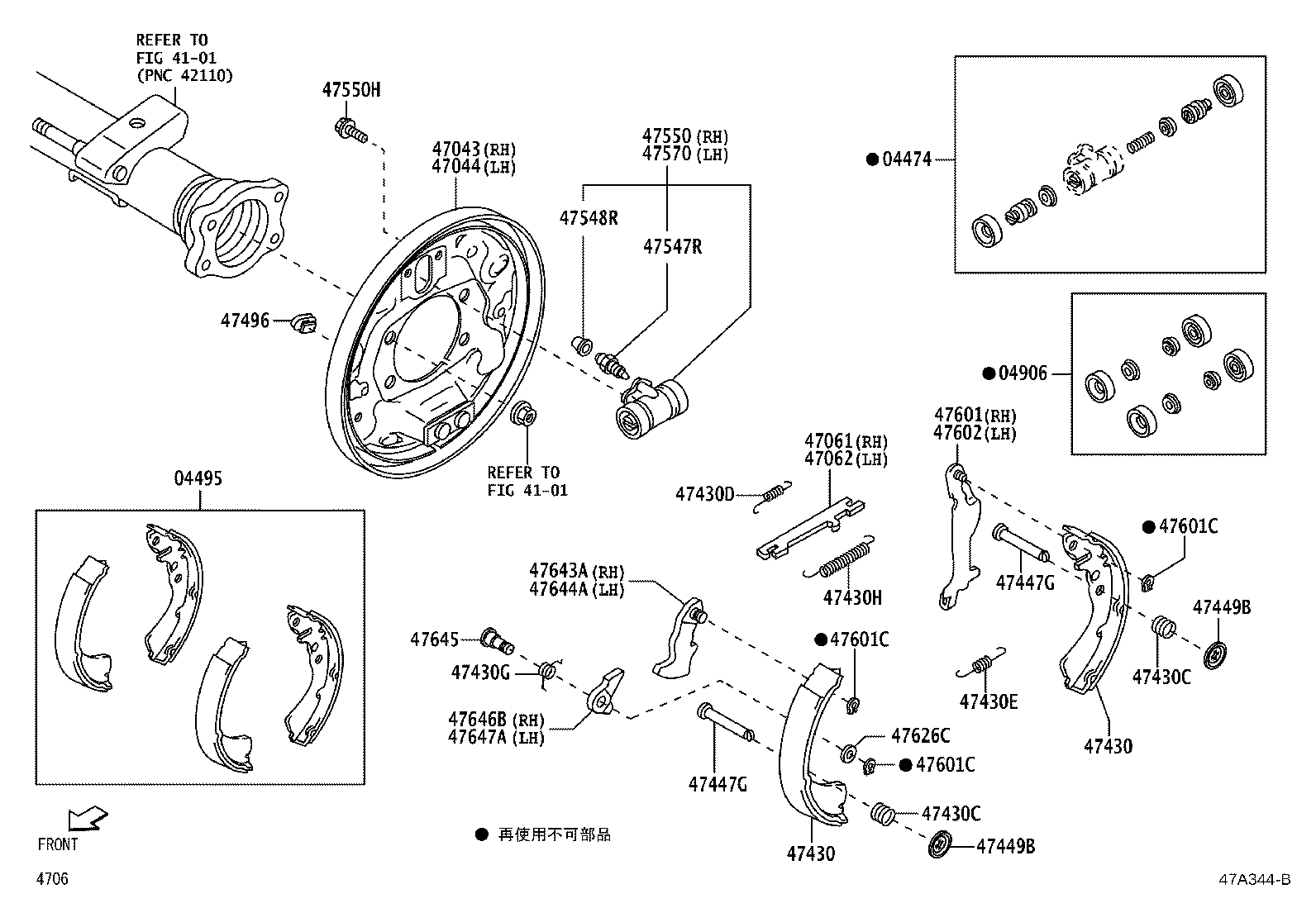

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04474 — Cylinder Kit, Rear Wheel | ||||
| 04474-B1010 note |
Cylinder Kit, Rear Wheel
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥2,170 | |
| 04474-B1010 note |
Cylinder Kit, Rear Wheel
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥2,170 | |
| 04474-B5010 |
Cylinder Kit, Rear Wheel
2011-12 → —
|
S201,211 | ¥2,170 | |
| 04495 — Shoe Kit, Rear Brake | ||||
| 04495-B5020 note |
Shoe Kit, Rear Brake
2011-12 → —
|
S201,211 | ¥3,760 | |
| 04906 — Cup Kit, Rear Wheel Cylinder | ||||
| 04906-B2010 note |
Cup Kit, Rear Wheel Cylinder
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥840 | |
| 04906-B2010 note |
Cup Kit, Rear Wheel Cylinder
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥840 | |
| 04906-B5010 |
Cup Kit, Rear Wheel Cylinder
2011-12 → —
|
S201,211 | ¥840 | |
| 47043 — Plate Sub-assy, Brake Backing, Rear RH | ||||
| 47043-97504 |
Plate Sub-assy, Brake Backing, Rear RH
2011-12 → 2014-07
ended
|
S201,211 | ¥4,180 | |
| 47044 — Plate Sub-assy, Brake Backing, Rear LH | ||||
| 47044-97504 |
Plate Sub-assy, Brake Backing, Rear LH
2011-12 → —
|
S201,211 | ¥4,180 | |
| 47061 — Strut Set, Parking Brake Shoe, RH | ||||
| 47613-87501 |
Strut Set, Parking Brake Shoe, RH
2011-12 → —
|
S201,211 | ¥1,370 | |
| 47062 — Strut Set, Parking Brake Shoe, LH | ||||
| 47613-87501 |
Strut Set, Parking Brake Shoe, LH
2011-12 → —
|
S201,211 | ¥1,370 | |
| 47430 — Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE) | ||||
| 47430-B5040 |
Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE)
2011-12 → —
|
S201,211 | ¥790 | |
| 47430C — Spring(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01854 |
Spring(FOR REAR BRAKE SHOE HOLD DOWN)
2011-12 → —
|
S201,211 | ¥160 | |
| 47430D — Spring, Tension(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06196 note |
Spring, Tension(FOR REAR BRAKE SHOE RETURN)
2011-12 → —
|
S201,211 | ¥320 | |
| 90045-06199 note |
Spring, Tension(FOR REAR BRAKE SHOE RETURN)
2011-12 → —
|
S201,211 | ¥320 | |
| 47430E — Spring, Tension(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06198 |
Spring, Tension(FOR REAR BRAKE SHOE RETURN)
2011-12 → —
|
S201,211 | ¥330 | |
| 47430G — Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90045-08361 note |
Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
2011-12 → —
|
S201,211 | ¥180 | |
| 90045-08362 note |
Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
2011-12 → —
|
S201,211 | ¥180 | |
| 47430H — Spring, Compression(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06197 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2011-12 → —
|
S201,211 | ¥560 | |
| 47447G — Pin, Shoe Hold Down Spring(FOR REAR BRAKE) | ||||
| 47447-87501 |
Pin, Shoe Hold Down Spring(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥280 | |
| 47449B — Cup, Shoe Hold Down Spring(FOR REAR BRAKE) | ||||
| 47449-97201 |
Cup, Shoe Hold Down Spring(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥150 | |
| 47496 — Plug, Hole(FOR REAR BRAKE) | ||||
| 47491-B1010 |
Plug, Hole(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥250 | |
| 47547R — Plug, Bleeder(FOR DRUM BRAKE, REAR) | ||||
| 47547-87203 |
Plug, Bleeder(FOR DRUM BRAKE, REAR)
2011-12 → —
|
S201,211 | ¥310 | |
| 47548R — Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
2011-12 → —
|
S201,211 | ¥150 | |
| 47550 — Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) | ||||
| 47550-B5010 note |
Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥6,600 | |
| 47550-B5010 note |
Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥6,600 | |
| 47550-B5020 |
Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2011-12 → —
|
S201,211 | ¥5,700 | |
| 47550H — Bolt(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 note |
Bolt(FOR REAR WHEEL CYLINDER)
2011-12 → 2014-07
ended
|
S201,211 | ¥100 | |
| 47570 — Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) | ||||
| 47560-B5010 note |
Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥5,200 | |
| 47560-B5010 note |
Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥5,200 | |
| 47560-B5020 |
Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2011-12 → —
|
S201,211 | ¥5,200 | |
| 47601 — Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) | ||||
| 47601-97501 |
Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥1,000 | |
| 47601C — Washer, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
Washer, C(FOR REAR BRAKE)
2011-12 → 2014-07
ended
|
S201,211 | ¥120 | |
| 47602 — Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) | ||||
| 47602-97501 |
Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥1,000 | |
| 47626C — Washer, Wave | ||||
| 90042-06041 |
Washer, Wave
2011-12 → 2014-07
ended
|
S201,211 | ¥90 | |
| 47643A — Lever, Rear Brake Automatic Adjust, RH | ||||
| 47608-87501 |
Lever, Rear Brake Automatic Adjust, RH
2011-12 → —
|
S201,211 | ¥750 | |
| 47644A — Lever, Rear Brake Automatic Adjust, LH | ||||
| 47609-87501 |
Lever, Rear Brake Automatic Adjust, LH
2011-12 → —
|
S201,211 | ¥750 | |
| 47645 — Pin, Automatic Adjust Lever(FOR REAR BRAKE) | ||||
| 47645-87201 |
Pin, Automatic Adjust Lever(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥170 | |
| 47646B — Latch, Automatic Adjust, RH(FOR REAR BRAKE) | ||||
| 47646-97201 |
Latch, Automatic Adjust, RH(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥490 | |
| 47647A — Latch, Automatic Adjust, LH(FOR REAR BRAKE) | ||||
| 47647-97201 |
Latch, Automatic Adjust, LH(FOR REAR BRAKE)
2011-12 → —
|
S201,211 | ¥490 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
