Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

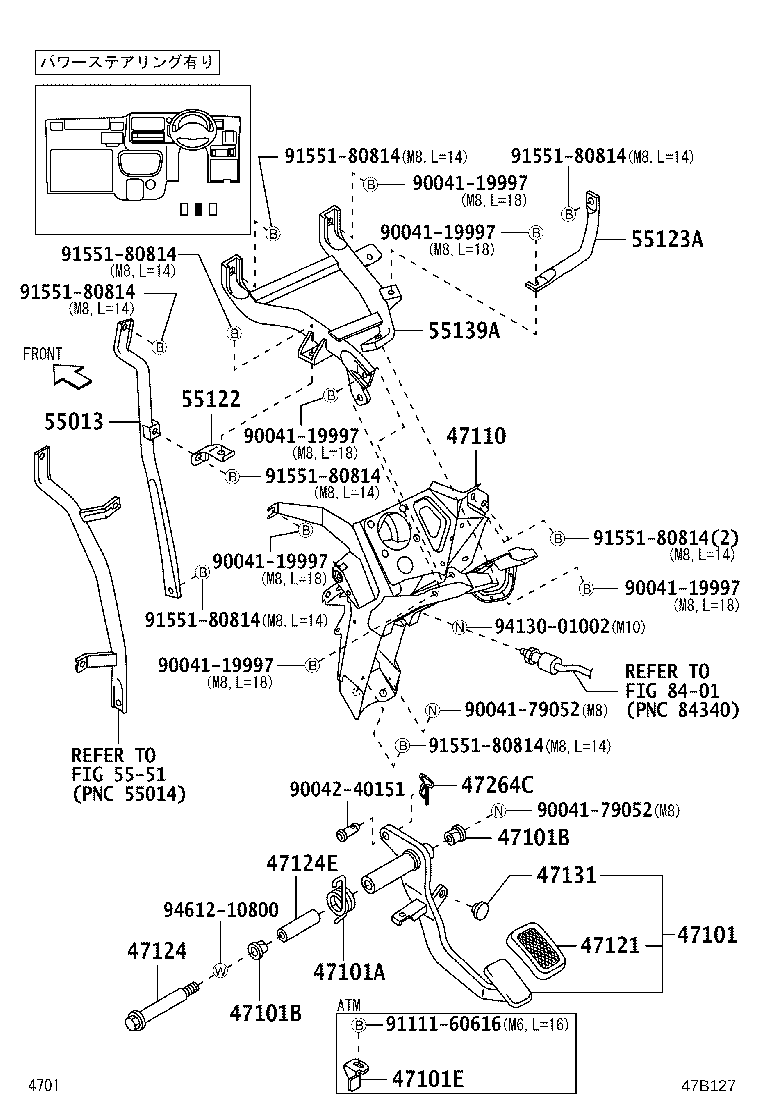

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

30 parts on this figure

Part number	Description	Fitment	Price
47101 — Pedal Sub-assy, Brake
47101-97504	Pedal Sub-assy, Brake 2011-12 → —	S201,211	¥7,700
47101A — Spring(FOR BRAKE PEDAL RETURN)
31394-97501	Spring(FOR BRAKE PEDAL RETURN) 2011-12 → 2014-07 ended	S201,211	¥470
47101B — Bush(FOR BRAKE PEDAL)
90043-86121	Bush(FOR BRAKE PEDAL) 2011-12 → —	S201,211	¥180
47101E — Stopper, Shift Lock
31322-97503 note	Stopper, Shift Lock 2011-12 → 2012-12 ended	S201 ATM SPL	¥370
31322-97503 note	Stopper, Shift Lock 2011-12 → 2012-12 ended	S201 ATM EXT	¥370
31322-97503	Stopper, Shift Lock 2011-12 → —	S201,211 ATM	¥370
31322-97503 note	Stopper, Shift Lock 2011-12 → —	S211 ATM SPL	¥370
31322-97503 note	Stopper, Shift Lock 2011-12 → —	S211 ATM EXT	¥370
47110 — Support Assy, Brake Pedal
31305-B5011	Support Assy, Brake Pedal 2011-12 → 2014-07 ended	S201,211 SPL	¥19,200
31305-B5021	Support Assy, Brake Pedal 2011-12 → 2014-07 ended	S201,211 EXT	¥19,200
31305-B5021 note	Support Assy, Brake Pedal 2011-12 → 2014-07 ended	S201,211 SPL	¥19,200
31305-B5021 note	Support Assy, Brake Pedal 2011-12 → 2014-07 ended	S201,211 SPL	¥19,200
47121 — Pad, Brake Pedal
31321-87503	Pad, Brake Pedal 2011-12 → —	S201,211	¥400
47124 — Shaft, Brake Pedal
90041-19983	Shaft, Brake Pedal 2011-12 → —	S201,211	¥620
47124E — Collar, Brake Pedal Shaft, NO.2
90045-60265	Collar, Brake Pedal Shaft, NO.2 2011-12 → —	S201,211	¥560
47131 — Cushion(FOR STOP LAMP SWITCH)
90045-40158	Cushion(FOR STOP LAMP SWITCH) 2011-12 → —	S201,211	¥100
47264C — Clip(FOR PUSH ROD CLEVIS PIN)
90044-68207	Clip(FOR PUSH ROD CLEVIS PIN) 2011-12 → —	S201,211	¥140
55013 — Stay Sub-assy, Cowl, RH
55013-B5010	Stay Sub-assy, Cowl, RH 2011-12 → —	S201,211 EXT	¥5,100
55013-B5010 note	Stay Sub-assy, Cowl, RH 2011-12 → —	S201,211 SPL	¥5,100
55013-B5010 note	Stay Sub-assy, Cowl, RH 2011-12 → —	S201,211 SPL	¥5,100
55122 — Support, Steering, NO.2
55122-B5021	Support, Steering, NO.2 2011-12 → —	S201,211 EXT	¥950
55122-B5021 note	Support, Steering, NO.2 2011-12 → —	S201,211 SPL	¥950
55122-B5021 note	Support, Steering, NO.2 2011-12 → —	S201,211 SPL	¥950
55123A — Support, Steering, NO.3
55123-97502	Support, Steering, NO.3 2011-12 → —	S201,211 EXT	¥1,640
55123-97502 note	Support, Steering, NO.3 2011-12 → —	S201,211 SPL	¥1,640
55123-97502 note	Support, Steering, NO.3 2011-12 → —	S201,211 SPL	¥1,640
55139A — Stay, Steering Column, Upper
55139-B5010	Stay, Steering Column, Upper 2011-12 → —	S201,211 SPL	¥4,180
55139-B5021	Stay, Steering Column, Upper 2011-12 → —	S201,211 EXT	¥8,400
55139-B5021 note	Stay, Steering Column, Upper 2011-12 → —	S201,211 SPL	¥8,400
55139-B5021 note	Stay, Steering Column, Upper 2011-12 → —	S201,211 SPL	¥8,400

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
