Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

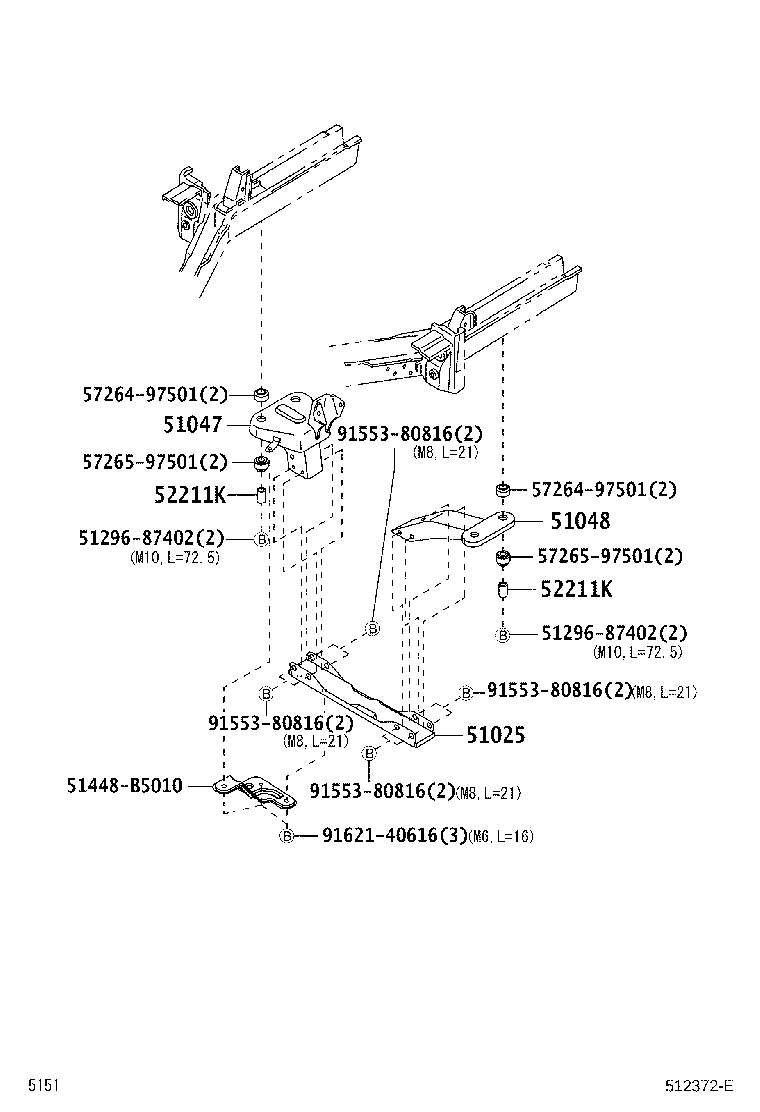

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51025 — Member Sub-assy, Engine Front Mounting | ||||
| 51204-97502 |
Member Sub-assy, Engine Front Mounting
2011-12 → 2012-10
ended
|
S201,211 | ¥6,000 | |
| 51204-B5030 |
Member Sub-assy, Engine Front Mounting
2012-11 → 2014-07
ended
|
S201,211 | ¥9,800 | |
| 51047 — Bracket Sub-assy, Engine Mounting & Upper Arm, RH | ||||
| 51047-B5020 |
Bracket Sub-assy, Engine Mounting & Upper Arm, RH
2011-12 → 2012-08
ended
|
S201,211 | ¥3,400 | |
| 51047-B5021 |
Bracket Sub-assy, Engine Mounting & Upper Arm, RH
2012-09 → 2012-10
ended
|
S201,211 | ¥3,400 | |
| 51047-B5022 |
Bracket Sub-assy, Engine Mounting & Upper Arm, RH
2012-11 → —
|
S201,211 | ¥5,800 | |
| 51048 — Bracket Sub-assy, Engine Mounting & Upper Arm, LH | ||||
| 51048-B5020 |
Bracket Sub-assy, Engine Mounting & Upper Arm, LH
2011-12 → 2012-10
ended
|
S201,211 | ¥4,700 | |
| 51048-B5021 |
Bracket Sub-assy, Engine Mounting & Upper Arm, LH
2012-11 → —
|
S201,211 | ¥8,000 | |
| 52211K — Spacer, Cab Front Mounting | ||||
| 12341-87501 |
Spacer, Cab Front Mounting
2011-12 → —
|
S201,211 | ¥150 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
