Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

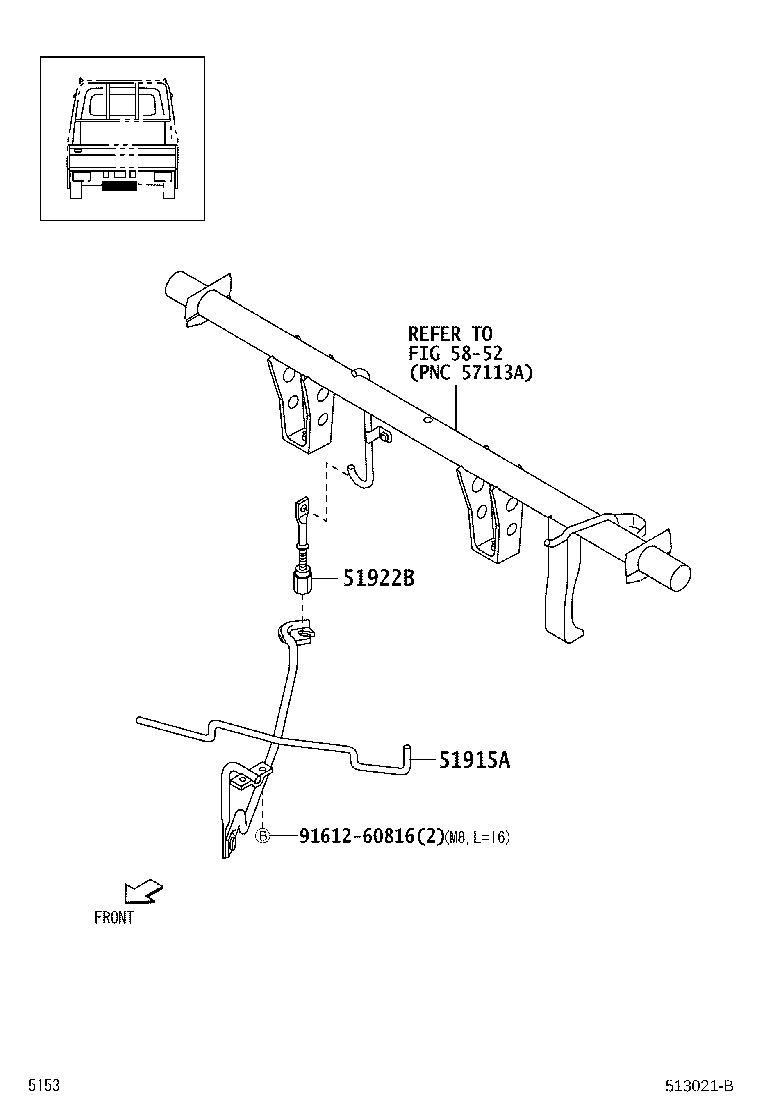

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51915A — Base, Spare Wheel Carrier | ||||
| 51905-97504 |
Base, Spare Wheel Carrier
2011-12 → —
|
S201,211 | ¥7,100 | |
| 51905-97505 note |
Base, Spare Wheel Carrier
2011-12 → —
|
S211 | ¥7,100 | |
| 51922B — Hanger, Spare Wheel Carrier | ||||
| 51902-97503 |
Hanger, Spare Wheel Carrier
2011-12 → 2012-10
ended
|
S201,211 | ¥750 | |
| 51902-B5010 |
Hanger, Spare Wheel Carrier
2012-11 → 2014-07
ended
|
S201,211 | ¥820 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
