Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

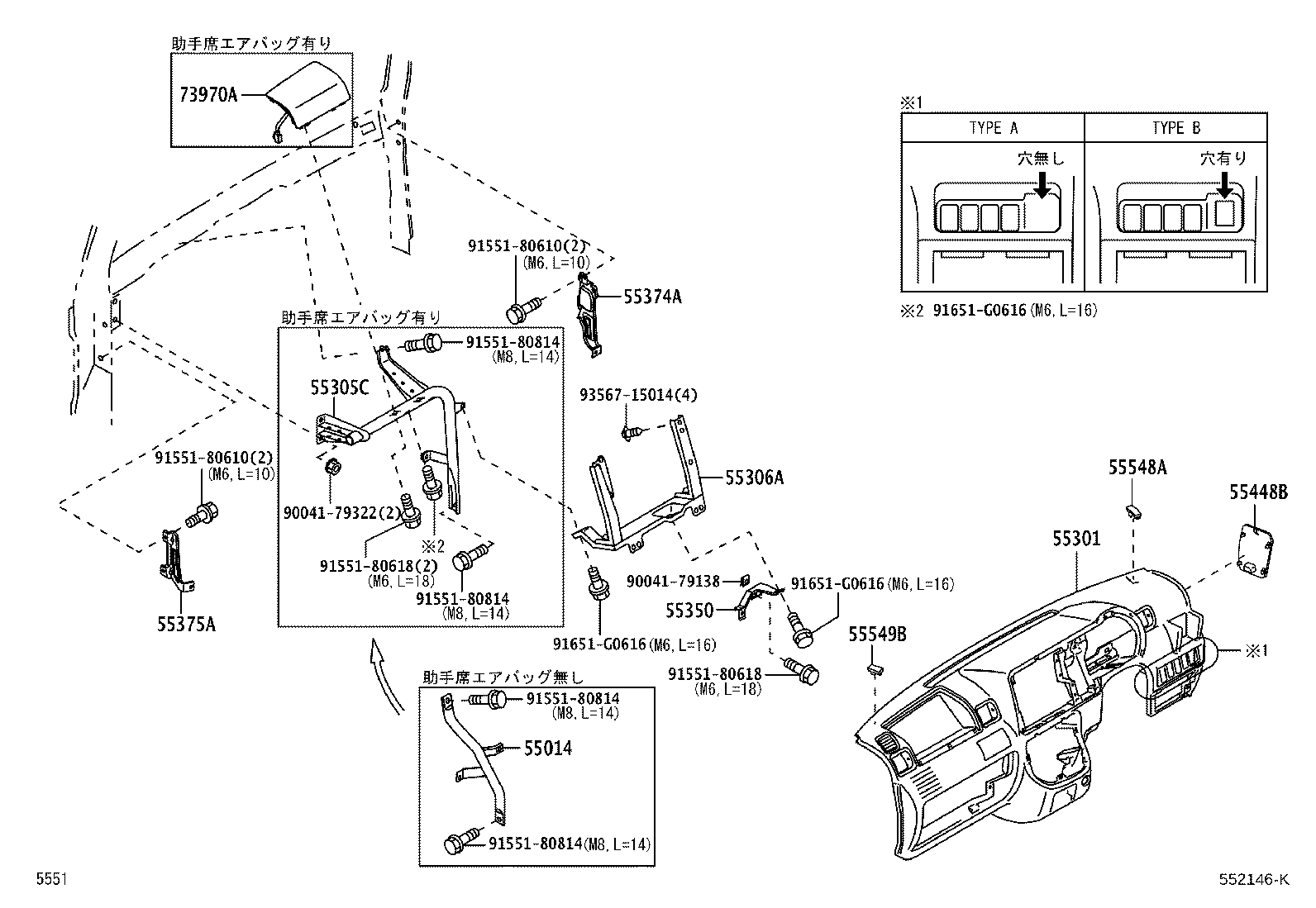

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55014 — Stay Sub-assy, Cowl, LH | ||||
| 55014-B5010 |
Stay Sub-assy, Cowl, LH
2011-12 → —
|
S201,211 | ¥5,100 | |
| GAITO-NASHI note |
Stay Sub-assy, Cowl, LH
2011-12 → 2014-07
ended
|
S201,211 SPL | — | |
| GAITO-NASHI note |
Stay Sub-assy, Cowl, LH
2011-12 → 2014-07
ended
|
S201,211 EXT | — | |
| 55301 — Panel Sub-assy, Instrument | ||||
| 55311-B5030-B0 note |
Panel Sub-assy, Instrument
2011-12 → 2014-07
ended
|
S201,211 | ¥37,000 | |
| 55311-B5040-B0 note |
Panel Sub-assy, Instrument
2011-12 → 2014-07
ended
|
S201,211 | ¥30,800 | |
| 55305C — Reinforcement Sub-assy, Instrument Panel | ||||
| 55305-B5020 note |
Reinforcement Sub-assy, Instrument Panel
2011-12 → —
|
S201,211 | ¥6,300 | |
| 55306A — Brace Sub-assy, Instrument Panel, NO.1 | ||||
| 55306-B5010 |
Brace Sub-assy, Instrument Panel, NO.1
2011-12 → —
|
S201,211 | ¥3,610 | |
| 55350 — Brace Assy, Instrument Panel | ||||
| 55351-B5040 |
Brace Assy, Instrument Panel
2011-12 → —
|
S201,211 | ¥1,710 | |
| 55351-B5040 note |
Brace Assy, Instrument Panel
2011-12 → —
|
S201,211 | ¥1,710 | |
| 55374A — Bracket, Instrument Panel Lower Mounting, RH | ||||
| 55374-B5010 |
Bracket, Instrument Panel Lower Mounting, RH
2011-12 → —
|
S201,211 | ¥1,940 | |
| 55375A — Bracket, Instrument Panel Lower Mounting, LH | ||||
| 55375-B5010 |
Bracket, Instrument Panel Lower Mounting, LH
2011-12 → —
|
S201,211 | ¥1,550 | |
| 55448B — Cover, Oil Reservoir Tank, RH | ||||
| 58106-B5020-B0 note |
Cover, Oil Reservoir Tank, RH
2011-12 → —
|
S201,211 | ¥1,220 | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-B5010-B0 note |
Cover, Instrument Panel Hole
2011-12 → —
|
S201,211 | ¥550 | |
| 55549B — Cover, Instrument Panel Hole, NO.2 | ||||
| 55549-B5010-B0 note |
Cover, Instrument Panel Hole, NO.2
2011-12 → —
|
S201,211 | ¥550 | |
| 73970A — Airbag Assy, Instrument Panel Passenger | ||||
| 73970-B5020-B0 note |
Airbag Assy, Instrument Panel Passenger
2011-12 → —
|
S201,211 | ¥79,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
