Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

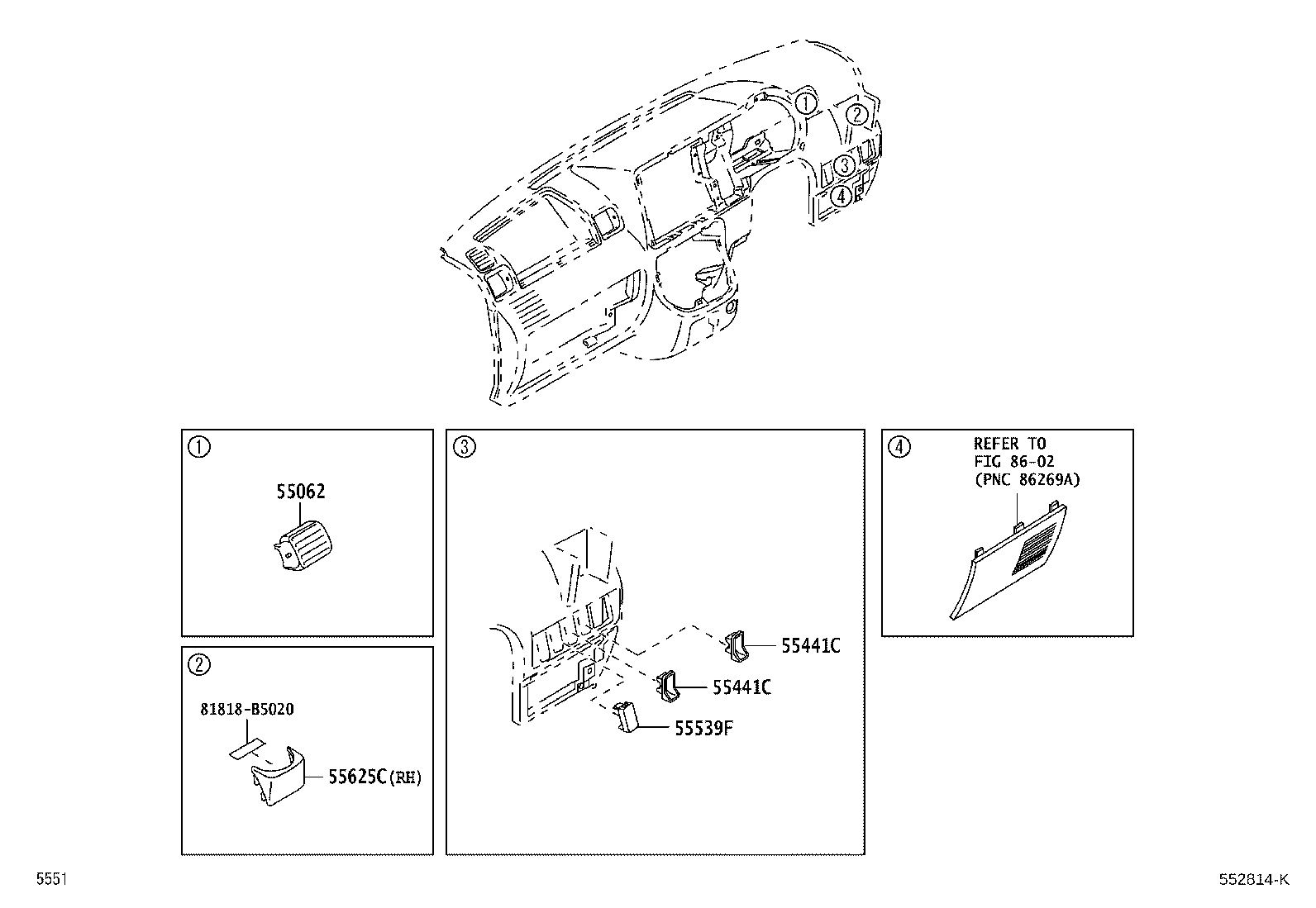

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

14 parts on this figure

Part number	Description	Fitment	Price
55062 — Register Sub-assy, Instrument Panel, N0.2
55062-87203-B0 note	Register Sub-assy, Instrument Panel, N0.2 2011-12 → —	S201,211	¥1,520
55441C — Box, Instrument Panel Coin
55441-B2020 note	Box, Instrument Panel Coin 2011-12 → 2013-04 ended	S201,211 SPL	¥2,120
55441-B2020	Box, Instrument Panel Coin 2011-12 → —	S201 EXT;S211 ATM EXT	¥2,120
55441-B2020 note	Box, Instrument Panel Coin 2011-12 → —	S201,211 MTM SPL	¥2,120
55441-B2020 note	Box, Instrument Panel Coin 2011-12 → —	S201 MTM EXT	¥2,120
55441-B2020	Box, Instrument Panel Coin 2011-12 → —	S201,211 SPL	¥2,120
55441-B2020 note	Box, Instrument Panel Coin 2011-12 → —	S201,211 MTM SPL	¥2,120
55441-B2020 note	Box, Instrument Panel Coin 2011-12 → —	S211 MTM SPL	¥2,120
55441-B2020 note	Box, Instrument Panel Coin 2013-04 → —	S211 MTM SPL	¥2,120
55539F — Cover, Spare Switch Hole
55539-B2010-B0 note	Cover, Spare Switch Hole 2012-03 → —	S201,211	¥220
55539-B2020-C0 note	Cover, Spare Switch Hole 2011-12 → 2012-02 ended	S201,211	¥210
55625C — Tray, Instrument Panel Cup Holder
55625-B5031-B0 note	Tray, Instrument Panel Cup Holder 2011-12 → —	S201,211	¥1,330
55625-B5040-B0 note	Tray, Instrument Panel Cup Holder 2011-12 → —	S201,211	¥3,040
GAITO-NASHI note	Tray, Instrument Panel Cup Holder 2011-12 → 2014-07 ended	S201,211	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
