Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

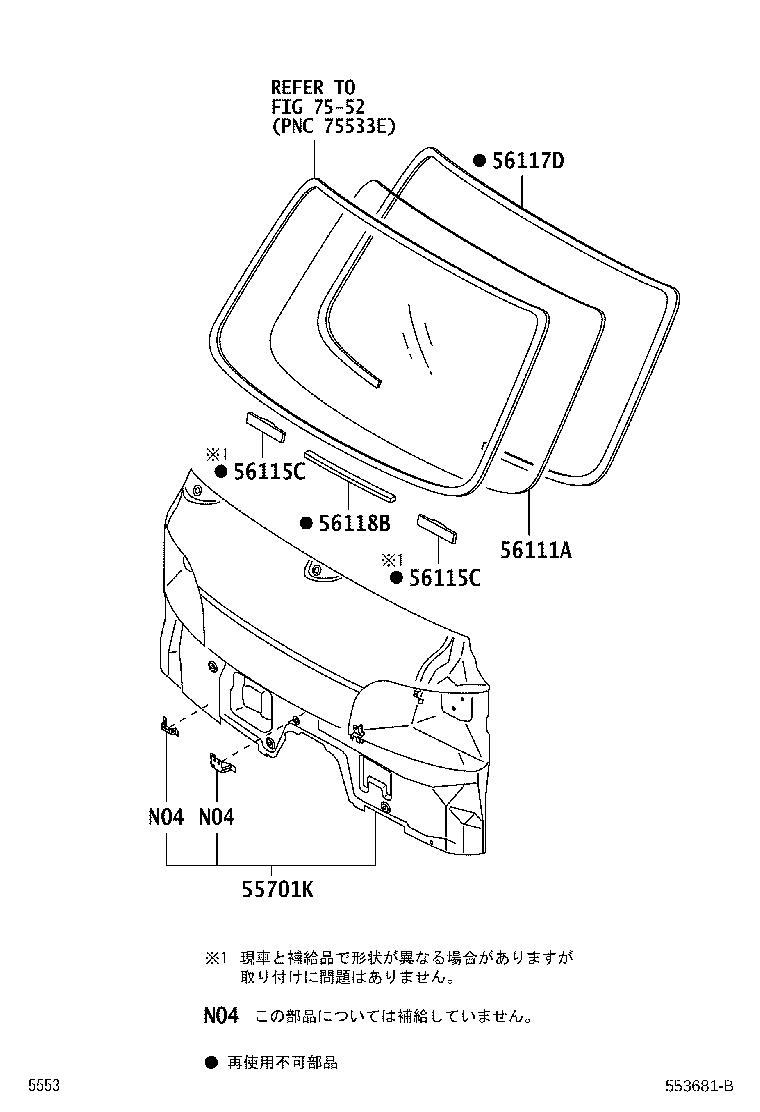

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55701K — Panel Sub-assy, Front | ||||
| 55701-B5030 |
Panel Sub-assy, Front
2011-12 → 2014-07
ended
|
S201,211 SPL | ¥57,400 | |
| 55701-B5050 |
Panel Sub-assy, Front
2011-12 → 2014-07
ended
|
S201,211 EXT | ¥57,400 | |
| 56111A — Glass, Windshield | ||||
| 56111-B5020 note |
Glass, Windshield
2011-12 → —
|
S201,211 | ¥80,400 | |
| 56115C — Stopper, Windshield Glass | ||||
| 56115-87401 |
Stopper, Windshield Glass
2011-12 → —
|
S201,211 | ¥330 | |
| 56117D — Dam, Windshield Glass Adhesive | ||||
| 56117-97401 note |
Dam, Windshield Glass Adhesive
2011-12 → —
|
S201,211 | ¥1,740 | |
| 56118B — Dam, Window Glass Adhesive, NO.2 | ||||
| 56117-B5090 note |
Dam, Window Glass Adhesive, NO.2
2011-12 → 2014-07
ended
|
S201,211 | ¥600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
