Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

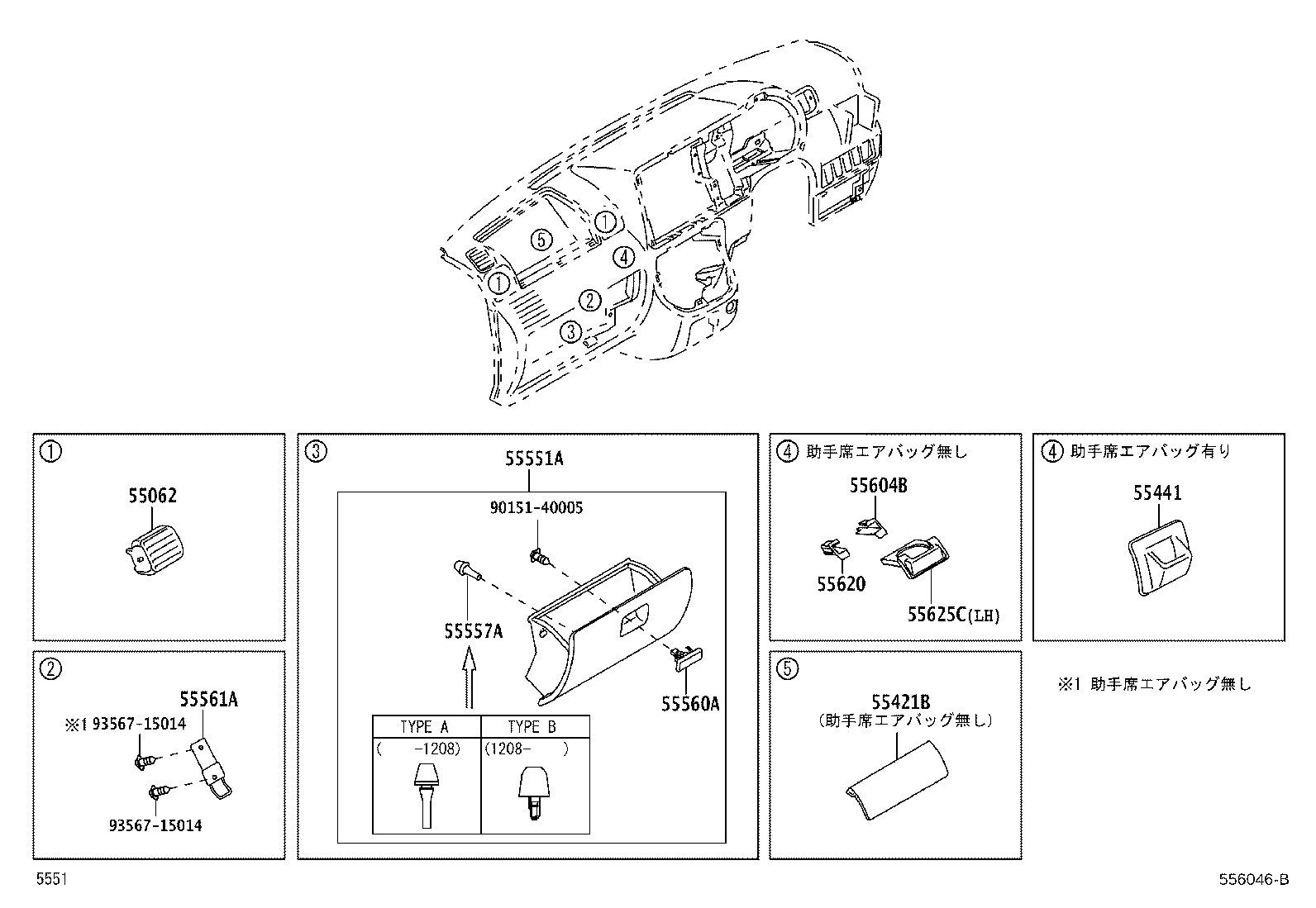

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55062 — Register Sub-assy, Instrument Panel, N0.2 | ||||
| 55062-87203-B0 note |
Register Sub-assy, Instrument Panel, N0.2
2011-12 → —
|
S201,211 | ¥1,520 | |
| 55421B — Panel, Instrument Cluster Finish, Upper | ||||
| 55421-B5020-B0 note |
Panel, Instrument Cluster Finish, Upper
2011-12 → —
|
S201,211 | ¥3,820 | |
| GAITO-NASHI note |
Panel, Instrument Cluster Finish, Upper
2011-12 → 2014-07
ended
|
S201,211 | — | |
| 55441 — Box, Instrument Panel | ||||
| 55441-B5010-B0 note |
Box, Instrument Panel
2011-12 → —
|
S201,211 | ¥2,120 | |
| 55551A — Door, Glove Compartment, Outer | ||||
| 55550-B5010-B0 note |
Door, Glove Compartment, Outer
2011-12 → —
|
S201,211 | ¥7,600 | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-B2010 note |
Cushion, Glove Compartment Door Check
2011-12 → 2012-08
ended
|
S201,211 | ¥180 | |
| 55557-B2040 note |
Cushion, Glove Compartment Door Check
2012-08 → —
|
S201,211 | ¥130 | |
| 55560A — Lock Assy, Glove Compartment Door | ||||
| 55560-B2020-B0 note |
Lock Assy, Glove Compartment Door
2011-12 → —
|
S201,211 | ¥1,040 | |
| 55561A — Striker, Glove Compartment Door Lock | ||||
| 55561-B5020 |
Striker, Glove Compartment Door Lock
2011-12 → —
|
S201,211 | ¥620 | |
| 55561-B5030 note |
Striker, Glove Compartment Door Lock
2011-12 → —
|
S201,211 | ¥620 | |
| 55604B — Holder Sub-assy, Instrument Panel Cup | ||||
| 55618-B5020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2011-12 → —
|
S201,211 | ¥1,040 | |
| GAITO-NASHI note |
Holder Sub-assy, Instrument Panel Cup
2011-12 → 2014-07
ended
|
S201,211 | — | |
| 55620 — Holder Assy, Instrument Panel Cup | ||||
| 55619-B5020-B0 note |
Holder Assy, Instrument Panel Cup
2011-12 → —
|
S201,211 | ¥1,040 | |
| GAITO-NASHI note |
Holder Assy, Instrument Panel Cup
2011-12 → 2014-07
ended
|
S201,211 | — | |
| 55625C — Tray, Instrument Panel Cup Holder | ||||
| 55625-B5031-B0 note |
Tray, Instrument Panel Cup Holder
2011-12 → —
|
S201,211 | ¥1,330 | |
| 55625-B5040-B0 note |
Tray, Instrument Panel Cup Holder
2011-12 → —
|
S201,211 | ¥3,040 | |
| GAITO-NASHI note |
Tray, Instrument Panel Cup Holder
2011-12 → 2014-07
ended
|
S201,211 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
