Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

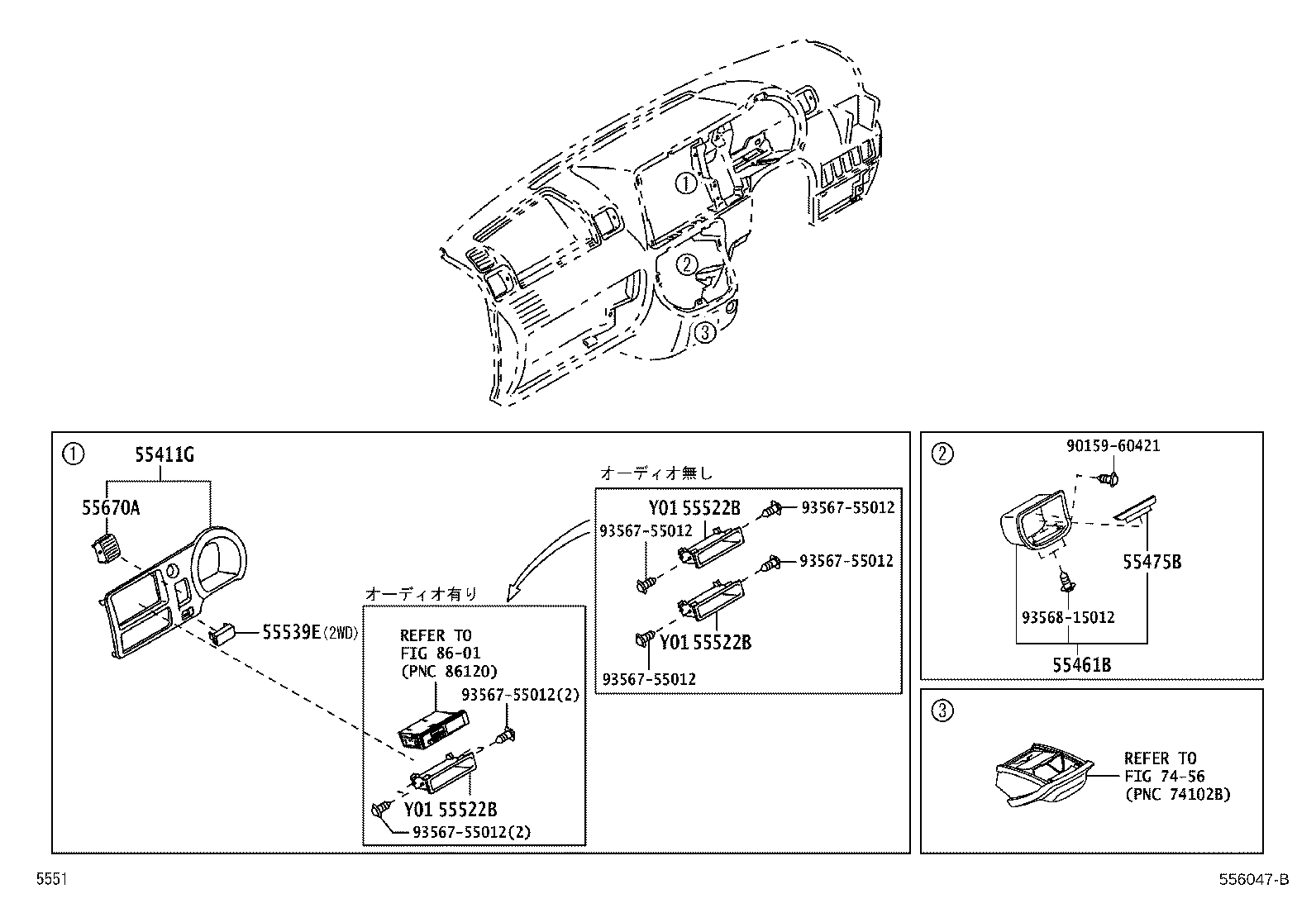

9 parts on this figure

Part number	Description	Fitment	Price
55411G — Panel, Instrument Cluster Finish, NO.1
55404-B5010-C1 note	Panel, Instrument Cluster Finish, NO.1 2011-12 → —	S201,211	¥6,400
55461B — Box, Instrument Panel, Center
55461-B5010-C0 note	Box, Instrument Panel, Center 2011-12 → —	S201,211	¥4,900
55475B — Garnish, Instrument Cluster Finish Panel, Center
55475-B5010-C0 note	Garnish, Instrument Cluster Finish Panel, Center 2011-12 → —	S201,211	¥630
55522B — Cover, Radio Tuner Opening
55522-87209	Cover, Radio Tuner Opening 2011-12 → —	S201,211	¥2,120
55522-87209 note	Cover, Radio Tuner Opening 2011-12 → —	S201,211 SPL	¥2,120
55522-87209 note	Cover, Radio Tuner Opening 2011-12 → —	S201,211 EXT	¥2,120
55539E — Cover, Spare Switch Hole
55539-B2010-B0 note	Cover, Spare Switch Hole 2012-03 → —	S201	¥220
55539-B2020-C0 note	Cover, Spare Switch Hole 2011-12 → 2012-02 ended	S201	¥210
55670A — Register Assy, Instrument Panel, Center
55670-B5020-C0 note	Register Assy, Instrument Panel, Center 2011-12 → —	S201,211	¥1,700

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
