Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

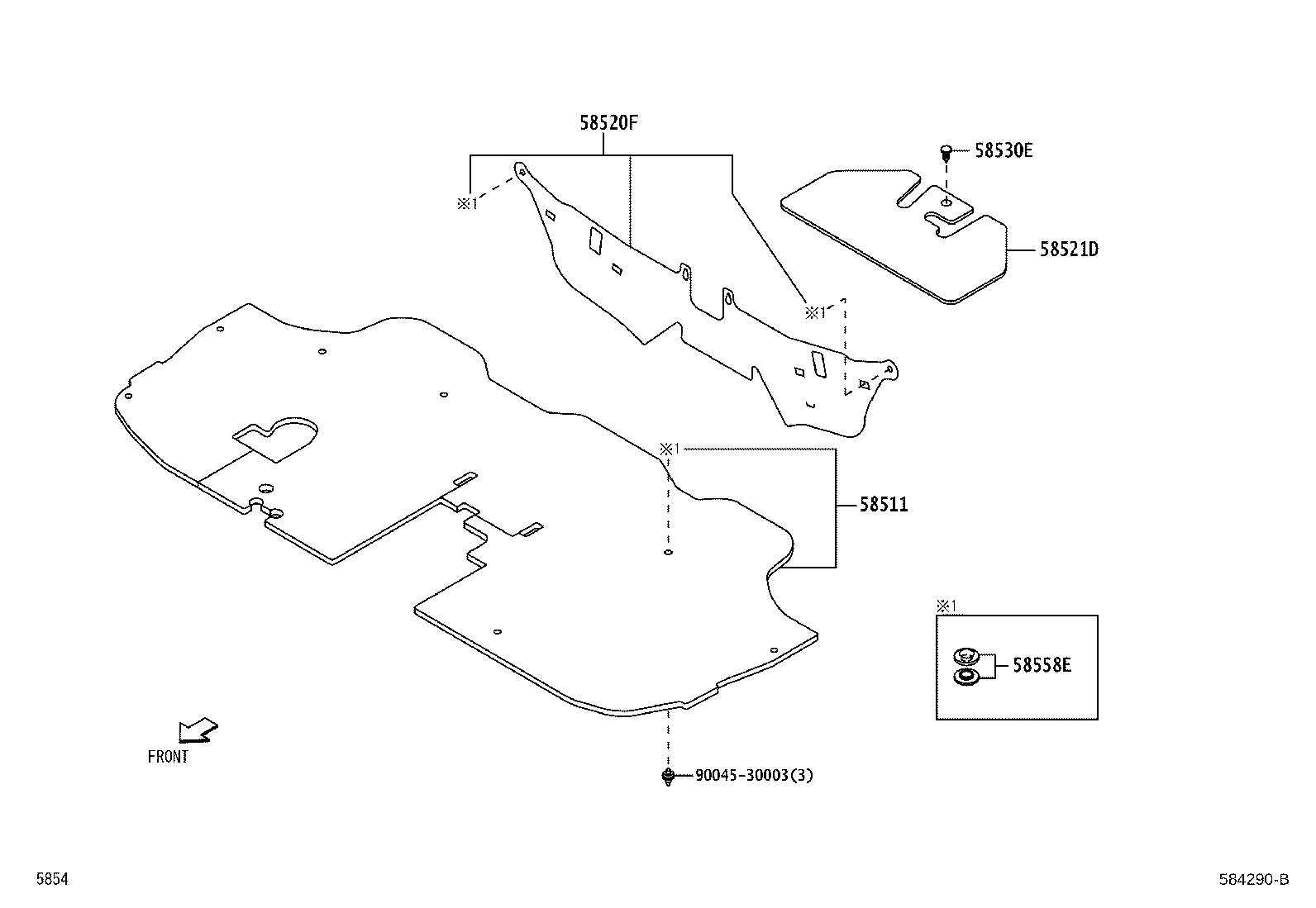

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

8 parts on this figure

Part number	Description	Fitment	Price
58511 — Mat, Floor, Front
58510-B5010-B1 note	Mat, Floor, Front 2011-12 → —	S201,211 SPL	¥6,800
58510-B5030-B1 note	Mat, Floor, Front 2011-12 → —	S201,211 EXT	¥6,800
58510-B5030-B1 note	Mat, Floor, Front 2011-12 → —	S201,211 SPL	¥6,800
58520F — Mat Assy, Engine Cover
58520-B5020-B1 note	Mat Assy, Engine Cover 2011-12 → 2014-07 ended	S201 EXT;S211 ATM;S201 ATM +3	¥3,660
58521D — Mat, Engine Service Hole Cover
58521-B5190-B0 note	Mat, Engine Service Hole Cover 2011-12 → —	S201,211	¥220
58530E — Clip(FOR FRONT FLOOR REAR CARPET)
90044-68028-B1 note	Clip(FOR FRONT FLOOR REAR CARPET) 2011-12 → —	S201,211	¥120
58558E — Fastener, Pile
58558-87501-B0 note	Fastener, Pile 2011-12 → —	S201,211 MTM SPL	¥120
58558-87501-B0 note	Fastener, Pile 2011-12 → —	S201 EXT;S211 ATM;S201 ATM +3	¥120

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
