Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

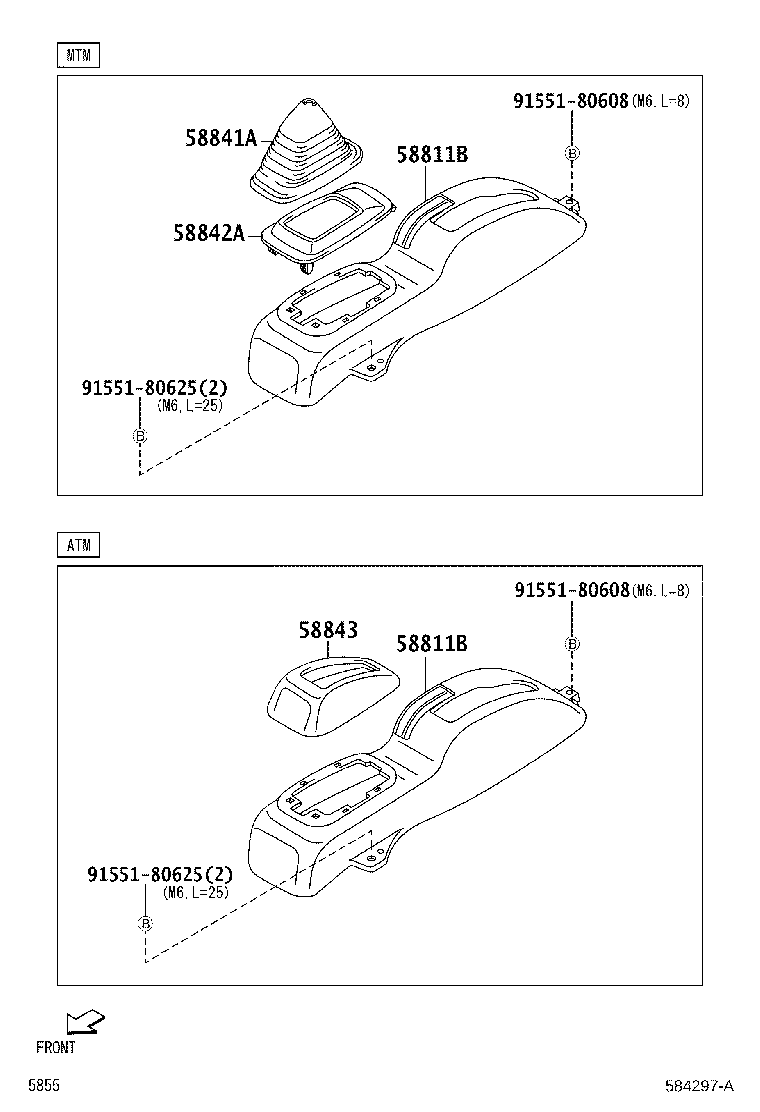

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58811B — Box, Console | ||||
| 58811-B5020-B0 note |
Box, Console
2011-12 → —
|
S201;S211 ATM;S211 MTM SPL | ¥5,500 | |
| 58811-B5030-B0 note |
Box, Console
2011-12 → —
|
S211 MTM EXT | ¥5,500 | |
| 58811-B5030-B0 note |
Box, Console
2011-12 → —
|
S211 MTM SPL | ¥5,500 | |
| 58841A — Cover, Shifting Hole | ||||
| 58841-87504-B0 note |
Cover, Shifting Hole
2011-12 → —
|
S201,211 MTM | ¥1,650 | |
| 58842A — Frame, Shifting Hole | ||||
| 58842-87503 |
Frame, Shifting Hole
2011-12 → —
|
S201,211 MTM | ¥530 | |
| 58843 — Bezel, Shifting Hole | ||||
| 58843-87501-B0 note |
Bezel, Shifting Hole
2011-12 → —
|
S201,211 ATM | ¥2,050 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
