Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

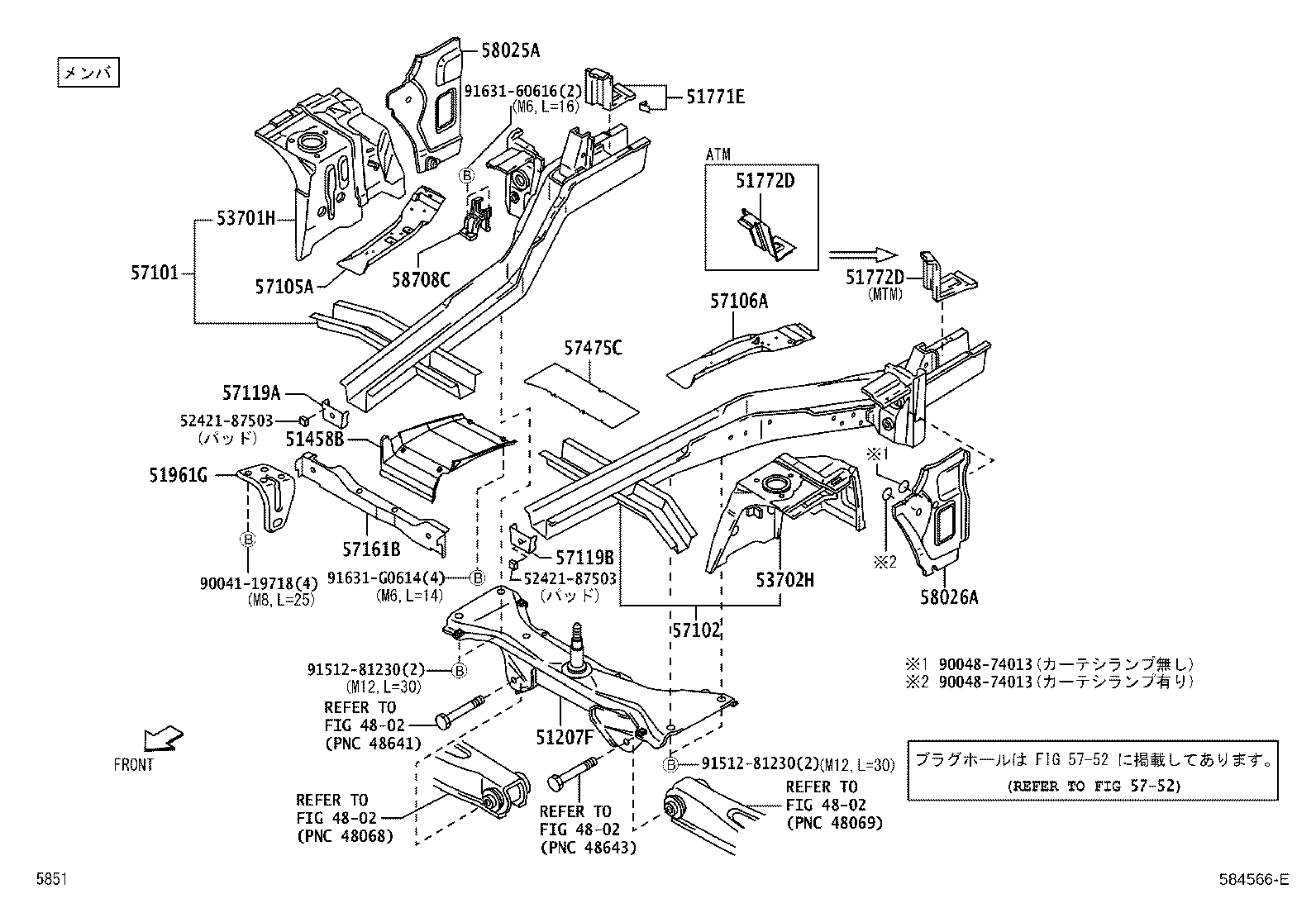

32 parts on this figure

Part number	Description	Fitment	Price
51207F — Crossmember Sub-assy, Frame, FR Lwr NO.1
51207-B5011	Crossmember Sub-assy, Frame, FR Lwr NO.1 2011-12 → 2012-10 ended	S201,211	¥17,800
51207-B5012	Crossmember Sub-assy, Frame, FR Lwr NO.1 2012-11 → 2014-07 ended	S201,211	¥28,500
51458B — Plate, Wind Guide
51458-97501	Plate, Wind Guide 2011-12 → 2012-05 ended	S201 EXT;S211 ATM;S201 ATM +3	¥3,610
51458-97501 note	Plate, Wind Guide 2011-12 → 2012-05 ended	S201,211 MTM SPL	¥3,610
51458-97501 note	Plate, Wind Guide 2011-12 → 2012-05 ended	S201,211 MTM SPL	¥3,610
51458-B5040 note	Plate, Wind Guide 2012-06 → 2013-04 ended	S201,211 MTM SPL	¥5,900
51458-B5040	Plate, Wind Guide 2012-06 → 2014-07 ended	S201 EXT;S211 ATM;S201 ATM +3	¥5,900
51458-B5040 note	Plate, Wind Guide 2012-06 → 2014-07 ended	S201,211 MTM SPL	¥5,900
51771E — Plate, Step, RH
51701-97501	Plate, Step, RH 2011-12 → 2012-08 ended	S201,211	¥1,030
51701-B5010	Plate, Step, RH 2012-09 → 2014-07 ended	S201,211	¥1,660
51772D — Plate, Step, LH
51702-97501	Plate, Step, LH 2011-12 → 2012-08 ended	S201,211 MTM	¥1,100
51702-B5010	Plate, Step, LH 2012-09 → —	S201,211 MTM	¥1,480
51718-97501	Plate, Step, LH 2011-12 → 2012-09 ended	S201,211 ATM	¥1,260
51718-97501	Plate, Step, LH 2012-10 → —	S201,211 ATM	¥1,260
51961G — Hook, Front RH
51961-97502	Hook, Front RH 2011-12 → —	S201,211	¥6,100
53701H — Apron Sub-assy, Front Fender, RH
53701-97504	Apron Sub-assy, Front Fender, RH 2011-12 → 2014-07 ended	S201,211	¥13,200
53702H — Apron Sub-assy, Fender, LH
53702-97504	Apron Sub-assy, Fender, LH 2011-12 → 2014-07 ended	S201,211	¥11,000
57101 — Member Sub-assy, Front Side, RH
57101-B5120	Member Sub-assy, Front Side, RH 2011-12 → 2014-07 ended	S201,211	¥55,400
57102 — Member Sub-assy, Front Side, LH
57102-B5060	Member Sub-assy, Front Side, LH 2011-12 → 2014-07 ended	S201,211	¥55,400
57105A — Plate Sub-assy, Front Side Member, RH
57105-97502 note	Plate Sub-assy, Front Side Member, RH 2011-12 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥4,280
57105-97502 note	Plate Sub-assy, Front Side Member, RH 2011-12 → —	S201 MTM;S211 ATM;S211 MTM +1	¥4,280
57113-97502	Plate Sub-assy, Front Side Member, RH 2011-12 → —	S201,211	¥5,200
57106A — Plate Sub-assy, Front Side Member, LH
57106-97502	Plate Sub-assy, Front Side Member, LH 2011-12 → 2012-08 ended	S201,211	¥3,150
57106-B5040	Plate Sub-assy, Front Side Member, LH 2012-09 → —	S201,211	¥5,200
57119A — Plate, Front Side Member, Front RH
57119-97502	Plate, Front Side Member, Front RH 2011-12 → —	S201,211	¥1,480
57119B — Plate, Front Side Member, Front LH
57119-97502	Plate, Front Side Member, Front LH 2011-12 → —	S201,211	¥1,480
57161B — Member, Front Cross, Front
57161-B5020	Member, Front Cross, Front 2011-12 → 2012-08 ended	S201,211	¥2,120
57161-B5021	Member, Front Cross, Front 2012-09 → —	S201,211	¥3,560
57475C — Plate, Front Floor Crossmember
57475-97502	Plate, Front Floor Crossmember 2011-12 → —	S201,211	¥3,400
58025A — Panel Sub-assy, Floor Side Rail, FR RH
61507-B5011	Panel Sub-assy, Floor Side Rail, FR RH 2011-12 → —	S201,211	¥6,100
58026A — Panel Sub-assy, Floor Side Rail, FR LH
61508-B5011	Panel Sub-assy, Floor Side Rail, FR LH 2011-12 → —	S201,211	¥6,100
58708C — Support Sub-assy, Jack
58708-87504	Support Sub-assy, Jack 2011-12 → —	S201,211	¥2,580

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
